卡特零件查询（735） 165-0234: AFTERCOOLER GP-AIR
广数供应链运营团队, 15 02月, 2025，浏览：
807 次

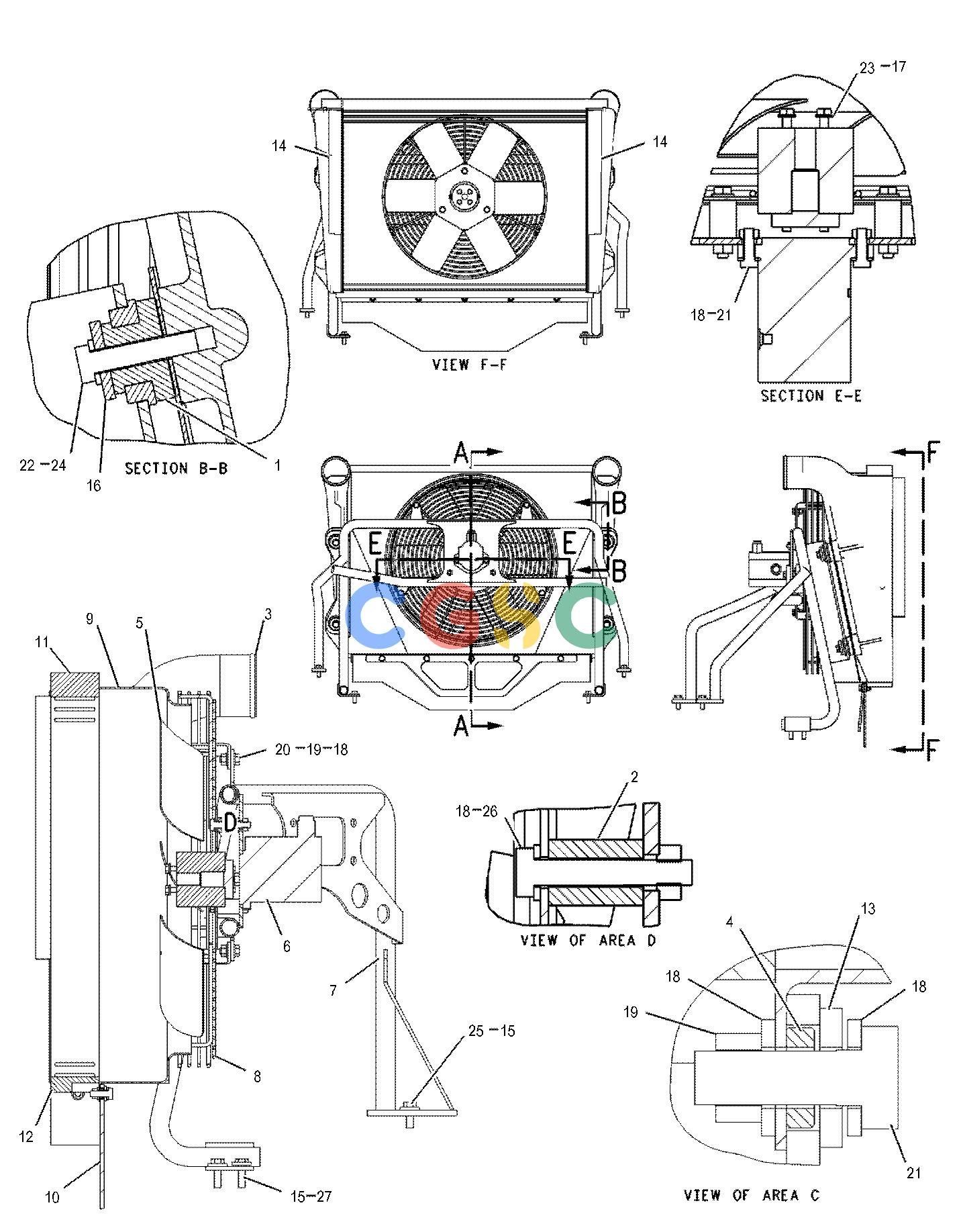

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7T-8331 | [4] | MOUNT AS | |
| 2. | 125-7484 | [3] | SPACER(11X25X36-MM THK) | |
| 3. | 188-3471 | [1] | AFTERCOOLER AS | |
| 4. | 188-4921 | [5] | SPACER(11X18X5-MM THK) | |
| 5. | 190-7618 | [1] | SPIDER AS-FAN(6-BLADE) | |
| 6. | 206-2543Y | [1] | MOTOR GP-GEAR(AIR-TO-AIR AFTERCOOLER) | |
| 7. | 214-7409 | [1] | SUPPORT AS | |
| 8. | 191-8163 | [1] | GUARD AS-FAN | |
| 9. | 191-8164 | [1] | SHROUD-FAN | |
| 10. | 209-3526 | [1] | BAFFLE | |
| 11. | 191-8166 | [1] | STRIP-FOAM | |
| 12. | 191-8167 | [1] | STRIP-FOAM | |
| 13. | 217-5994 | [1] | PLATE | |
| 14. | 206-9381 | [2] | STRIP-FOAM | |
| 15. | 7D-1649 | [6] | WASHER-HARD(13.5X32X5-MM THK) | |
| 16. | 7X-0590 | [4] | WASHER-HARD(13.5X44.5X6-MM THK) | |
| 17. | 7X-2539M | [4] | BOLT(M8X1.25X110-MM) | |
| 18. | 8T-4121 | [27] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4133M | [11] | NUT(M10X1.5-THD) | |
| 20. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 21. | 8T-4195M | [9] | BOLT(M10X1.5X30-MM) | |
| 22. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| 25. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 26. | 8T-6466M | [3] | BOLT(M10X1.5X60-MM) | |
| 27. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
