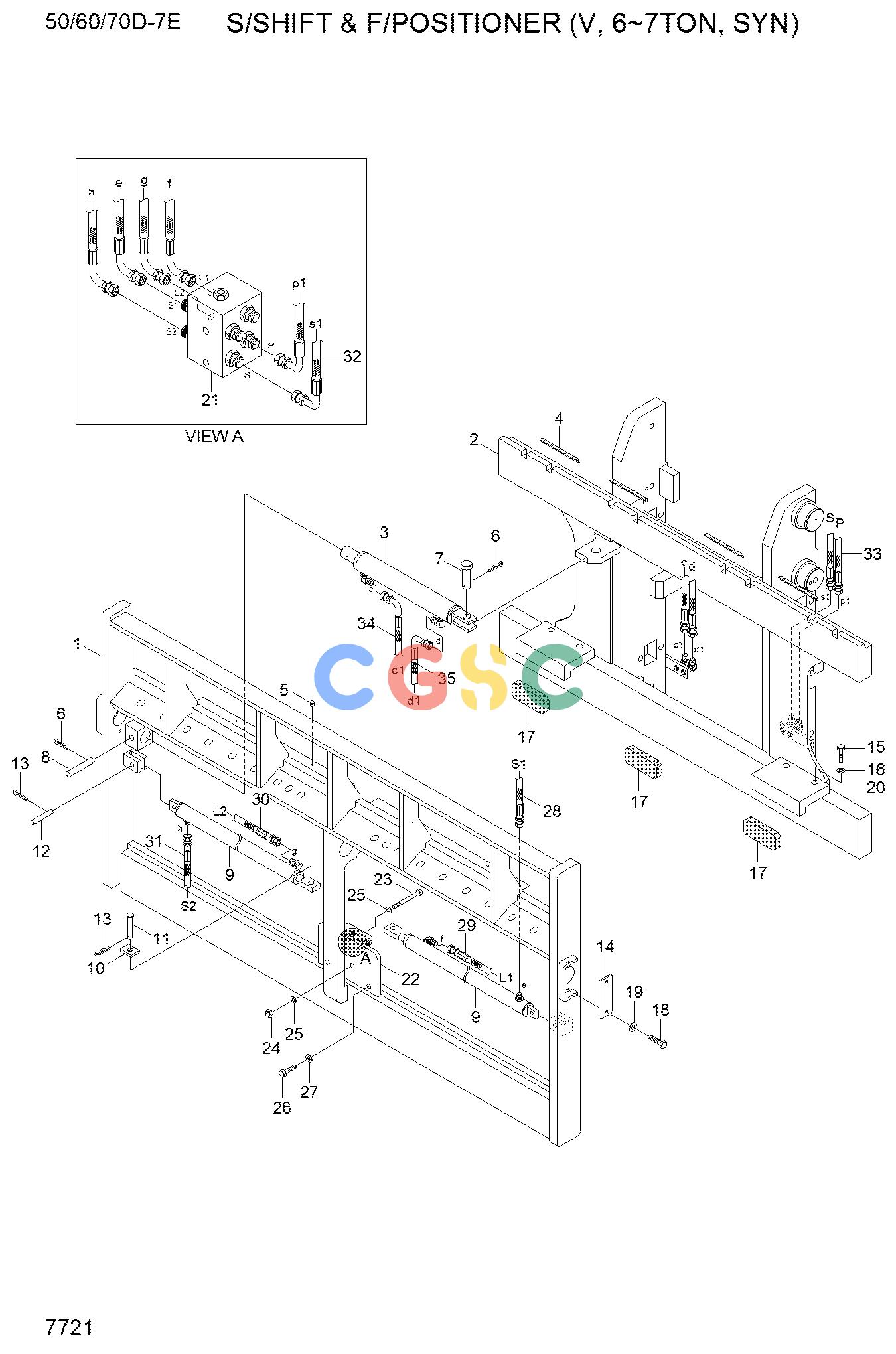

现代零件查询50/60/70D-7A S/SHIFT & F/POSITION (V, 6/7TON, SYN)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
67FQ-50110
|
[1] |
INT S/SHIFT & F-POSITION
|
|
| . |
67FQ-50120
|
[1] |
INTEGRAL S/SHIFT WITH F-P
|
|
| N1. |
67FQ-10200
|
[1] |
CARRIAGE WA
|
|
| N1. |
67FQ-10210
|
[1] |
CARRIAGE WA
|
|
| N2. |
ITSS-S7B2-0200
|
[1] |
SIDE SHIFT WA
|
|
| 3. |
SS-1990D4-0300
|
[1] |
CYLINDER ASSY-S/SHIFT
|
|
| 4. |
SS-D4-0107P
|
[4] |
SLIDING PAD-UPPER
|
|
| 5. |
JKGN-0000
|
[4] |
GREASE NIPPLE
|
|
| 6. |
JKRP-0013
|
[2] |
R-PIN
|
|
| 7. |
JKSS-D4-0301P
|
[1] |
PIN-CYLINDER BASE
|
|
| 8. |
JKSS-D4-0302P
|
[1] |
PIN-CYLINDER ROD
|
|
| 9. |
JKSS5-011-Z00
|
[2] |
CYLINDER-F/POSITIONER
|
|
| 9. |
JKSS5-015-Z00
|
[2] |
CYLINDER-F/POSITIONER
|
|
| 10. |
68FQ-70210
|
[2] |
BRACKET-CYLINDER ROD
|
|
| 11. |
66FQ-00440
|
[2] |
PIN ROD
|
|
| 12. |
FP5-0701-012
|
[2] |
PIN-CYLINDER BASE
|
|
| 13. |
66FQ-00430
|
[4] |
R-PIN
|
|
| 14. |
FP5-0701-103
|
[2] |
COVER
|
|
| 15. |
JKHB-H-2070
|
[4] |
BOLT-HEX
|
|
| 16. |
JKSW-H-0020
|
[4] |
SPRING WASHER
|
|
| 17. |
ITSS-S57B-0105
|
[3] |
SLIDING PAD
|
|
| 18. |
JKHB-H-1655
|
[4] |
BOLT-HEX
|
|
| 19. |
JKSW-H-0016
|
[4] |
WASHER-SPRING
|
|
| 20. |
ITSS-S57B-0204
|
[2] |
HOOK-LOWER
|
|
| 21. |
DV-FP01-0001
|
[1] |
FLOW DIVIDER
|
|
| 22. |
ITSS-S57B-0106
|
[1] |
PLATE
|
|
| 23. |
JKWB-H-0890
|
[2] |
BOLT-WRENCH
|
|
| 24. |
JKHN-H-0008
|
[2] |
NUT-HEX
|
|
| 25. |
JKSW-H-0008
|
[4] |
SPRING WASHER
|
|
| 26. |
JKWB-H-1030
|
[2] |
BOLT-WRENCH
|
|
| 27. |
JKSW-H-0010
|
[2] |
SPRING WASHER
|
|
| 28. |
P933-064023
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 29. |
P933-064008
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 30. |
P933-064010
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 31. |
P933-064019
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 32. |
P933-064012
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 33. |
P933-064012
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 34. |
P933-064018
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 35. |
P933-064011
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
