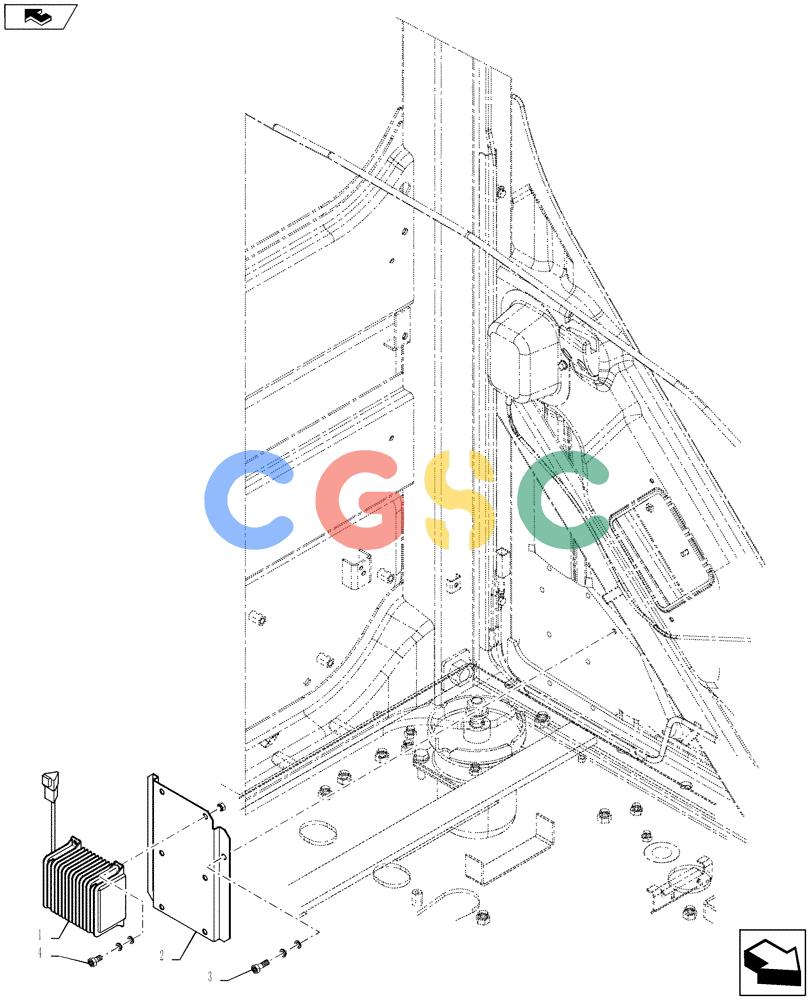

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (55.510.BL) - CONVERTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84130880 | [1] | VOLTAGE REGULATOR | SM(YN77S00036P1) (With 3 pin Connector on Pigtail) |
| 2. | LB22E01004P1 | [1] | BRACKET | SM |
| 3. | 72209121 | [2] | SCREW | IMO(ZM61C01016) Superseded by part number: ZM66C06016 |
| 4. | 72952742 | [4] | BOLT | IMO(ZM61C05012) Superseded by part number: ZM61C05012 |
| . . | YN77S00040P1 | [1] | CONVERTER | KOB(Not Shown - Used with Rear View Camera) |
