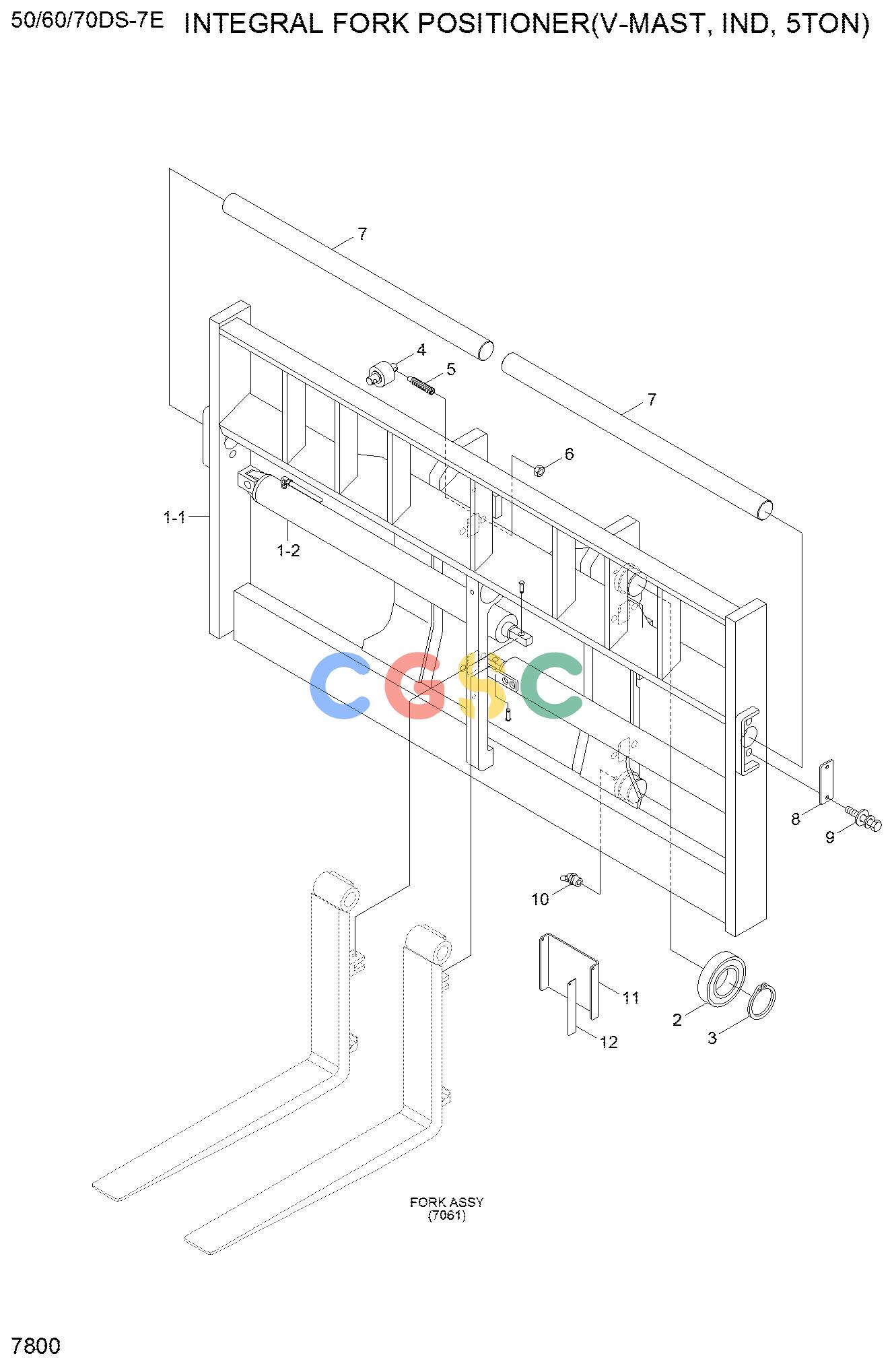

现代零件查询50/60/70D-7A INTEGRAL F/POSITIONER(V-MAST,IND,5TON)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
178 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
6GFQ-23010
|
[1] |
INT F/POS CARR INSTALL-SHIFT
|
|
| N . |
6GFQ-23020
|
[1] |
INT F/POS CARR INSTALL-SHIFT
|
|
| 1. |
6GFQ-23110
|
[1] |
INT F/POS CARR ASSY-SHIFT
|
|
| 1. |
6GFQ-23120
|
[1] |
INT F/POS CARR ASSY-SHIFT
|
|
| 1-1. |
66FQ-00200
|
[1] |
CARRIAGE WA
|
|
| 1-1. |
66FQ-00210
|
[1] |
CARRIAGE WA
|
|
| 1-2. |
66FQ-00300
|
[2] |
CYLINDER
|
|
| 1-2. |
66FQ-00310
|
[2] |
CYLINDER
|
|
| 2. |
61FF-18600
|
[4] |
LOAD R/BRG ASSY(164.5)
|
|
| 2. |
61FF-18620
|
[4] |
LOAD R/BRG ASSY(165.0)
|
|
| 2. |
61FF-18630
|
[4] |
LOAD R/BRG ASSY(165.5)
|
|
| 3. |
S601-075004
|
[4] |
RING-RETAINING
|
|
| 4. |
63FF-18301
|
[4] |
SIDE ROLLER ASSY
|
|
| 5. |
61FF-18810-DAC
|
[8] |
ADJUSTABLE SCREW
|
|
| 6. |
S205-201006
|
[8] |
NUT-HEX
|
|
| 7. |
61FF-18011
|
[2] |
HANGER BAR-FORK
|
|
| 7. |
61FQ-18121
|
[2] |
HANGER BAR-FORK
|
|
| 8. |
61FQ-25100
|
[2] |
COVER
|
|
| 9. |
S037-123526
|
[4] |
BOLT-W/WASHER
|
|
| 10. |
S652-810008
|
[4] |
NIPPLE-GREASE
|
|
| 11. |
61FQ-25220
|
[2] |
SPACER
|
|
| 12. |
61FQ-25250
|
[2] |
SHIM
|
|
