神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (84.100.AD[21]) - QUICK COUPLER, CONTROL BOX ASSY (JRB) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
928 次

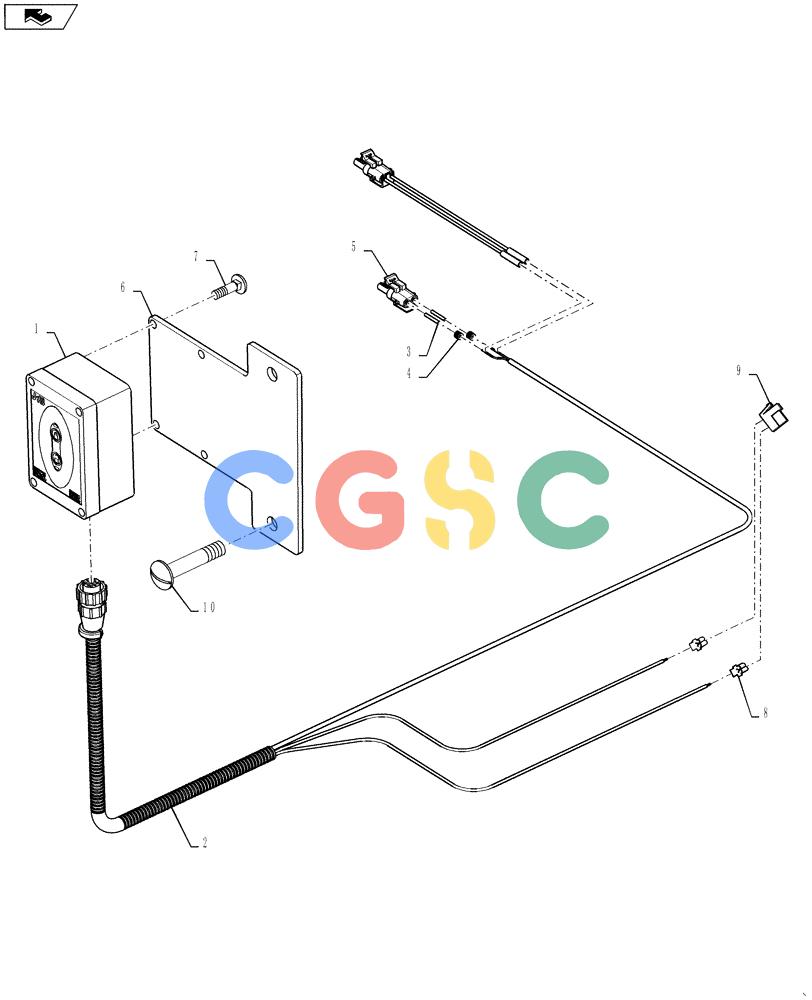

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN32T02282P1 | [1] | CONTROLLER | KOBAssembly, Incl 1 - 9 |
| 1. | YN32T02282P1001 | [1] | CONTROLLER | KOBJCB |
| 2. | YN32T02282P1002 | [1] | WIRE HARNESS | KOB |
| 3. | YN32T02282P1003 | [2] | ELEC. TERMINAL PIN | KOBFemale |
| 4. | YN32T02282P1004 | [2] | SEALING RING COLLAR | KOBCable Seal |
| 5. | YN32T02282P1005 | [1] | TERMINAL CONNECTOR | KOBBody, Female |
| 6. | YN32T02260P1 | [1] | BRACKET | KOB |
| 7. | YN32T02282P1007 | [4] | SCREW | KOB |
| 8. | YN32TU1059P1 | [2] | ELEC CONNECTOR | KOB |
| 9. | YN32TU1060P1 | [1] | TERMINAL CONNECTOR | KOB |
| 10. | YN17M01320P1 | [2] | SCREW,Phillips Drive, Truss HD, M6 x 1 x 15mm | SM |
