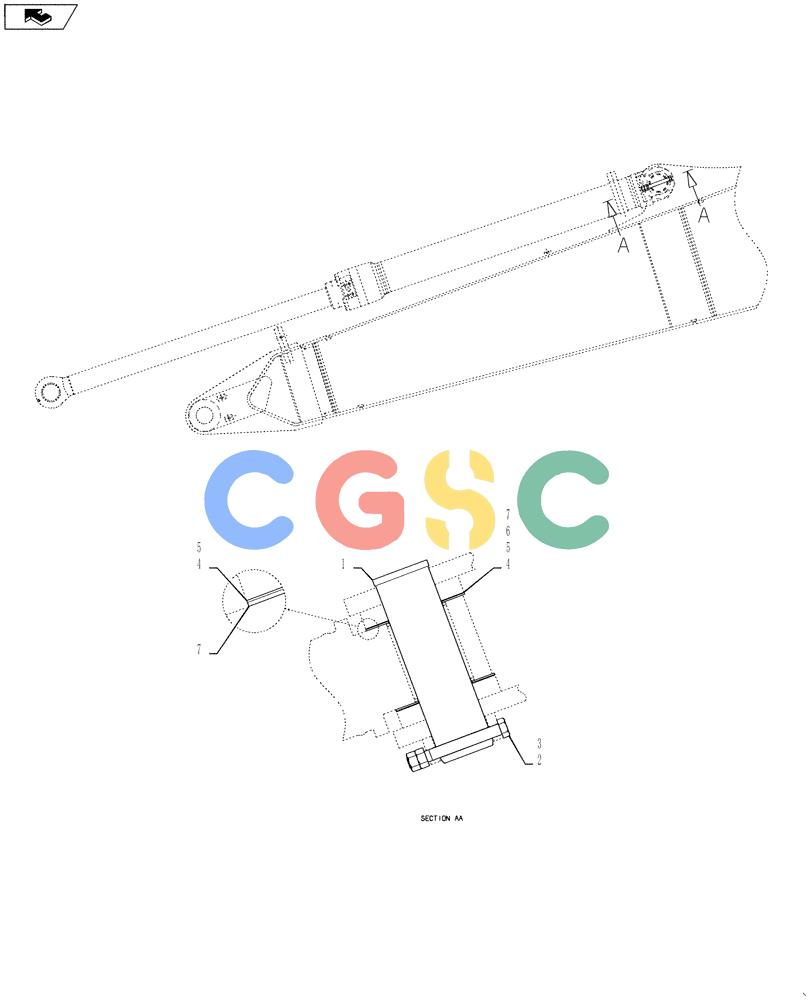

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (84.912.AB[03]) - ARM, CYLINDER, ATTACHMENT PIN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
510 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM02B01069P1 | [1] | PIN,80mm OD x 281mm L | KOB |
| 2. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOB |
| 3. | ZN18C16013 | [2] | NUT | KOB |
| 4. | B16T0442D52 | [1] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOB |
| 5. | B16T0442D39 | [1] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOB |
| 6. | B16T0442D4 | [1] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOB |
| 7. | LB12B01026D1 | [2] | SHIM,82mm ID x 150mm OD x 2mm Thk | KOB |
