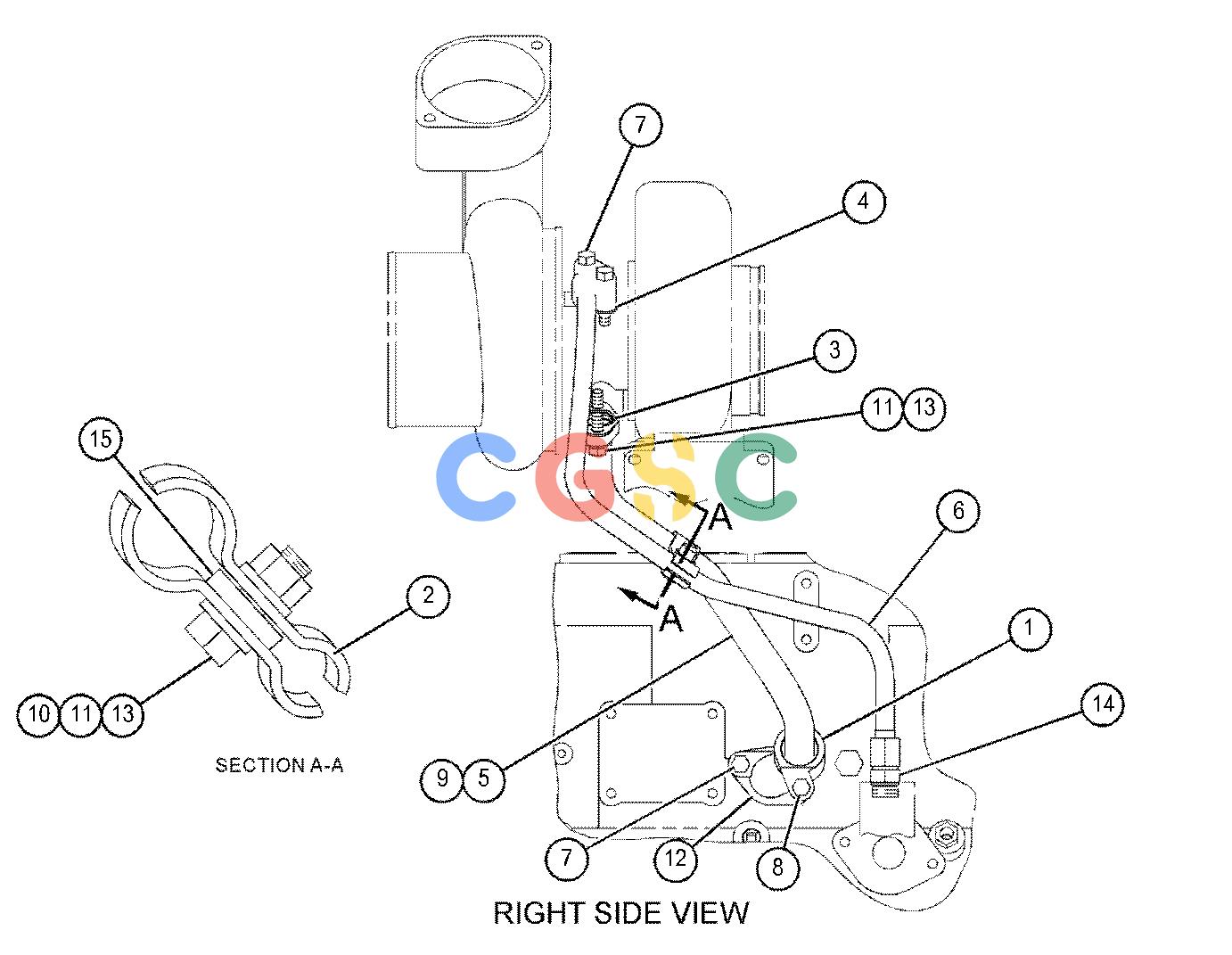

卡特零件查询（735） 183-2770: LINES GP-TURBOCHARGER OIL
广数供应链运营团队, 15 02月, 2025，浏览：
562 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4N-2040 | [1] | ELBOW-DRAIN | |
| 2. | 9M-7540 | [2] | CLAMP-TUBE | |
| 3. | 126-2702 | [1] | SEAL-INTEGRAL | |
| 4. | 198-6068 | [1] | SEAL-INTEGRAL | |
| 5. | 183-2994 | [1] | TUBE AS | |
| 6. | 183-2995 | [1] | TUBE AS | |
| 7. | 165-3931 | [3] | BOLT(3/8-16X1.75-IN) | |
| 8. | 0S-1619 | [1] | BOLT(3/8-16X3-IN) | |
| 9. | 114-2687 | [1] | SEAL-O-RING | |
| 10. | 9S-8752 | [1] | NUT-FULL(3/8-16-THD) | |
| 11. | 1A-2029 | [3] | BOLT(3/8-16X1.125-IN) | |
| 12. | 4N-0699 | [1] | GASKET | |
| 13. | 5M-2894 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 14. | 365-0576 | [1] | CONNECTOR AS | |
| | 9M-4584 | [1] | CONNECTOR | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 15. | 9M-6527 | [1] | WASHER-HARD(10.2X25.5X5-MM THK) | |
