卡特零件查询（735） 205-0349: BASE GP-FUEL FILTER
广数供应链运营团队, 15 02月, 2025，浏览：
560 次

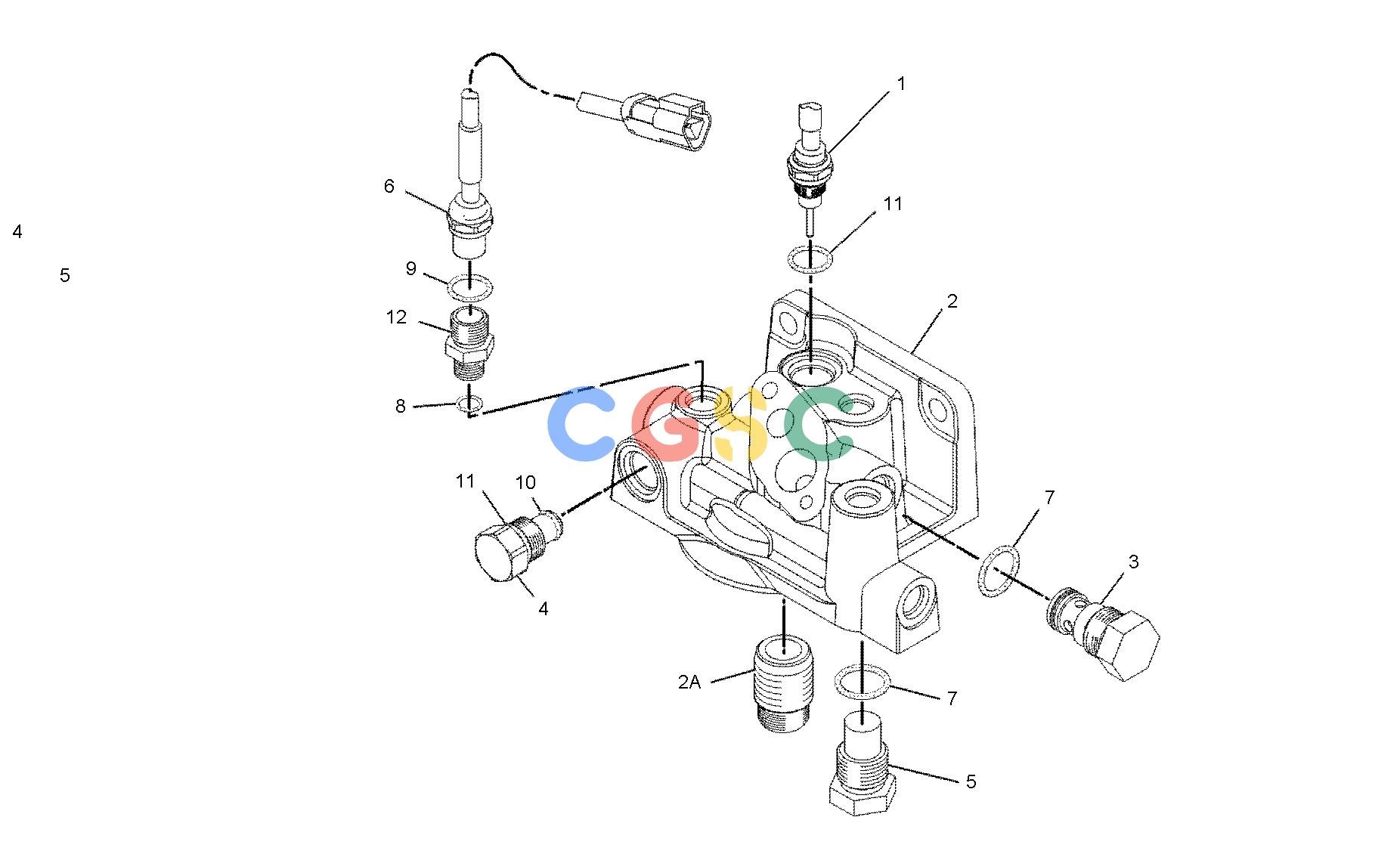

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 130-9811 | [1] | SENSOR GP-TEMPERATURE(FUEL) | |
| 2. | 136-5017 | [1] | BASE AS-FUEL FILTER | |
| 2A. | 9S-4167 | [1] | STUD-HOLLOW(1-14X1.47-IN) | |
| 3. | 139-6873Y | [1] | VALVE GP-FUEL BYPASS(FILTER) | |
| 4. | 143-2933 | [1] | FITTING | |
| 5. | 156-5783Y | [1] | VALVE GP-CHECK | |
| 6. | 194-6725Y | [1] | SENSOR GP-PRESSURE(FUEL) | |
| 7. | 6V-4589 | [2] | SEAL-O-RING | |
| 8. | 6V-5048 | [1] | SEAL-O-RING | |
| 9. | 6V-5049 | [1] | SEAL-O-RING | |
| 10. | 8L-2779 | [1] | SEAL-O-RING | |
| 11. | 8L-2786 | [2] | SEAL-O-RING | |
| 12. | 9X-0261 | [1] | ADAPTER | |
| | Y | | SEPARATE ILLUSTRATION |
