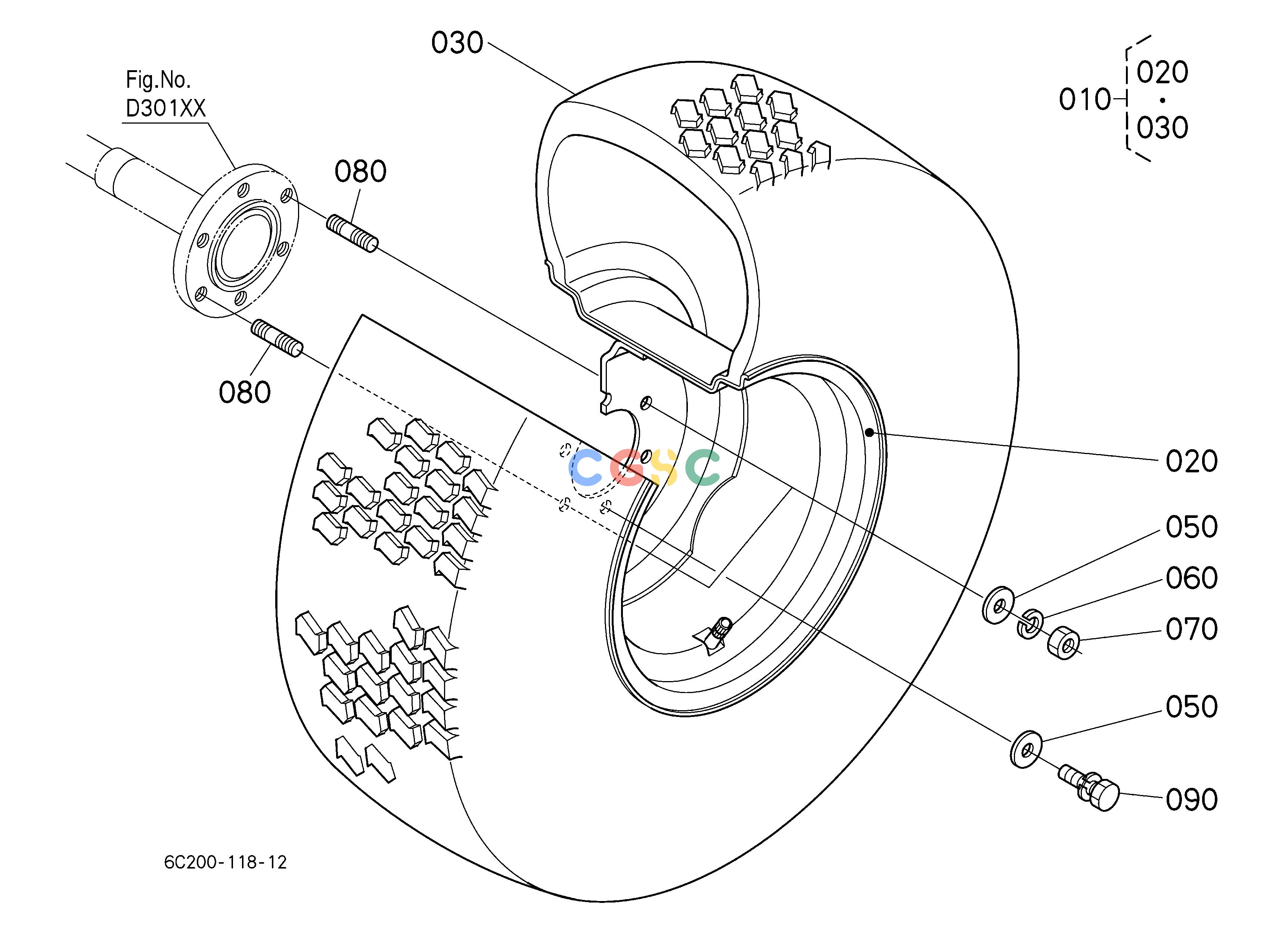

久保田零件查询R11005 REAR WHEEL(13.6-16) REAR TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
946 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20050320
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
6C07050330
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 030. |
6C20050340
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 050. |
0401360160
|
[12] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 060. |
0451260160
|
[4] |
WASHER,SPRING
|
0.0220(lbs); 0.010
|
| 070. |
0217650160
|
[4] |
NUT
|
0.0462(lbs); 0.021
|
| 080. |
0151751632
|
[4] |
STUD
|
0.1672(lbs); 0.076
|
| 090. |
0113351635
|
[8] |
BOLT
|
0.1980(lbs); 0.090
|
