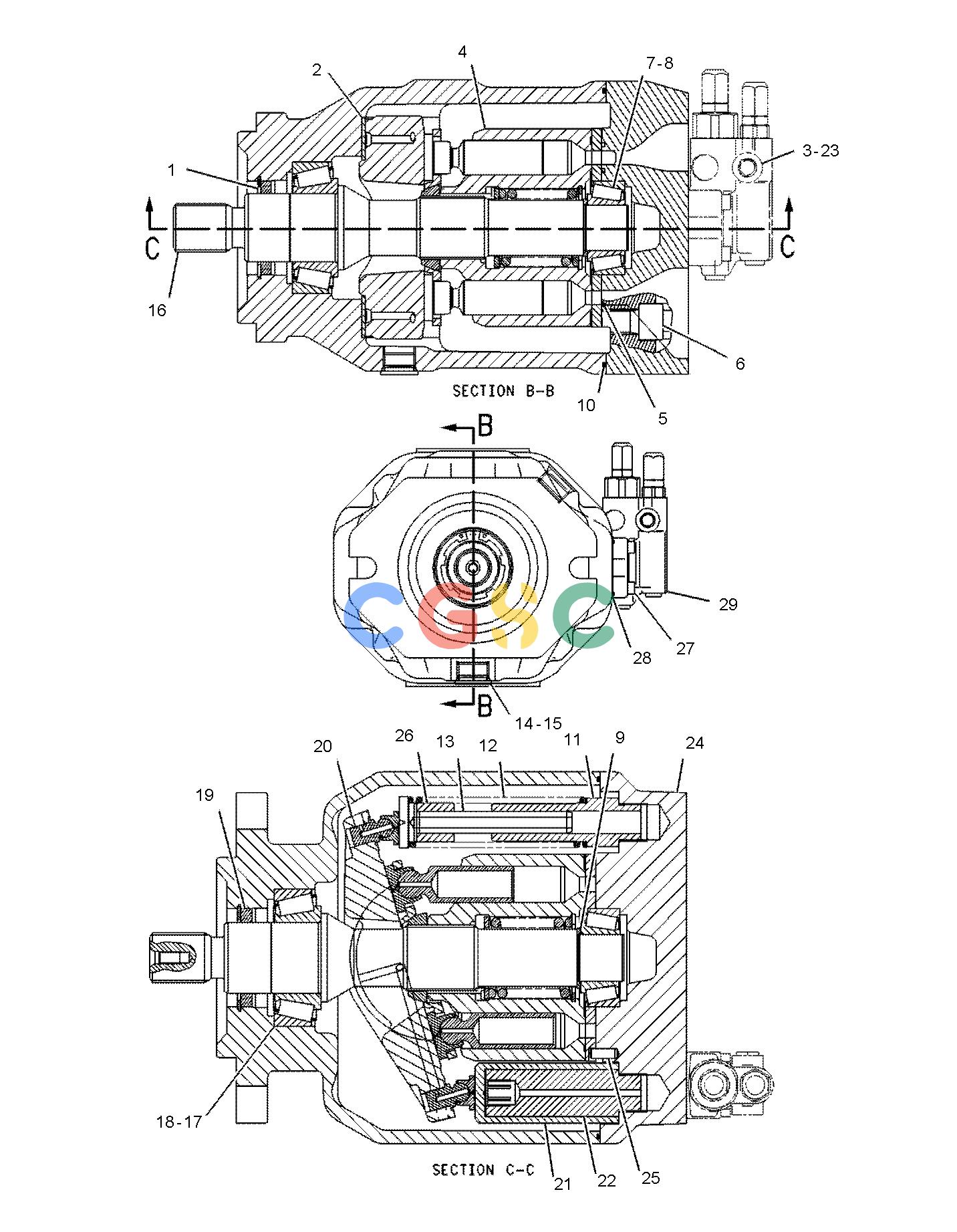

卡特零件查询（735） 224-4431: PUMP GP-PISTON
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-9598 | [1] | RING-RETAINING | |
| 2. | 105-1642 | [2] | BEARING | |
| 3. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 4. | 194-6861Y | [1] | ROTATING GP-PUMP(STEERING) | |
| 5. | 8U-5951 | [4] | SEAL-O-RING | |
| 6. | 6V-8201M | [4] | BOLT-SOCKET HEAD(M16X2X45-MM) | |
| 7. | 105-3033 | [1] | CUP-BEARING | |
| 8. | 105-3032 | [1] | CONE-BEARING | |
| 9. | 105-1638B | [1] | SPACER(30X38X3-MM THK) | |
| 10. | 162-9997 | [1] | SEAL-O-RING | |
| 11. | 105-1636 | [1] | CYLINDER-CONTROL | |
| 12. | 105-1635 | [1] | SPRING | |
| 13. | 105-1634 | [1] | PLUNGER | |
| 14. | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 15. | 3D-2824 | [1] | SEAL-O-RING | |
| 16. | 200-6179 | [1] | SHAFT | |
| 17. | 3B-2263 | [1] | CUP-BEARING | |
| 18. | 105-3031 | [1] | CONE-BEARING | |
| 19. | 105-1632 | [1] | SEAL | |
| 20. | 194-6850 | [1] | SWASHPLATE | |
| 21. | 105-1640 | [1] | PISTON-CONTROL | |
| 22. | 105-1639 | [1] | GUIDE-CONTROL | |
| 23. | 3J-7354 | [1] | SEAL-O-RING | |
| 24. | 136-8423 | [1] | PLUG-BREAK OFF | |
| 25. | 9X-8979 | [1] | DOWEL | |
| 26. | 143-7052 | [1] | SLEEVE-STOP | |
| 27. | 8T-8442M | [4] | BOLT-SOCKET HEAD(M6X1X30-MM) | |
| 28. | 9X-7680 | [3] | SEAL-O-RING | |
| 29. | 184-5174Y | [1] | VALVE GP-PUMP CONTROL(PRESSURE, FLOW COMPENSATOR) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
