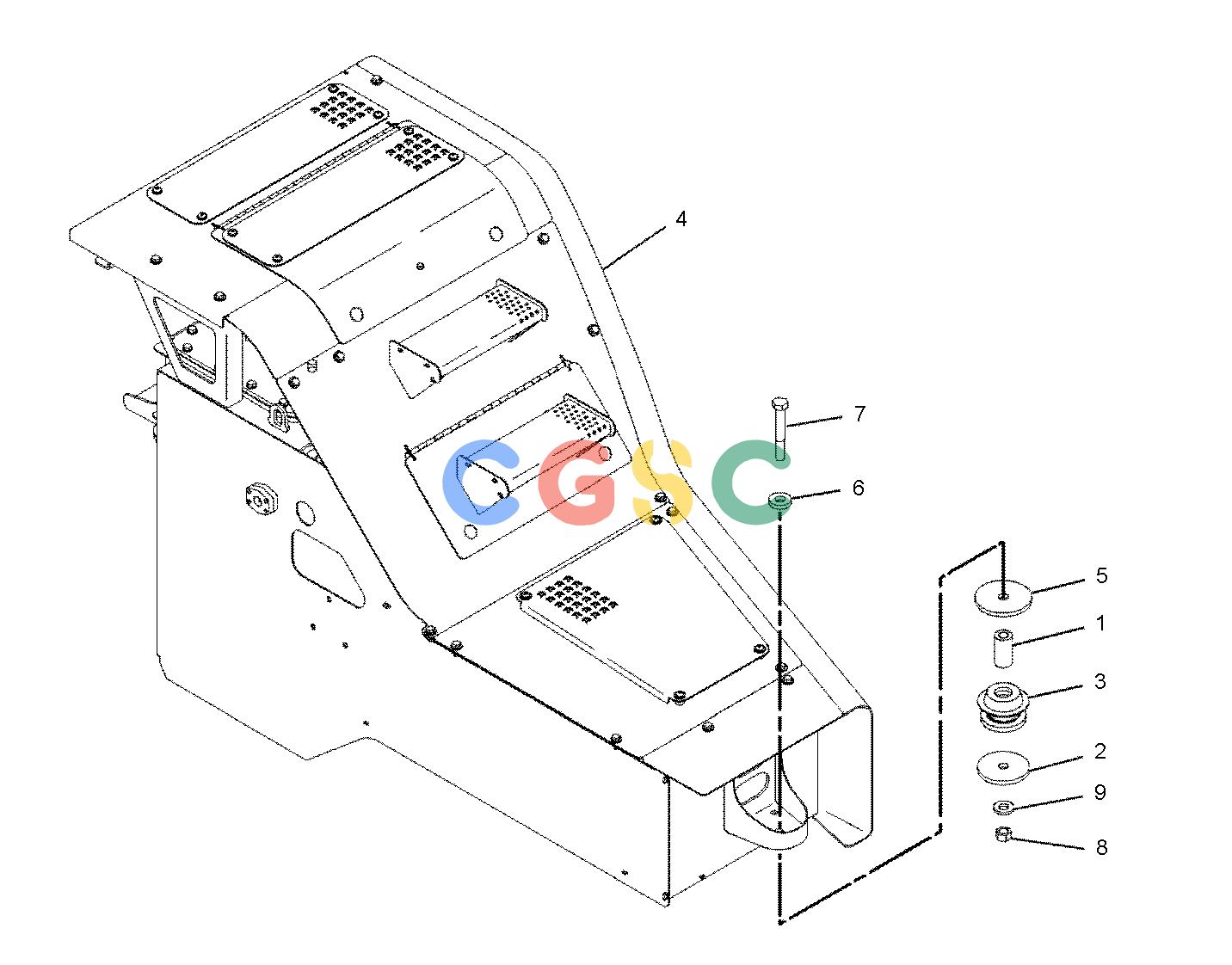

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 9W-6582 | [3] | SLEEVE | |
| 2. | 9W-6584 | [3] | WASHER(20.5X114X10-MM THK) | |
| 3. | 9W-9920 | [3] | MOUNTING AS-VIBRATION ISOLATOR | |
| 4. | 162-5242Y | [1] | TANK GP-HYDRAULIC | |
| 5. | 205-3984 | [3] | WASHER-SPECIAL | |
| 6. | 197-3820 | [3] | WASHER(22X50X10-MM THK) | |
| 7. | 8C-8478M | [3] | BOLT(M20X2.5X140-MM) | |
| 8. | 8T-4131M | [3] | NUT(M20X2.5-THD) | |
| 9. | 8T-5439 | [3] | WASHER-HARD(21.5X45X6-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
