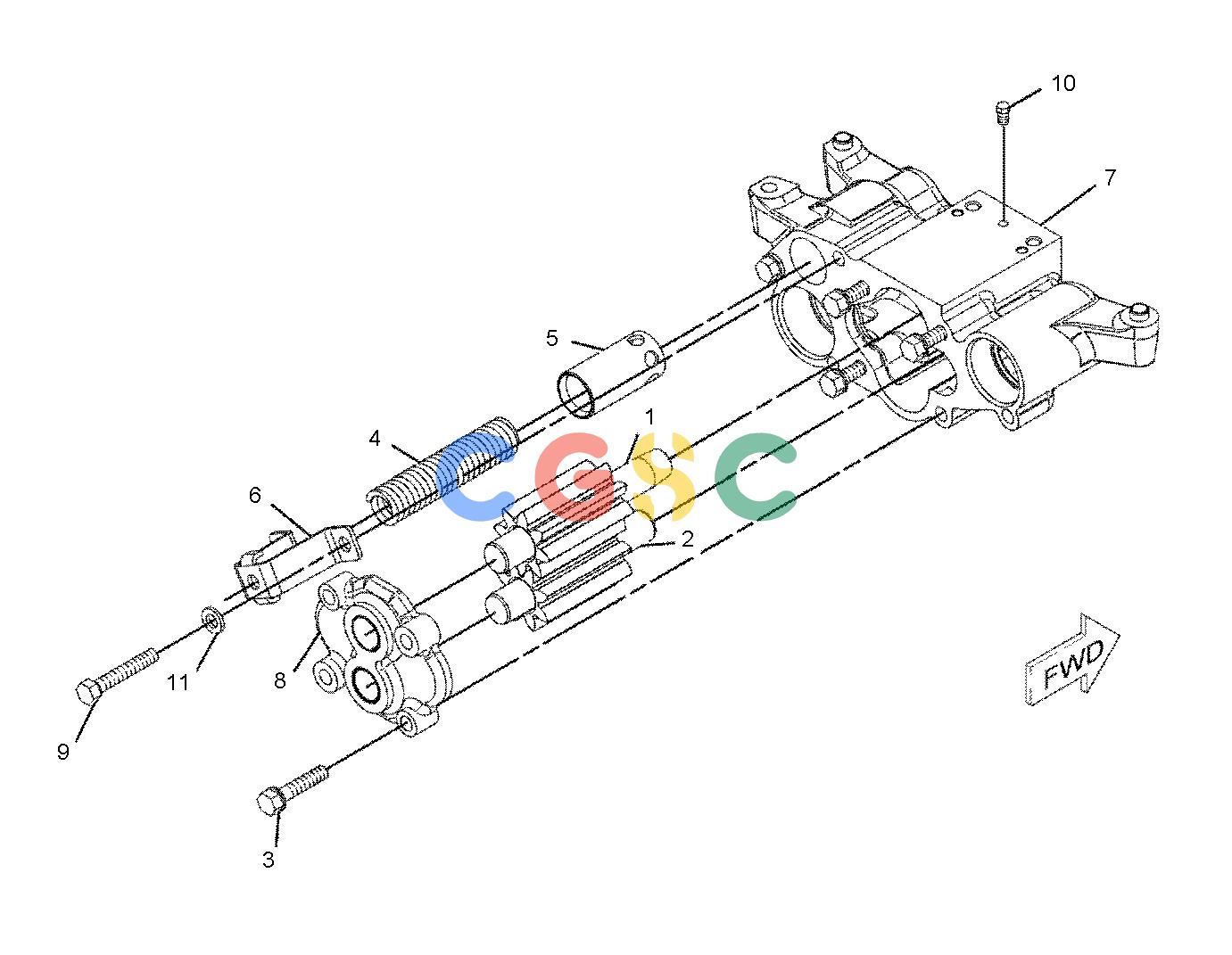

卡特零件查询（735） 161-4113: PUMP GP-ENGINE OIL
广数供应链运营团队, 15 02月, 2025，浏览：
991 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1W-7238 | [1] | SHAFT AS-PUMP DRIVE(8-TEETH) | |
| 2. | 1W-7239 | [1] | SHAFT AS-IDLER(8-TEETH) | |
| 3. | 2P-3205 | [4] | BOLT-WASHER HEAD(3/8-16X1.75-IN) | |
| 4. | 2S-2760 | [1] | SPRING | |
| 5. | 6N-1931 | [1] | PLUNGER | |
| 6. | 9Y-1792 | [1] | RETAINER | |
| 7. | 235-1587 | [1] | BODY AS | |
| | 7N-2156 | [2] | BUSHING | |
| | 8M-8489 | [2] | DOWEL | |
| 8. | 127-6356 | [1] | COVER AS-PUMP | |
| | 8S-6511 | [2] | BUSHING | |
| 9. | 1M-0644 | [2] | BOLT(3/8-16X2.25-IN) | |
| 10. | 2S-7905 | [1] | PLUG-PIPE | |
| 11. | 5M-2894 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
