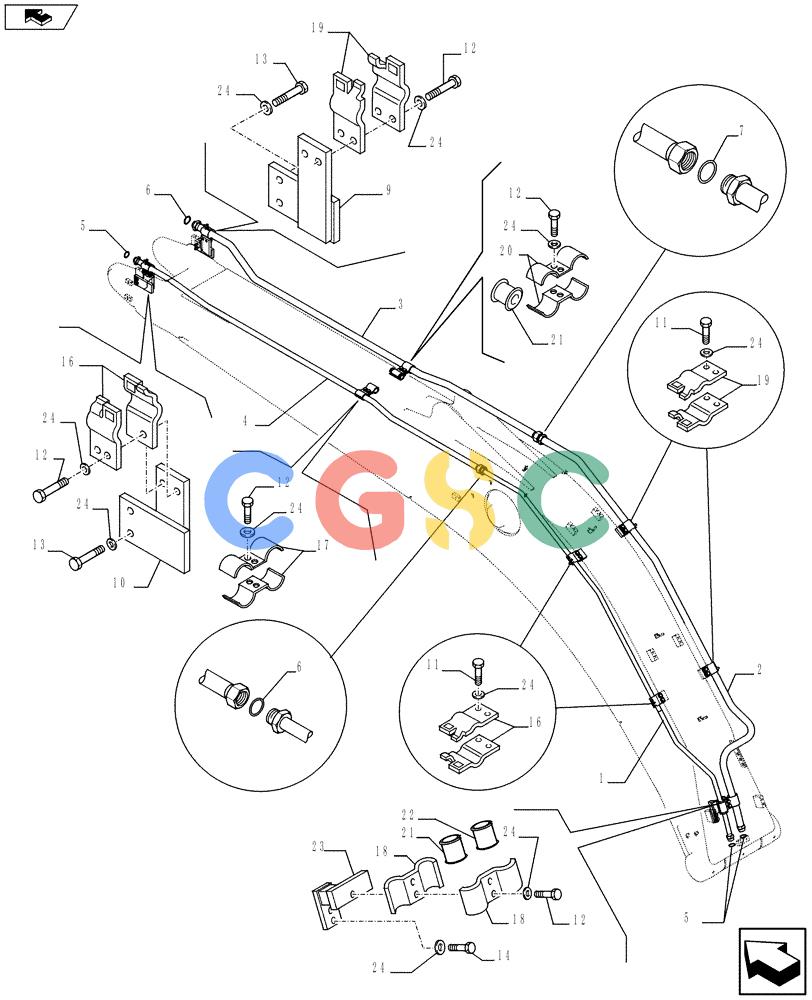

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.07) - HYD. LINE, BOOM, STD (N & B) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM42HU1008P1 | [1] | TUBE,2027.2, 316 mm L | KOB |
| 2. | YM42HU1006P1 | [1] | TUBE | KOB |
| 3. | YM42HU1007P1 | [1] | TUBE,3120.4, 1765.7 mm L | KOB |
| 4. | YM42HU1009P1 | [1] | TUBE,3106.6, 1764.7 mm L | KOB |
| 5. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| 6. | ZD12A02100 | [2] | O-RING | KOB |
| 7. | YY42H01313P1 | [1] | O-RING,29.87mm ID x 33.43mm OD x 1.78mm | KOB |
| 9. | YN42H02409P1 | [1] | BRACKET | KOB |
| 10. | YN42H02410P1 | [1] | BRACKET | KOB |
| 11. | ZM73C12030 | [8] | BOLT,M12x30mm - Course Thread | KOB |
| 12. | ZM73C12035 | [10] | BOLT,M12x35mm - Course Thread | KOB |
| 13. | ZM73C12040 | [4] | BOLT,M12x40mm - Course Thread | KOB |
| 14. | ZS18C12055 | [2] | SCREW,Hex, M12 x 55mm | KOB |
| 16. | YN42H02355P1 | [6] | CLAMP | KOB Superseded by part number: 84528898 |
| 17. | YN42H02349P1 | [2] | CLAMP | KOB |
| 18. | YN42H02348P1 | [2] | CLAMP | KOB |
| 19. | YN42H02357P1 | [6] | CLAMP,37mm ID, J Type | KOB Superseded by part number: 84528832 |
| 20. | YN42H02351P1 | [2] | CLAMP | KOB Superseded by part number: 84528894 |
| 21. | YN42H02319P1 | [2] | BUSHING,27.2mm ID x 34mm OD x 83mm L | SM Superseded by part number: 84354627 |
| 22. | YN43H01524P1 | [1] | BUSHING,34mm ID x 53mm OD x 83mm L | KOB Superseded by part number: 84354629 |
| 23. | YN42H02405P1 | [1] | BRACKET | KOB Superseded by part number: YN42H02405P2 |
| 24. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
