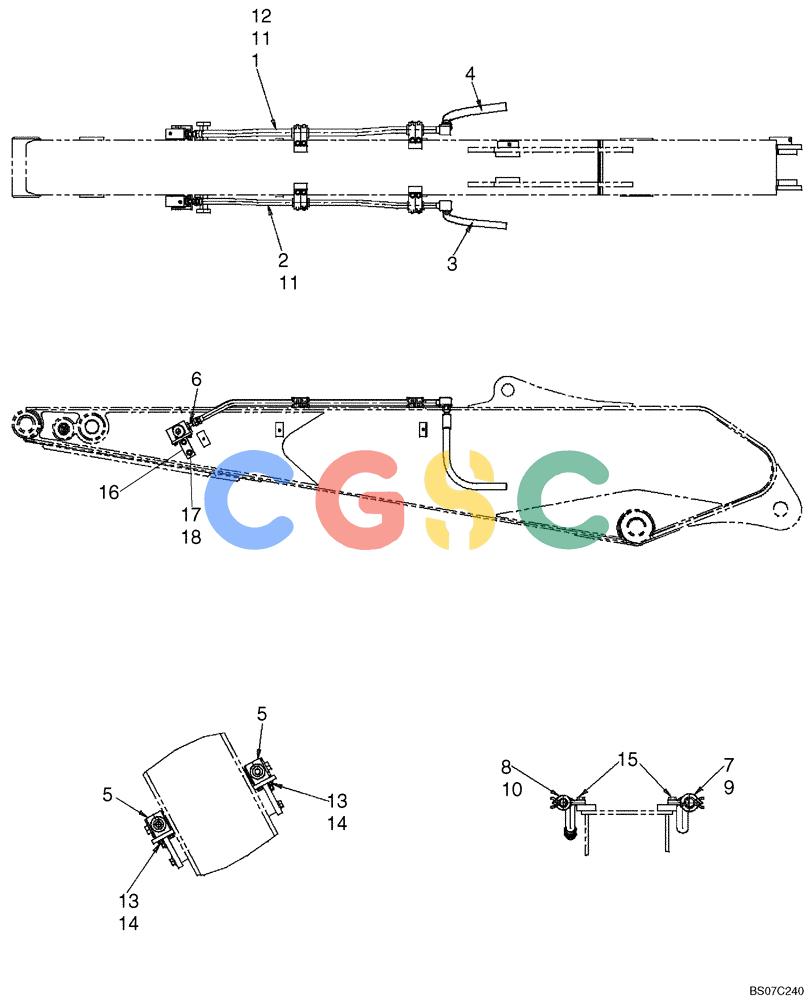

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.09[01]) - HYD. LINE, ARM 2.6M (N & B) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM43H01042P1 | [1] | TUBE,1049, 84 mm L | KOB |
| 2. | YM43H01043P1 | [1] | TUBE,1049, 84 mm L | KOB |
| 3. | ZX50H12150 | [1] | HOSE | HITL=1500mm |
| 4. | ZX50H16150 | [1] | HOSE,25.4mm ID x 1500mm L, SAE 100R13 | KOBL=1500mm |
| 5. | 24100P1006F1 | [2] | VALVE | KOBStop Superseded by part number: 24100P1006F2 |
| 6. | HG23H12012G1 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| . . | ZD12P02400 | [1] | O-RING | KOB(Part of HG23H12012G1), ID 23.70 ? 0.24 x OD 30mm, Not Shown |
| 7. | LC42H01020P1 | [4] | BUSHING,34mm ID x 53mm OD x 68mm L | KOB |
| 8. | LB42H01001P1 | [4] | CLAMP | KOB |
| 9. | LS43H01005P1 | [2] | CLAMP,43mm ID, 12mm Bolt Hole, J Type | KOB |
| 10. | LB42H01004P1 | [2] | BUSHING,28mm ID x 45mm OD x 68mm L | KOB |
| 11. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ? 0.12 x OD 22.33mm |
| 12. | ZD12A02100 | [1] | O-RING | KOBID 23.52 ? 0.15 x OD 27.08mm |
| 13. | ZW16H08000 | [8] | WASHER | KOB |
| 14. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOB |
| 15. | ZS18C10030 | [8] | SCREW,Hex, M10 x 30mm | KOB |
| 15-1. | ZW16H10000 | [8] | WASHER | KOBNot Shown |
| 16. | YW43H01044P1 | [2] | BRACKET | KOB |
| 17. | ZS18C12045 | [4] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 17-1. | 2418T10357 | [4] | WASHER | KOBNot Shown Superseded by part number: 2418T12345 |
| 18. | ZW16H12000 | [4] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
