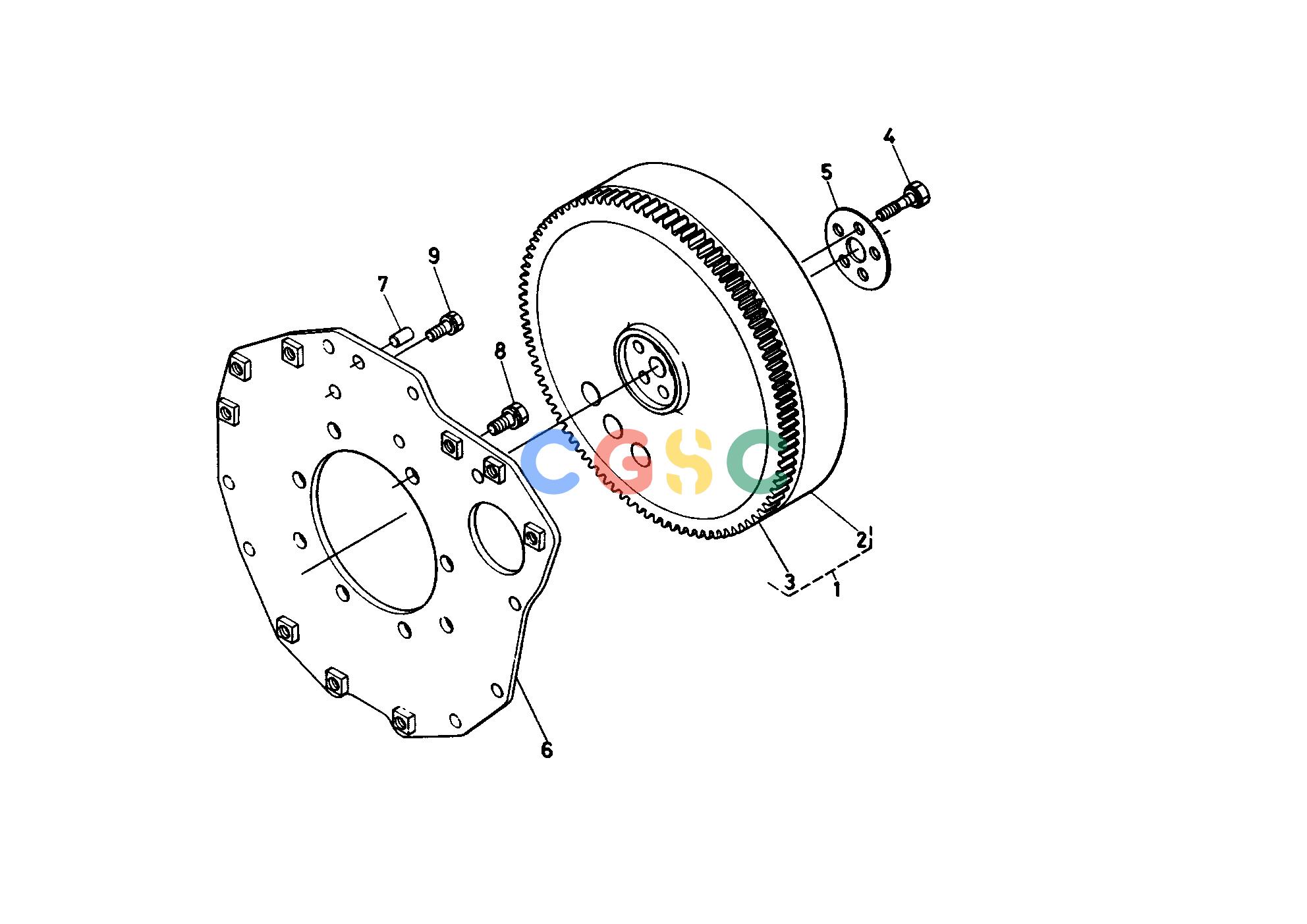

久保田零件查询T01300 FLYWHEEL ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1553125010
|
[1] |
ASSY FLYWHEEL
|
0.0000(lbs); 0.000
|
| 003. |
1523163820
|
[1] |
GEAR RING
|
0.0000(lbs); 0.000
|
| 004. |
1553125160
|
[5] |
BOLT FLYWHEEL
|
0.0000(lbs); 0.000
|
| 005. |
1553125170
|
[1] |
WASHER FLYWHEEL
|
0.0880(lbs); 0.040
|
| 006. |
1553204620
|
[1] |
PLATE REAR END
|
12.9800(lbs); 5.900
|
| 007. |
0501200814
|
[1] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 008. |
0113351028
|
[8] |
BOLT
|
0.0594(lbs); 0.027
|
| 009. |
0112350822
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
