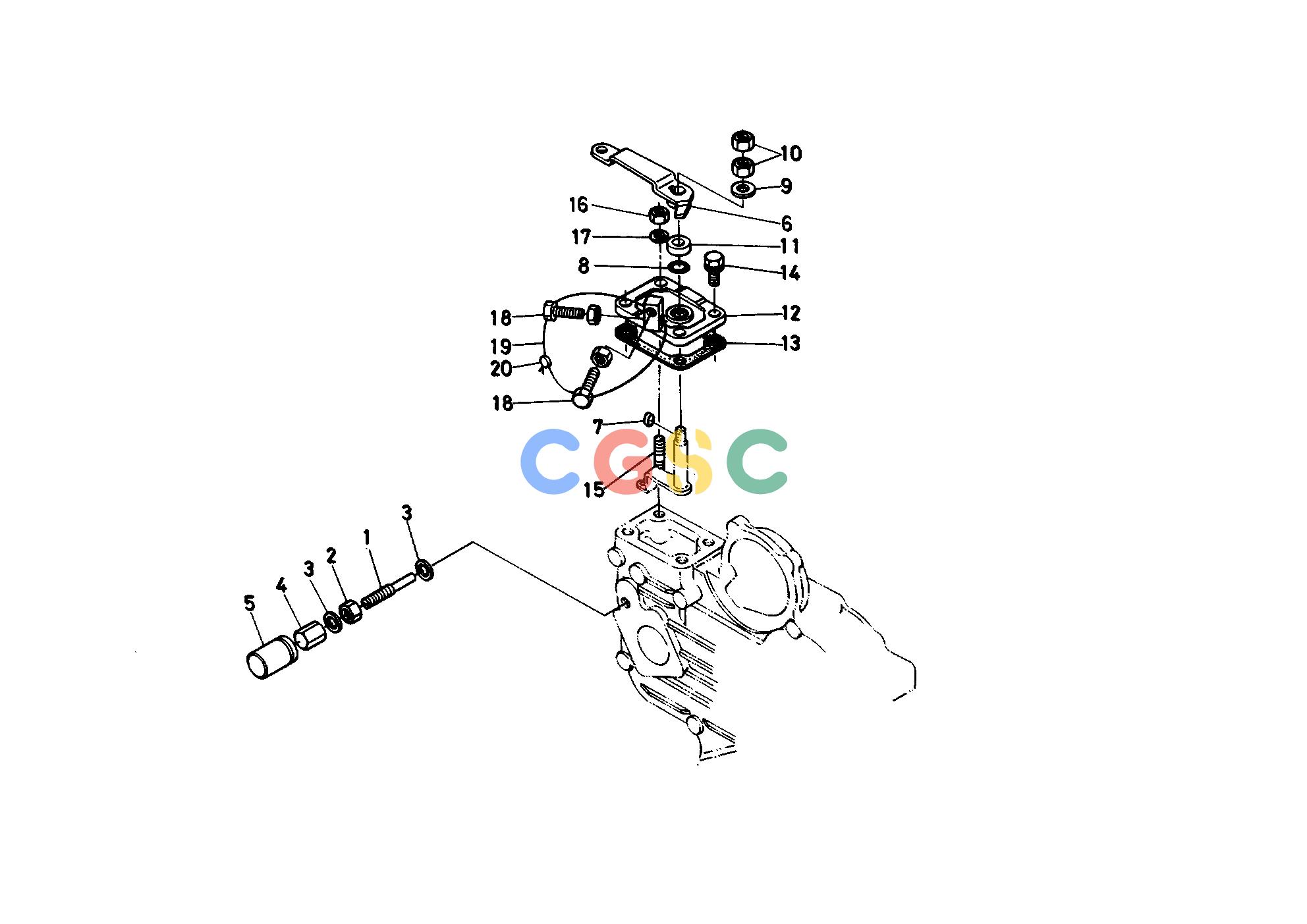

久保田零件查询T01500 SPEED CONTROL PLATE ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1553154120
|
[1] |
BOLT ADJUSTING
|
0.0198(lbs); 0.009
|
| 002. |
1553192030
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 003. |
1560196650
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 004. |
1560154220
|
[1] |
NUT CAP
|
0.0000(lbs); 0.000
|
| 005. |
1560154420
|
[1] |
CAP
|
0.0000(lbs); 0.000
|
| 006. |
1553157150
|
[1] |
LEVER SPEED CONTROL
|
0.0880(lbs); 0.040
|
| 007. |
1526195010
|
[1] |
KEY FEATHER
|
0.0022(lbs); 0.001
|
| 008. |
0481100070
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 009. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 010. |
0201250060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 011. |
1526157380
|
[1] |
PLATE FRICTION
|
0.0000(lbs); 0.000
|
| 012. |
1553157110
|
[1] |
PLATE SPEED CONTROL
|
0.1320(lbs); 0.060
|
| 013. |
1526157210
|
[1] |
GASKET CONTROL PLATE
|
0.0000(lbs); 0.000
|
| 014. |
0102350620
|
[3] |
BOLT
|
0.0132(lbs); 0.006
|
| 015. |
1522188210
|
[1] |
STUD
|
0.0110(lbs); 0.005
|
| 016. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 017. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
