卡特零件查询（735） 294-2307: FILTER & MTG GP-EXHAUST
广数供应链运营团队, 15 02月, 2025，浏览：
1022 次

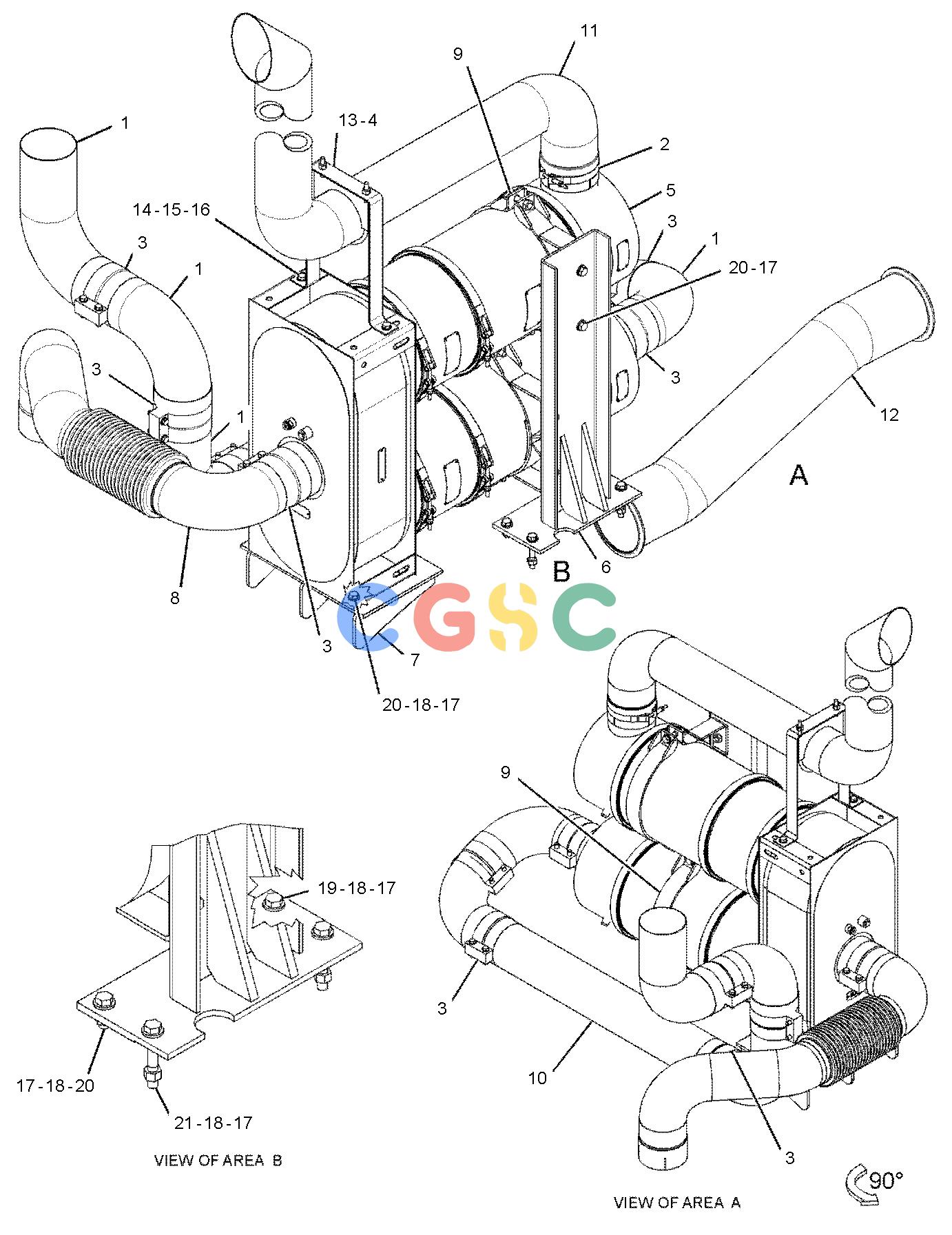

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4N-5715 | [5] | ELBOW AS-OUTLET | |
| 2. | 176-8234 | [1] | CLAMP | |
| 3. | 190-5341 | [7] | CLAMP | |
| 4. | 266-2973 | [1] | CLAMP AS-U-BOLT | |
| 5. | 294-3065Y | [1] | FILTER GP-DIESEL PARTICULATE | |
| 6. | 294-3395 | [1] | SUPPORT AS-EXHAUST | |
| 7. | 294-3396 | [1] | SUPPORT AS-EXHAUST | |
| 8. | 294-3397 | [1] | TUBE AS-EXHAUST | |
| 9. | 295-3044 | [2] | SUPPORT GP-EXHAUST(DIESEL PARTICULATE FILTER) | |
| | | | (EACH INCLUDES) |
| | 5P-8245 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | 6V-3823M | [2] | BOLT(M12X1.75X60-MM) | |
| | 295-3045 | [2] | CLAMP AS | |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| 10. | 295-8289 | [1] | PIPE-EXHAUST | |
| 11. | 295-9251 | [1] | PIPE AS-EXHAUST | |
| 12. | 295-9252 | [1] | PIPE AS-EXHAUST | |
| 13. | 310-3987 | [1] | SUPPORT | |
| 14. | 2Y-5829M | [2] | NUT(M10X1.5-THD) | |
| 15. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 17. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 19. | 8T-4648M | [1] | BOLT(M12X1.75X70-MM) | |
| 20. | 8T-4956M | [7] | BOLT(M12X1.75X35-MM) | |
| 21. | 8T-6868M | [2] | BOLT(M12X1.75X80-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
