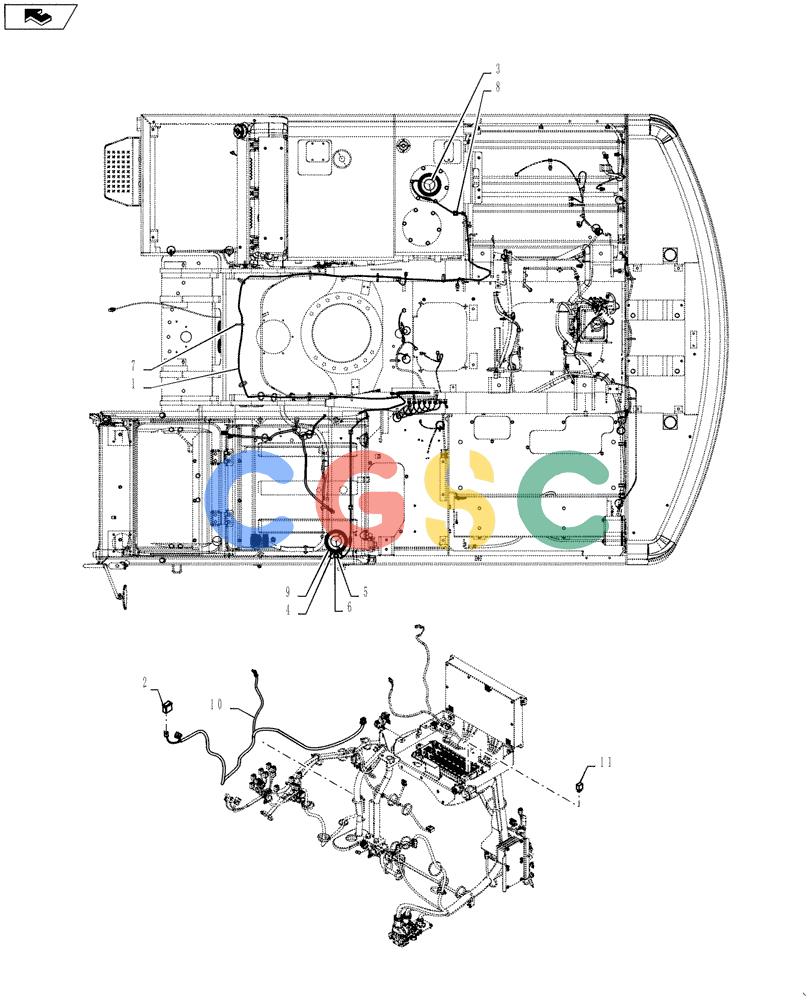

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.13) - BEACON INSTALL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
781 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LB13E01043P1 | [1] | WIRE HARNESS | SM |
| 2. | 84164716 | [1] | BEACON SWITCH | SM(YN50S00040D2) Superseded by part number: YN50S00040D2 |
| 3. | 71449470 | [2] | BEACON | LEC(YN80S00030P1) (Incl Bulb p/n 14151190) |
| 4. | LB13E01046P1 | [1] | BRACKET | SM |
| 5. | 71405003 | [1] | WASHER | TOR(ZW16H16000) Superseded by part number: 98416514 |
| 6. | 11127434 | [1] | SCREW | IMO(ZS18C16030) |
| 7. | 72951499 | [20] | CLIP | IMO(PY01P01043D8) Superseded by part number: PY01P01043D8 |
| 8. | 71451259 | [16] | BRACKET | SM(YM03E01010P1) |
| 9. | 84175610 | [2] | DECAL | SM(YN20T02135P1) |
| 10. | LB13E01051P1 | [1] | WIRE HARNESS | SM |
| 11. | 87559156 | [1] | RELAY | SM(YN24S00010P1) Superseded by part number: YN24S00010P1 |
