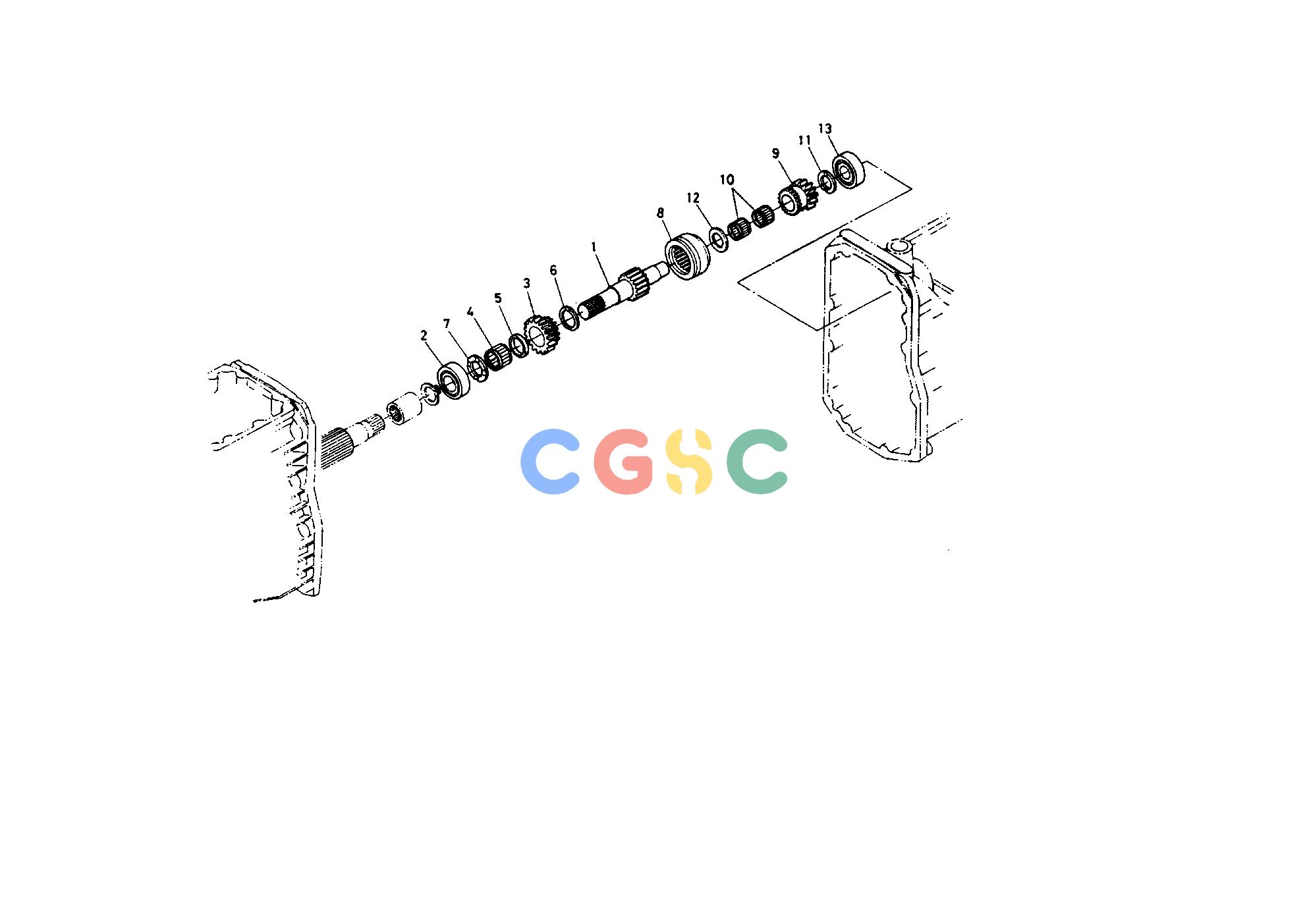

久保田零件查询T02500 3 RD SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
748 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780014810
|
[1] |
SHAFT 3
|
1.7490(lbs); 0.795
|
| 002. |
6731114520
|
[1] |
BEARING BALL
|
0.2750(lbs); 0.125
|
| 003. |
6780014830
|
[1] |
GEAR SPUR 17
|
0.4400(lbs); 0.200
|
| 004. |
0882283221
|
[1] |
BEARING NEEDLE
|
0.0440(lbs); 0.020
|
| 005. |
6711114430
|
[1] |
COLLAR
|
0.0132(lbs); 0.006
|
| 006. |
6711114370
|
[1] |
COLLAR
|
0.0154(lbs); 0.007
|
| 007. |
6711114450
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 008. |
6780015140
|
[1] |
SHIFTER
|
0.8140(lbs); 0.370
|
| 008. |
6780015143
|
[1] |
SHIFTER
|
0.0000(lbs); 0.000
|
| 009. |
6780015170
|
[1] |
GEAR SPUR 13
|
0.0000(lbs); 0.000
|
| 010. |
0882222720
|
[2] |
BEARING NEEDLE
|
0.0550(lbs); 0.025
|
| 011. |
6780014890
|
[1] |
COLLAR
|
0.0110(lbs); 0.005
|
| 012. |
6711115110
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 013. |
6711114180
|
[1] |
BEARING BALL
|
0.0000(lbs); 0.000
|
