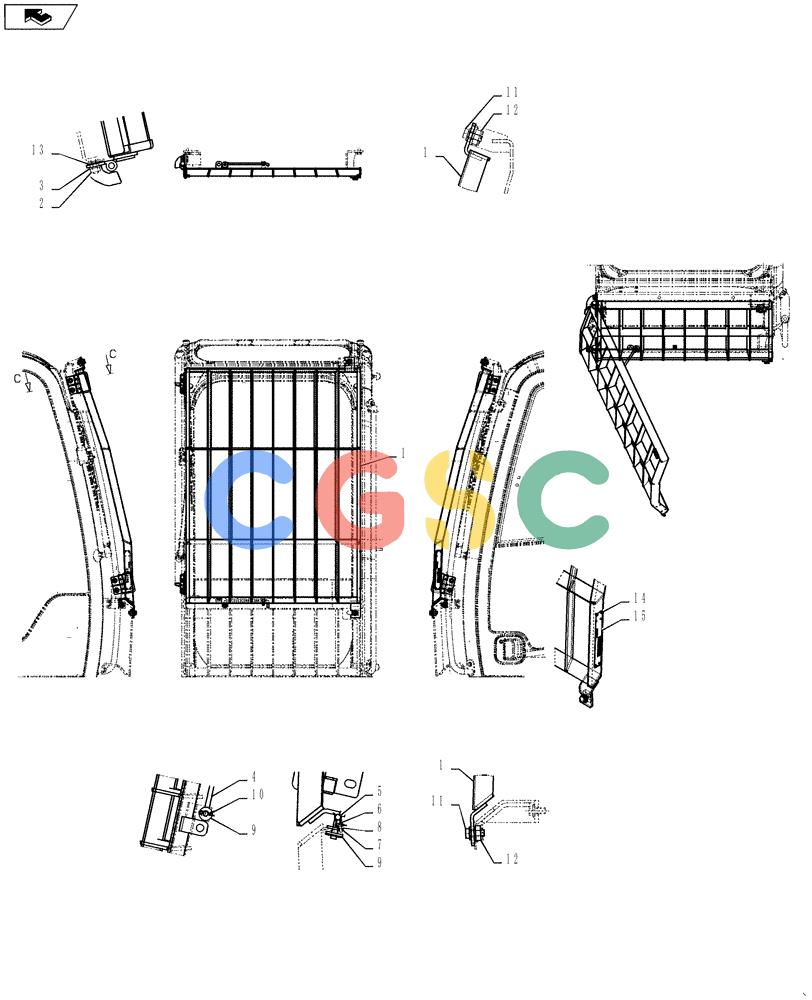

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.17[02]) - CAB GUARD, FRONT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | 47681888 | [1] | KIT | KOBCab Front Guard, Incl 1 - 15 |
| 1. | LQ02C01300P1 | [1] | GUARD | SM |
| 2. | ZN18C10008 | [4] | NUT | KOB |
| 3. | ZW16H10000 | [4] | WASHER | KOB |
| 4. | YN02C03597P1 | [1] | ROD | KOB |
| 5. | YN21C01178P1 | [1] | CLIP | KOB |
| 6. | ZM66C04012 | [1] | BOLT | KOB |
| 7. | ZN16C04003 | [1] | NUT | KOB Superseded by part number: ZN18C04003 |
| 8. | ZW16P04000 | [1] | WASHER | KOB |
| 9. | HY25X10027G1 | [1] | WASHER,10mm ID x 27mm OD x 3.2mm Thk | KOB |
| 10. | 2419R9D2 | [1] | COTTER PIN | KOB |
| 11. | ZM73C12030 | [2] | BOLT,M12x30mm - Course Thread | KOB |
| 12. | 87606857 | [2] | PLATE | SM(YN02C03199P1) Superseded by part number: YN02C03199P1 |
| 13. | YN02C03660P1 | [3] | SHIM,32mm OD x 1.6mm Thk | KOB |
| 14. | 4020Z64 | [4] | RIVET | KOB Superseded by part number: 2420P623D7 |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONPlate, Number |
