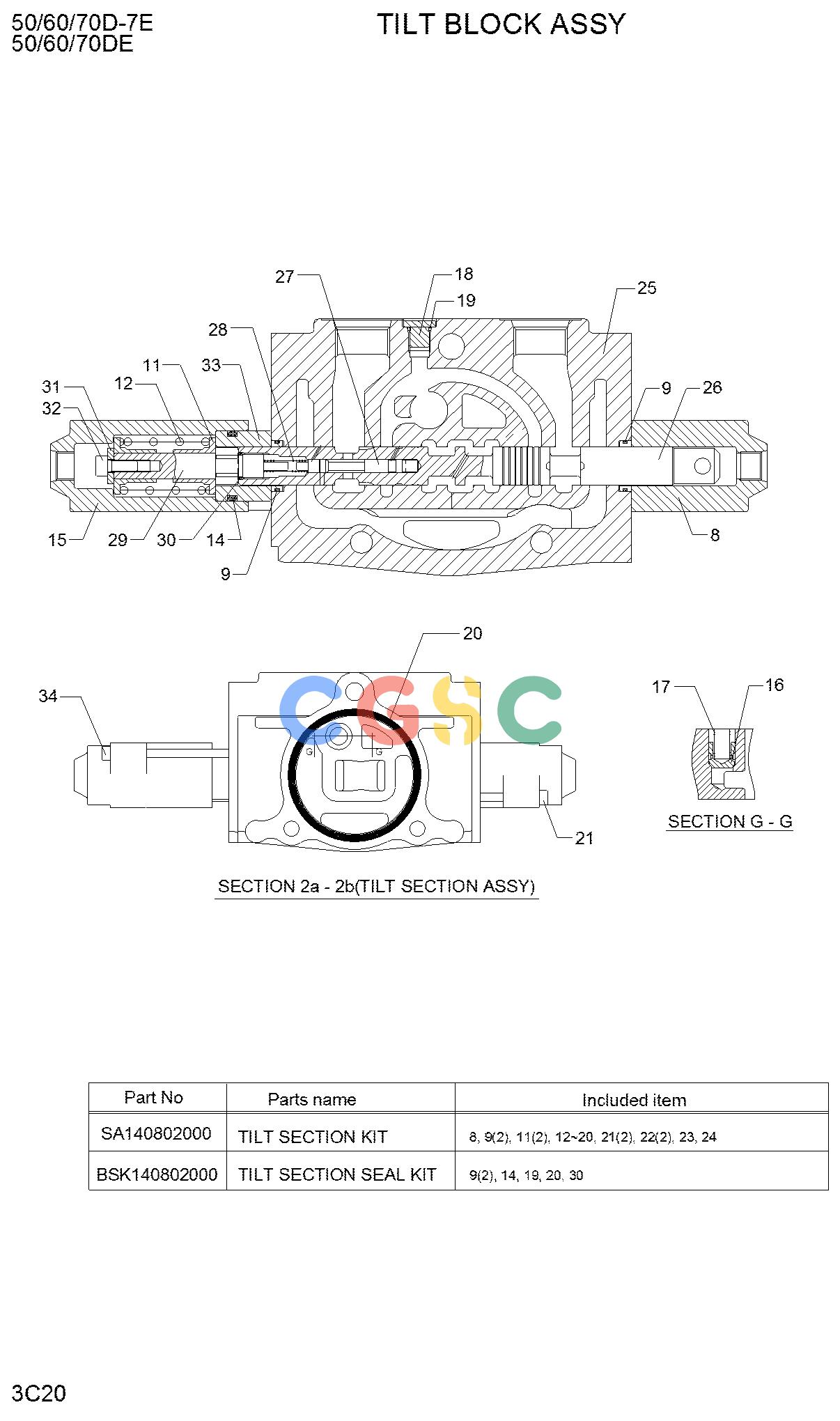

现代零件查询50/60/70D-7A TILT BLOCK ASSYEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
336 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
34FQ-02700
|
[1] |
MCV-5SPOOL
|
|
| . |
34FQ-02700
|
[1] |
MCV-5SPOOL
|
|
| . |
34FQ-02700
|
[1] |
MCV-5SPOOL
|
|
| 8. |
XKAU-00441
|
[1] |
CAP
|
|
| 9. |
XKAU-00442
|
[2] |
O-RING
|
|
| 11. |
XKAU-00444
|
[2] |
GUIDE
|
|
| 12. |
XKAU-00445
|
[1] |
SPRING
|
|
| 14. |
XKAU-00447
|
[5] |
O-RING
|
|
| 15. |
XKAU-00448
|
[5] |
CAP-SPRING
|
|
| 16. |
XKAU-00449
|
[1] |
POPPET INLET
|
|
| 17. |
XKAU-00450
|
[1] |
SPRING
|
|
| 18. |
XKAU-00451
|
[1] |
PLUG
|
|
| 19. |
XKAU-00234
|
[1] |
O-RING
|
|
| 20. |
XKAU-00452
|
[1] |
O-RING
|
|
| 21. |
XKAU-00453
|
[2] |
BOLT
|
|
| 25. |
XKAU-00456
|
[1] |
JO BLOCK
|
|
| 26. |
XKAU-00457
|
[1] |
SPOOL-TILT
|
|
| 27. |
XKAU-00458
|
[1] |
PISTON-TILT
|
|
| 28. |
XKAU-00459
|
[1] |
SPRING
|
|
| 29. |
XKAU-00460
|
[1] |
LOCK BOLT-TILT
|
|
| 30. |
XKAU-00461
|
[1] |
O-RING
|
|
| 31. |
XKAU-00462
|
[1] |
WASHER
|
|
| N32. |
XKAU-00252
|
[1] |
BOLT
|
|
| 33. |
XKAU-00463
|
[1] |
BUSH-TILT
|
|
| 34. |
XKAU-00464
|
[2] |
BOLT
|
|
