神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.108.AB[05]) - WARNING DECAL, EXTERIOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
461 次

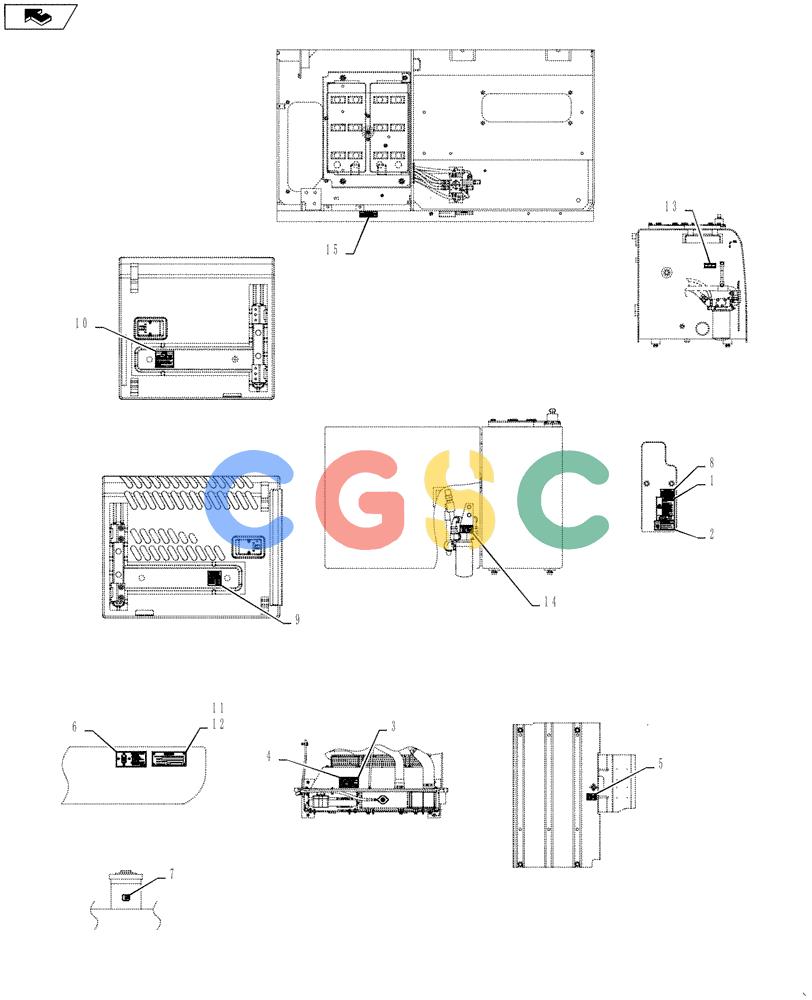

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN20T01015P2 | [1] | LABEL | KOB |
| 2. | YN20T01338P1 | [1] | LABEL | KOB |
| 3. | YN20T01010P1 | [1] | LABEL | KOB Superseded by part number: ZL11N00404 |
| 4. | YN20T01009P1 | [1] | LABEL | KOB Superseded by part number: ZL11N05204 |
| 5. | YN20T01220P1 | [1] | LABEL | KOB Superseded by part number: ZL11N00504 |
| 6. | 2432P2689 | [1] | LABEL | KOB |
| 7. | PA20T01031P1 | [1] | CAUTION DECAL | KOB |
| 8. | YN20T01495P1 | [1] | WARNING DECAL | KOB |
| 9. | YN20T01832P1 | [1] | LABEL | KOB |
| 10. | 2432P3379 | [1] | LABEL | KOB |
| 11. | YT20T01092P2 | [1] | PLATE | KOB |
| 12. | 4020Z64 | [4] | RIVET | KOB Superseded by part number: 2420P623D7 |
| 13. | 2432T6573 | [1] | LABEL | KOB |
| 14. | YN20T01867P2 | [1] | LABEL | KOB Superseded by part number: YN20T01852P2 |
| 15. | YN20T01854P1 | [1] | LABEL | KOB |
