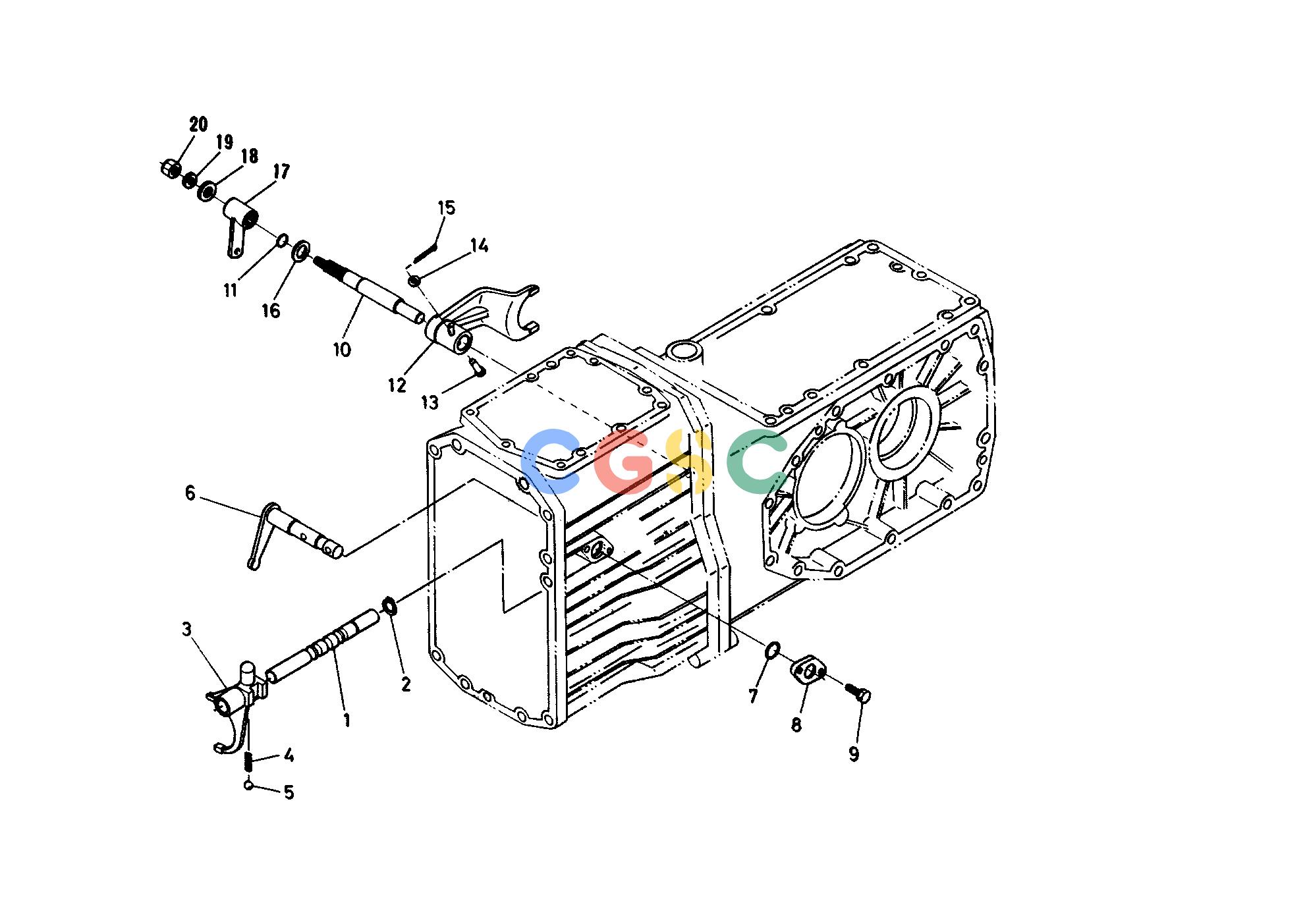

久保田零件查询T03700 ROTARY SPEED CHANGE FORK SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
314 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6711118610
|
[1] |
SHAFT
|
0.3630(lbs); 0.165
|
| 002. |
0461200140
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 003. |
6711118620
|
[1] |
FORK
|
0.4290(lbs); 0.195
|
| 004. |
6223118530
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 005. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 006. |
6781018670
|
[1] |
ARM
|
0.3520(lbs); 0.160
|
| 007. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 008. |
6780018180
|
[1] |
HOLDER FORK ROD
|
0.0990(lbs); 0.045
|
| 009. |
0120250616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 010. |
6711119110
|
[1] |
SHAFT
|
0.3630(lbs); 0.165
|
| 011. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 012. |
6711119130
|
[1] |
FORK
|
0.8360(lbs); 0.380
|
| 013. |
6711119140
|
[1] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 014. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 015. |
0551151610
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 016. |
6711119160
|
[1] |
COLLAR
|
0.0110(lbs); 0.005
|
| 017. |
6711142810
|
[1] |
LEVER DIFF. LOCK
|
0.1540(lbs); 0.070
|
| 018. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 019. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 020. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
