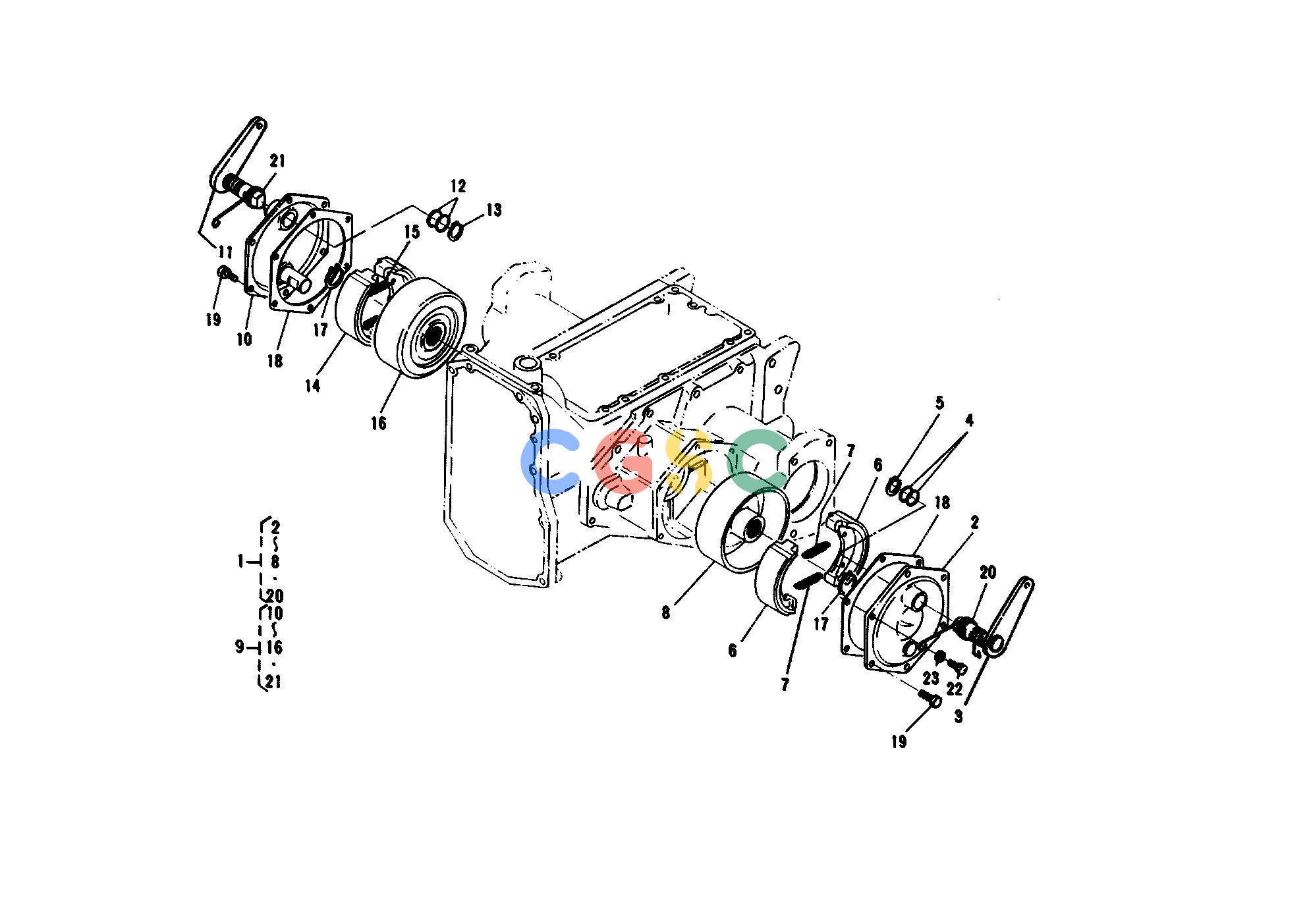

久保田零件查询T03800 BRAKE BRAKEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780022300
|
[1] |
ASSY BRAKE LH
|
7.7176(lbs); 3.508
|
| 002. |
6780022310
|
[1] |
COVER BRAKE
|
2.0240(lbs); 0.920
|
| 003. |
6711122320
|
[1] |
CAM BRAKE LH
|
0.7700(lbs); 0.350
|
| 004. |
0481105180
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 005. |
0461200220
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 006. |
6711122350
|
[2] |
SHOE BRAKE
|
0.0000(lbs); 0.000
|
| 007. |
6711122370
|
[2] |
SPRING RETURN
|
0.0176(lbs); 0.008
|
| 008. |
6780022380
|
[1] |
DRUM BRAKE
|
3.5200(lbs); 1.600
|
| 009. |
6780022400
|
[1] |
ASSY BRAKE RH
|
0.0000(lbs); 0.000
|
| 010. |
6780022310
|
[1] |
COVER BRAKE
|
2.0240(lbs); 0.920
|
| 011. |
6711122420
|
[1] |
CAM BRAKE RH
|
0.7920(lbs); 0.360
|
| 012. |
0481105180
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 013. |
0461200220
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 014. |
6711122350
|
[2] |
SHOE BRAKE
|
0.0000(lbs); 0.000
|
| 015. |
6711122370
|
[2] |
SPRING RETURN
|
0.0176(lbs); 0.008
|
| 016. |
6780022380
|
[1] |
DRUM BRAKE
|
3.5200(lbs); 1.600
|
| 017. |
0461200300
|
[2] |
CIR-CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 018. |
6780022610
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 019. |
0112350816
|
[10] |
BOLT
|
0.0242(lbs); 0.011
|
| 020. |
6711122390
|
[1] |
SPRING LH
|
0.0770(lbs); 0.035
|
| 021. |
6711122490
|
[1] |
SPRING RH
|
0.0660(lbs); 0.030
|
| 022. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 023. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
