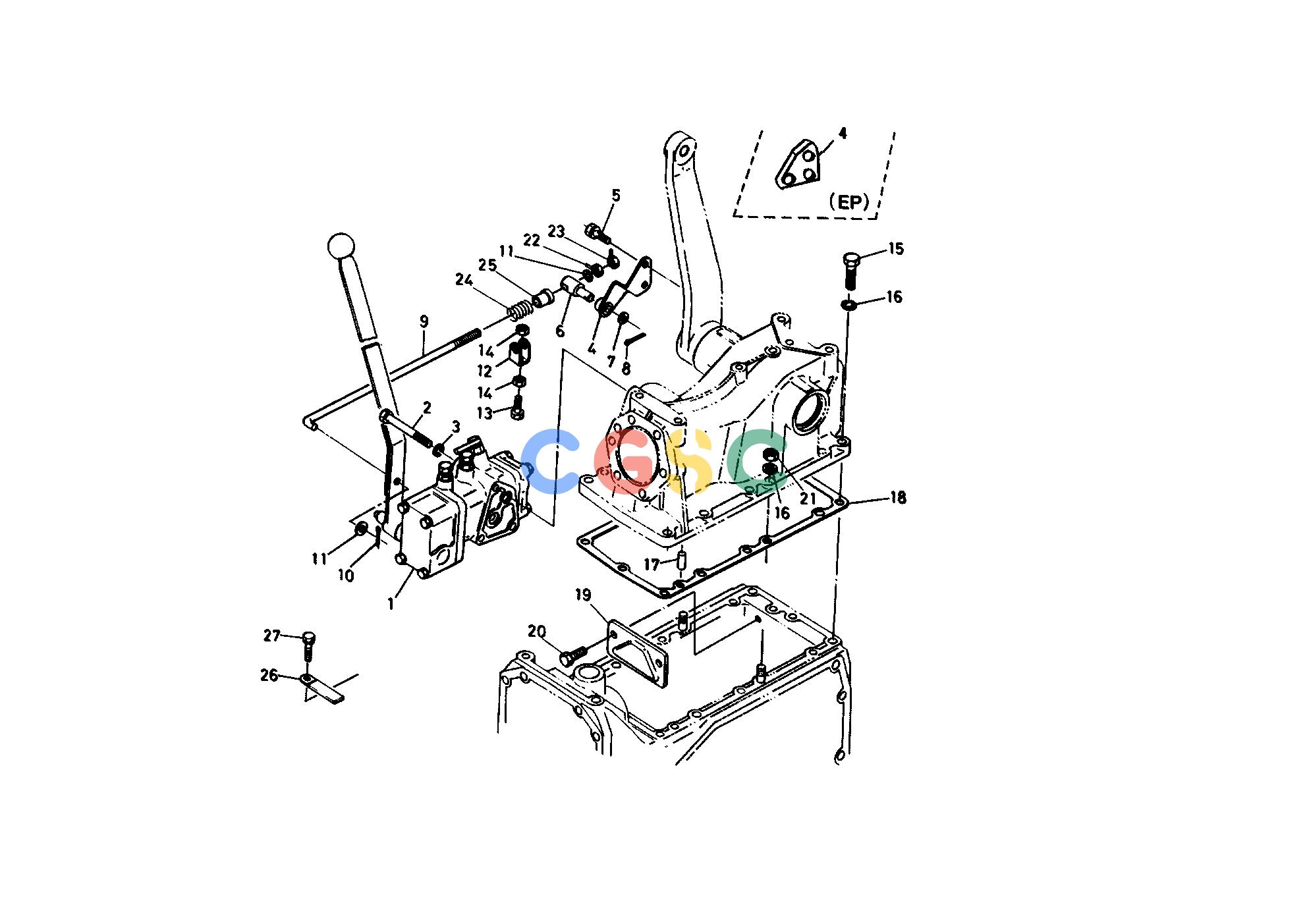

久保田零件查询T04100 CONTROL VALVE ## S.No.;<=50675 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6781037200
|
[1] |
ASSY VALVE CONTROL
|
8.8000(lbs); 4.000
|
| 002. |
0115050880
|
[3] |
BOLT
|
0.0748(lbs); 0.034
|
| 003. |
0451250080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 004. |
6711137510
|
[1] |
HOLDER
|
0.2090(lbs); 0.095
|
| 005. |
0112350822
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 006. |
6659136540
|
[1] |
SHAFT
|
0.0748(lbs); 0.034
|
| 007. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 008. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 009. |
6711137520
|
[1] |
ROD CHECK
|
0.2244(lbs); 0.102
|
| 010. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 011. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 012. |
6661136320
|
[1] |
INTERLOCKER
|
0.0484(lbs); 0.022
|
| 013. |
0115050825
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 014. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 015. |
0112051035
|
[11] |
BOLT
|
0.0660(lbs); 0.030
|
| 016. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 017. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 018. |
6711136220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 019. |
6711136910
|
[1] |
PLATE O/P ARM
|
0.4840(lbs); 0.220
|
| 020. |
0112350822
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 021. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 022. |
6711137540
|
[1] |
NUT 1
|
0.0132(lbs); 0.006
|
| 022. |
0211450080
|
[1] |
NUT 1
|
0.0110(lbs); 0.005
|
| 023. |
0281050080
|
[1] |
NUT 2
|
0.0308(lbs); 0.014
|
| 023. |
0211250080
|
[1] |
NUT 2
|
0.0066(lbs); 0.003
|
| 024. |
6711137590
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 025. |
6711137610
|
[1] |
HOLDER SPRING
|
0.0330(lbs); 0.015
|
| 026. |
3715034460
|
[2] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 027. |
0112051020
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
