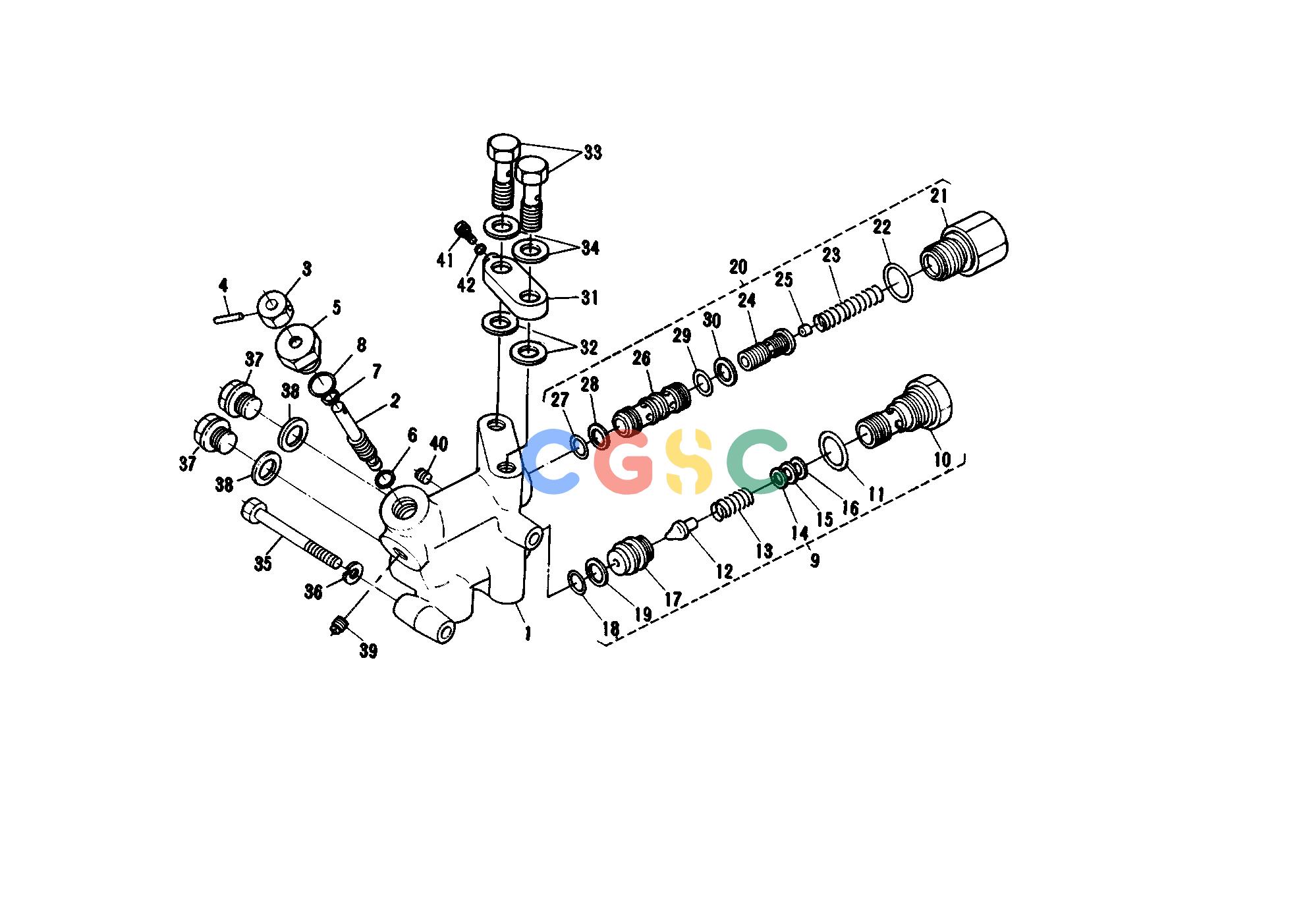

久保田零件查询T04600 HYDRAULIC BLOCK ## S.No.;<=52926 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
888 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6781038110
|
[1] |
CONNECTOR
|
5.3900(lbs); 2.450
|
| 002. |
6781038120
|
[1] |
VALVE
|
0.0770(lbs); 0.035
|
| 003. |
6781038160
|
[1] |
NUT
|
0.0330(lbs); 0.015
|
| 004. |
0541100316
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 005. |
6781038130
|
[1] |
PLUG
|
0.0836(lbs); 0.038
|
| 006. |
0481100080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 007. |
6781038150
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 008. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 009. |
6781038200
|
[1] |
ASSY VALVE RELIEF
|
0.3300(lbs); 0.150
|
| 011. |
0481100220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 012. |
6711137330
|
[1] |
POPPET
|
0.0176(lbs); 0.008
|
| 013. |
6711137360
|
[1] |
SPRING 1
|
0.0220(lbs); 0.010
|
| 014. |
6711137530
|
[3] |
SHIM 1
|
0.0022(lbs); 0.001
|
| 015. |
6711137580
|
[1] |
SHIM 2
|
0.0022(lbs); 0.001
|
| 016. |
6781037590
|
[3] |
SHIM 3
|
0.0022(lbs); 0.001
|
| 017. |
6781038220
|
[1] |
SEAT VALVE RELIEF
|
0.0704(lbs); 0.032
|
| 018. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 019. |
6781038230
|
[1] |
RING
|
0.0000(lbs); 0.000
|
| 020. |
6781038300
|
[1] |
ASSY DIVIDER
|
0.0000(lbs); 0.000
|
| 021. |
6781038310
|
[1] |
DIVIDER 1
|
0.0000(lbs); 0.000
|
| 022. |
0481100220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 023. |
6781038320
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 025. |
6781038340
|
[1] |
DAMPER
|
0.0022(lbs); 0.001
|
| 026. |
6781038350
|
[1] |
DIVIDER 2
|
0.0550(lbs); 0.025
|
| 027. |
0481105130
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 028. |
6781038360
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 029. |
0481105150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
6781038370
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 031. |
6781038410
|
[1] |
CAP
|
0.0000(lbs); 0.000
|
| 031. |
6781038412
|
[1] |
CAP
|
0.1760(lbs); 0.080
|
| 032. |
6781038420
|
[1] |
GASKET
|
0.0154(lbs); 0.007
|
| 032. |
0471400120
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 033. |
6781037880
|
[2] |
BOLT
|
0.0726(lbs); 0.033
|
| 034. |
0471400120
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 035. |
0115050875
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 036. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 037. |
0631125030
|
[2] |
PLUG
|
0.1122(lbs); 0.051
|
| 038. |
0471400300
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 039. |
0631210030
|
[1] |
PLUG
|
0.0638(lbs); 0.029
|
| 040. |
6781038380
|
[1] |
PLUG
|
0.0220(lbs); 0.010
|
| 041. |
6781038430
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 042. |
0481110050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
