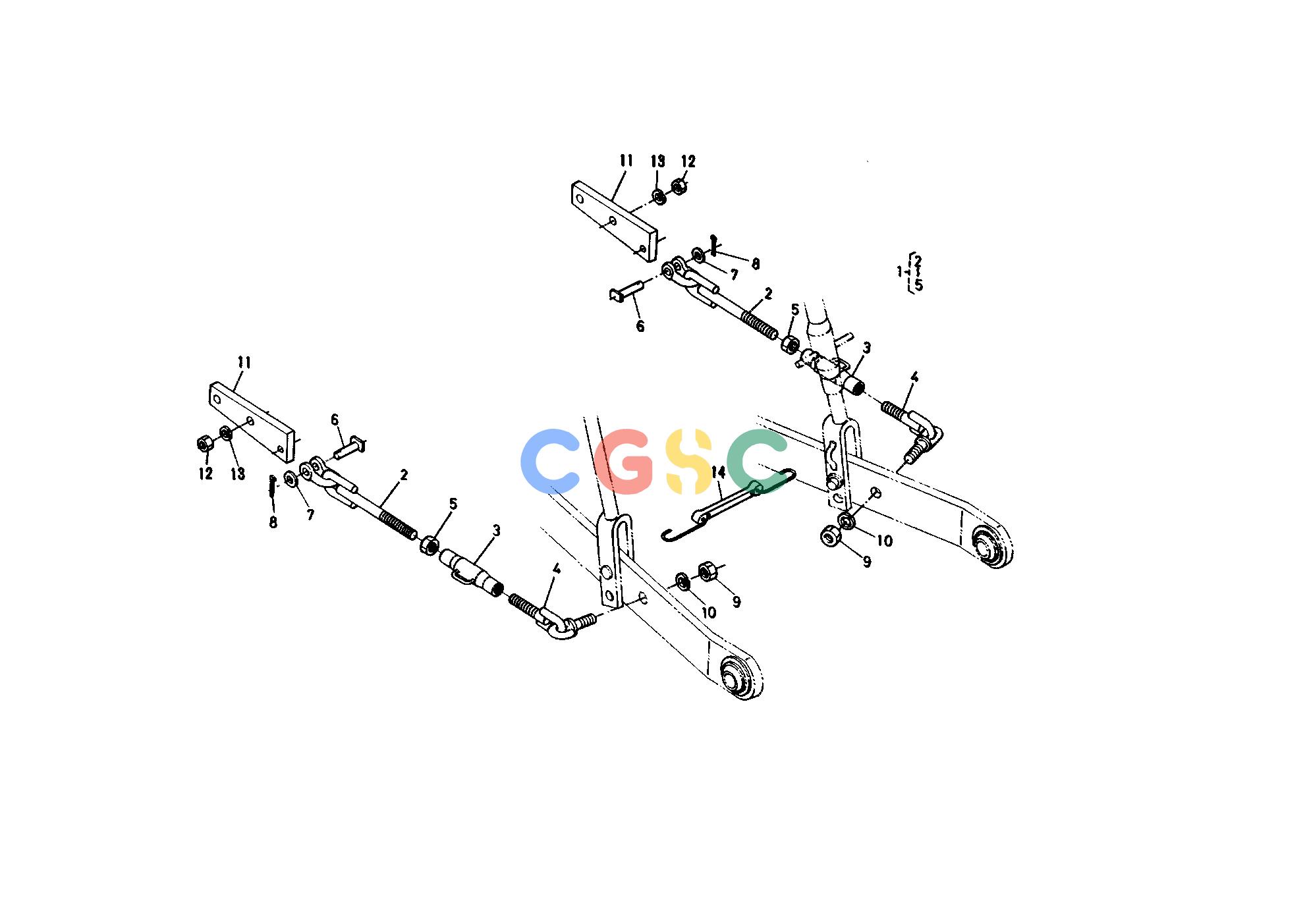

久保田零件查询T09600 CHECK CHAIN AND BRACKET HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780071500
|
[1] |
ASSY CHAIN CHECK
|
0.0000(lbs); 0.000
|
| 001. |
6783071500
|
[1] |
ASSY CHAIN CHECK
|
1.6060(lbs); 0.730
|
| 002. |
6780071510
|
[2] |
CHAIN 1
|
0.7040(lbs); 0.320
|
| 002. |
6783071510
|
[2] |
CHAIN 1
|
0.4840(lbs); 0.220
|
| 003. |
3818771840
|
[2] |
TURNBACKLE
|
0.4950(lbs); 0.225
|
| 003. |
9951122840
|
[2] |
TURNBACKLE
|
0.4180(lbs); 0.190
|
| 004. |
6780071820
|
[2] |
CHAIN 2
|
0.6820(lbs); 0.310
|
| 004. |
6783071820
|
[2] |
CHAIN 2
|
0.6050(lbs); 0.275
|
| 005. |
0205450140
|
[2] |
NUT
|
0.0506(lbs); 0.023
|
| 006. |
9957122820
|
[2] |
PIN
|
0.0660(lbs); 0.030
|
| 007. |
0401150100
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 008. |
0551150318
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 009. |
0207450160
|
[2] |
NUT
|
0.0638(lbs); 0.029
|
| 010. |
0451250160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 011. |
6780071550
|
[2] |
BRACKET
|
1.5180(lbs); 0.690
|
| 012. |
0217450120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 013. |
0451250140
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 014. |
3818771750
|
[1] |
RUBBER ABSORBER
|
0.0000(lbs); 0.000
|
