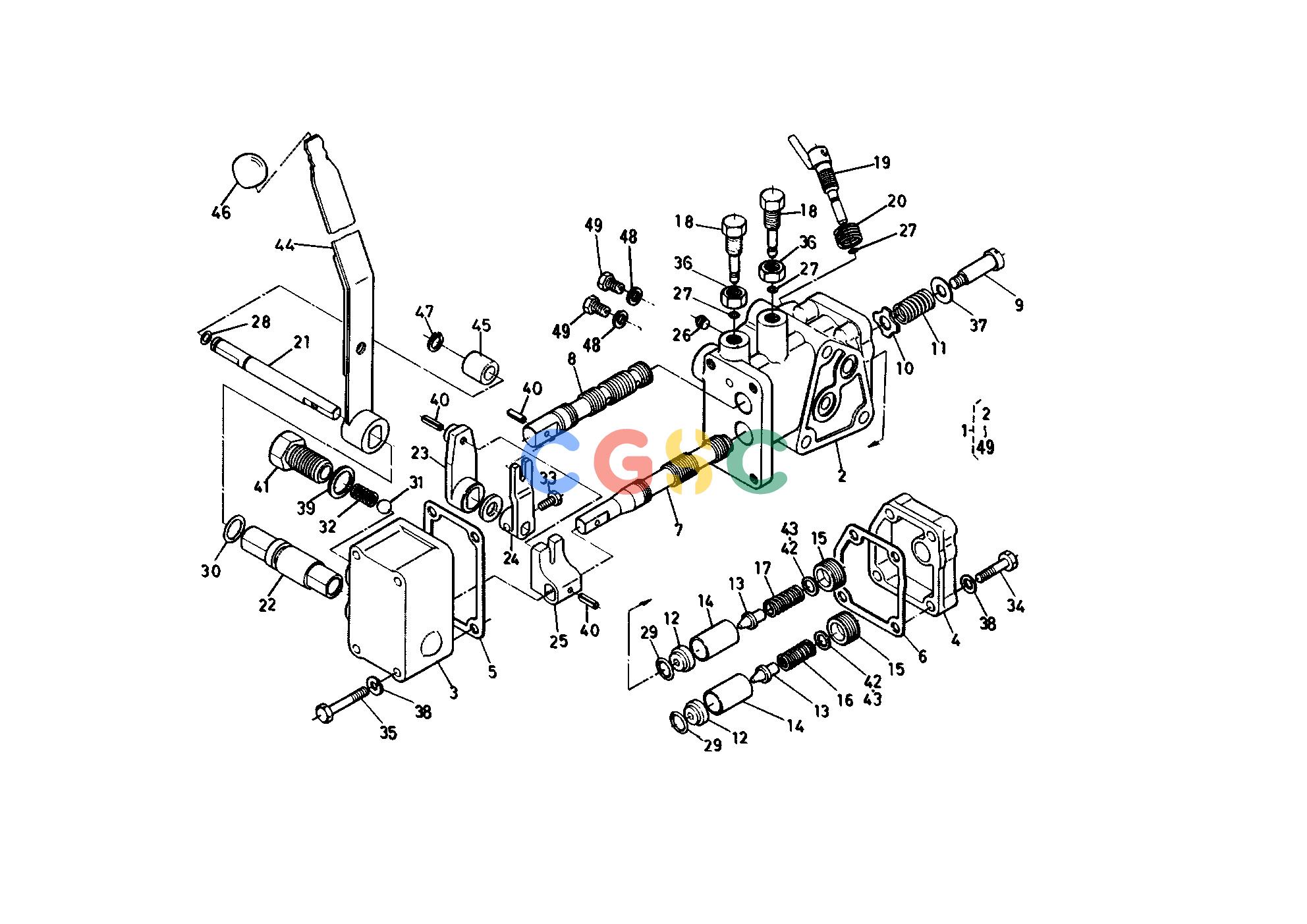

久保田零件查询T10600 CONTROL VALVE [SECTION PARTS] ## S.No.;<=50675 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6781037200
|
[1] |
ASSY VALVE CONTROL
|
8.8000(lbs); 4.000
|
| 003. |
6711137220
|
[1] |
COVER VALVE
|
0.4026(lbs); 0.183
|
| 004. |
6711137230
|
[1] |
COVER RELIEF
|
0.1760(lbs); 0.080
|
| 005. |
6711137240
|
[1] |
GASKET 1
|
0.0022(lbs); 0.001
|
| 006. |
6711137250
|
[1] |
GASKET 2
|
0.0022(lbs); 0.001
|
| 009. |
6711137280
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 010. |
6711137290
|
[1] |
WASHER
|
0.0066(lbs); 0.003
|
| 011. |
6711137310
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 012. |
6711137320
|
[2] |
HOLDER
|
0.0220(lbs); 0.010
|
| 013. |
6711137330
|
[2] |
POPPET
|
0.0176(lbs); 0.008
|
| 014. |
6711137340
|
[2] |
COLLAR
|
0.0462(lbs); 0.021
|
| 015. |
6711137350
|
[2] |
SCREW ADJUSTING
|
0.0440(lbs); 0.020
|
| 016. |
6711137360
|
[1] |
SPRING RELIEF 1
|
0.0220(lbs); 0.010
|
| 017. |
6711137370
|
[1] |
SPRING RELIEF 2
|
0.0220(lbs); 0.010
|
| 018. |
6711137380
|
[2] |
BOLT ADJUSTING 1
|
0.0506(lbs); 0.023
|
| 019. |
6711137390
|
[1] |
BOLT ADJUSTING 2
|
0.0880(lbs); 0.040
|
| 020. |
6711137420
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 021. |
6711137430
|
[1] |
SHAFT GUIDE ARM 1
|
0.1540(lbs); 0.070
|
| 022. |
6711137440
|
[1] |
SHAFT GUIDE ARM 2
|
0.1650(lbs); 0.075
|
| 023. |
6711137460
|
[1] |
ARM GUIDE 1
|
0.0440(lbs); 0.020
|
| 024. |
6711137480
|
[1] |
ARM GUIDE 2
|
0.0990(lbs); 0.045
|
| 025. |
6711137490
|
[1] |
ARM SPOOL
|
0.1320(lbs); 0.060
|
| 026. |
9500700140
|
[1] |
PLUG SCREW
|
0.0022(lbs); 0.001
|
| 027. |
0481110040
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 028. |
0481110080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 029. |
0481100120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481100140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 031. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 032. |
6711137560
|
[1] |
SPRING SHIFTER
|
0.0110(lbs); 0.005
|
| 033. |
6711137570
|
[1] |
BOLT
|
0.0198(lbs); 0.009
|
| 034. |
0105050628
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 035. |
0105350655
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 036. |
0211250100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 037. |
0401150100
|
[3] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 038. |
0451250060
|
[8] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 039. |
0471400300
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 040. |
0541100518
|
[3] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 041. |
6659136460
|
[1] |
BOLT
|
0.1188(lbs); 0.054
|
| 042. |
6711137530
|
[1] |
SHIM 1
|
0.0022(lbs); 0.001
|
| 043. |
6711137580
|
[1] |
SHIM 2
|
0.0022(lbs); 0.001
|
| 044. |
6781037410
|
[1] |
LEVER CONTROL
|
0.7150(lbs); 0.325
|
| 045. |
6781037450
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 046. |
6661143240
|
[1] |
GRIP LEVER
|
0.0396(lbs); 0.018
|
| 047. |
0461200100
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 048. |
0472400120
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 049. |
0633135012
|
[2] |
PLUG
|
0.0528(lbs); 0.024
|
