卡特零件查询（735） 114-2401: ALTERNATOR GP-CHARGING
广数供应链运营团队, 15 02月, 2025，浏览：
937 次

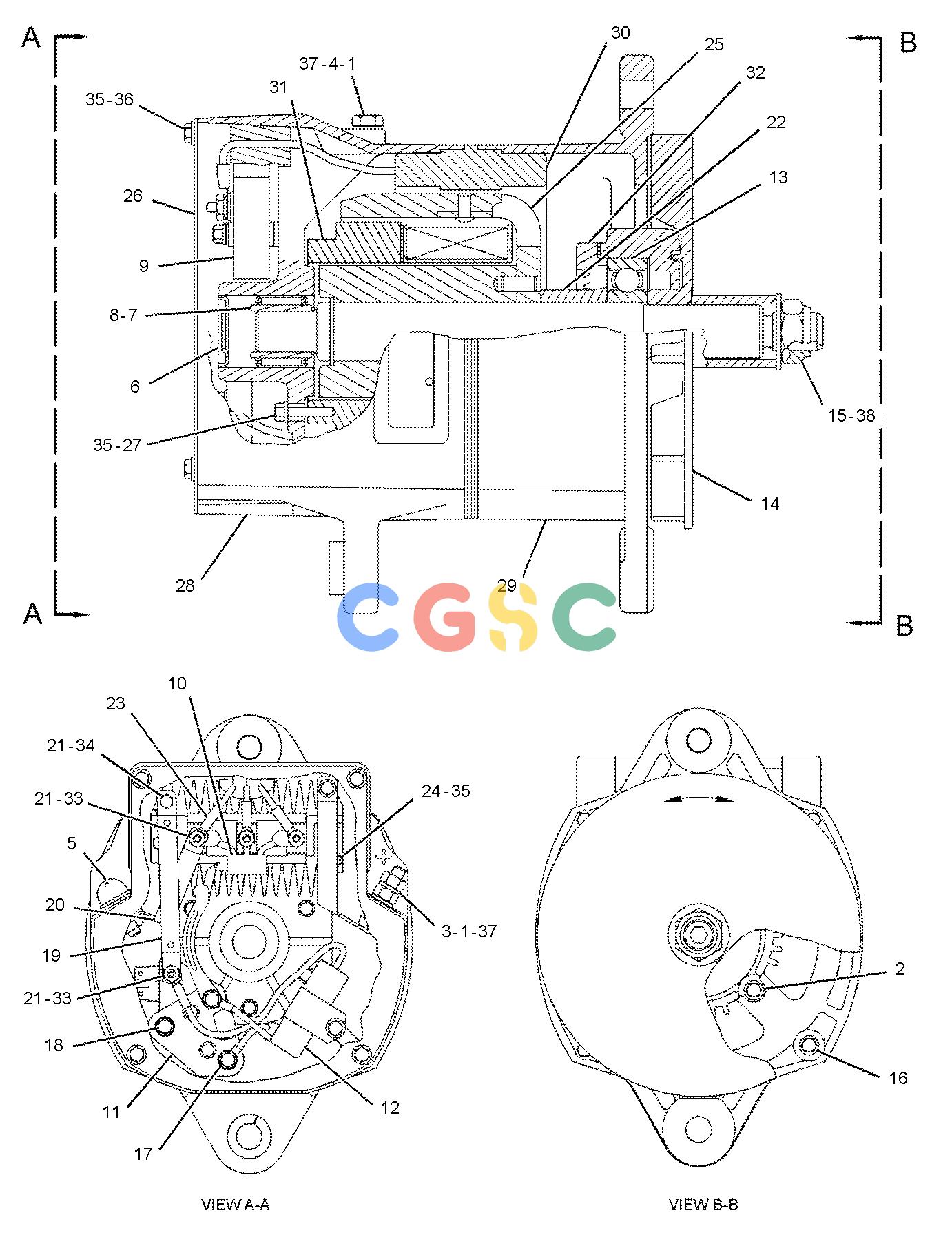

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 2. | 9X-2500 | [4] | SCREW-HEX FLANGE(10-24X38.1-MM) | |
| 3. | 6V-8187 | [1] | NUT(1/4-28-THD) | |
| 4. | 5S-7349 | [1] | BOLT(1/4-20X0.5-IN) | |
| 5. | 9L-6770 | [1] | CAP-DUST | |
| 6. | 9N-0943 | [1] | PLUG-BEARING WELL | |
| 7. | 5P-3418 | [1] | BEARING-ROLLER | |
| 8. | 5P-3419 | [1] | RACE-BEARING INNER | |
| 9. | 9L-6776 | [1] | RECTIFIER AS | |
| 10. | 6N-1944 | [1] | DIODE AS | |
| 11. | 3T-6354 | [1] | REGULATOR AS-VOLTAGE(24-VOLT) | |
| 12. | 105-3763 | [1] | CAPACITOR AS-ALTERNATOR | |
| 13. | 5P-7807 | [1] | BALL BEARING | |
| 14. | 100-6531 | [1] | FAN-ALTERNATOR(11-BLADE) | |
| 15. | 2K-4821 | [1] | LOCKNUT(5/8-18-THD) | |
| 16. | 9S-2009 | [4] | BOLT-FLANGE HEAD(10-24X3.625-IN) | |
| 17. | 6N-1872 | [2] | SCREW AS(8-32X1.25-IN) | |
| 18. | 7N-9023 | [1] | SCREW AS(8-32X26.9-MM) | |
| 19. | 106-7689 | [1] | CONNECTOR-ALTERNATOR | |
| 20. | 106-7690 | [1] | CONNECTOR-ALTERNATOR | |
| 21. | 9B-7233 | [6] | LOCKWASHER | |
| 22. | 100-6532 | [1] | COLLAR-ALTERNATOR | |
| 23. | 2L-8075 | [3] | TERMINAL-RING(14-GA TO 16-GA, NO. 8 SCREW) | |
| 24. | 7N-9021 | [2] | SCREW AS(8-32X1.34-IN) | |
| 25. | 9S-2302 | [1] | ROTOR AS | |
| 26. | 9N-0942 | [1] | PLATE-COVER | |
| 27. | 7X-3353 | [5] | SCREW-HEX HEAD(10X24X19.05-MM) | |
| 28. | 106-7687 | [1] | HOUSING AS-ALTERNATOR | |
| 29. | 2P-5616 | [1] | FRAME-DRIVE END | |
| 30. | 117-9690 | [1] | STATOR AS-ALTERNATOR | |
| 31. | 6N-1945 | [1] | COIL AS-FIELD | |
| 32. | 9S-2390 | [1] | RETAINER | |
| 33. | 4B-2043 | [4] | NUT(8-32-THD) | |
| 34. | 9S-2544 | [2] | SCREW-HEX HEAD(8-32X11.13-MM) | |
| 35. | 8T-0328 | [11] | WASHER-HARD(5.5X10X1-MM THK) | |
| 36. | 030-9612 | [4] | SCREW-FORMING(10-24X0.5-IN) | |
| 37. | 1H-3244 | [2] | LOCKWASHER | |
| 38. | 187-2034 | [1] | NUT-FLANGE(5/8-18-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 9S-2013 | [1] | KIT-RELAY TERMINAL(ALTERNATOR AIR) | |
| | | | (INCLUDES BUSHING, WASHERS, NUT AS & STUD) |
| | 105-3764 | [1] | KIT-ALTERNATOR TERMINAL | |
| | | | (INCLUDES TERMINAL AS, INSULATOR, BUSHING, WASHER, NUTS & LOCKWASHERS) |
