神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.150.AB[02]) - CAB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
357 次

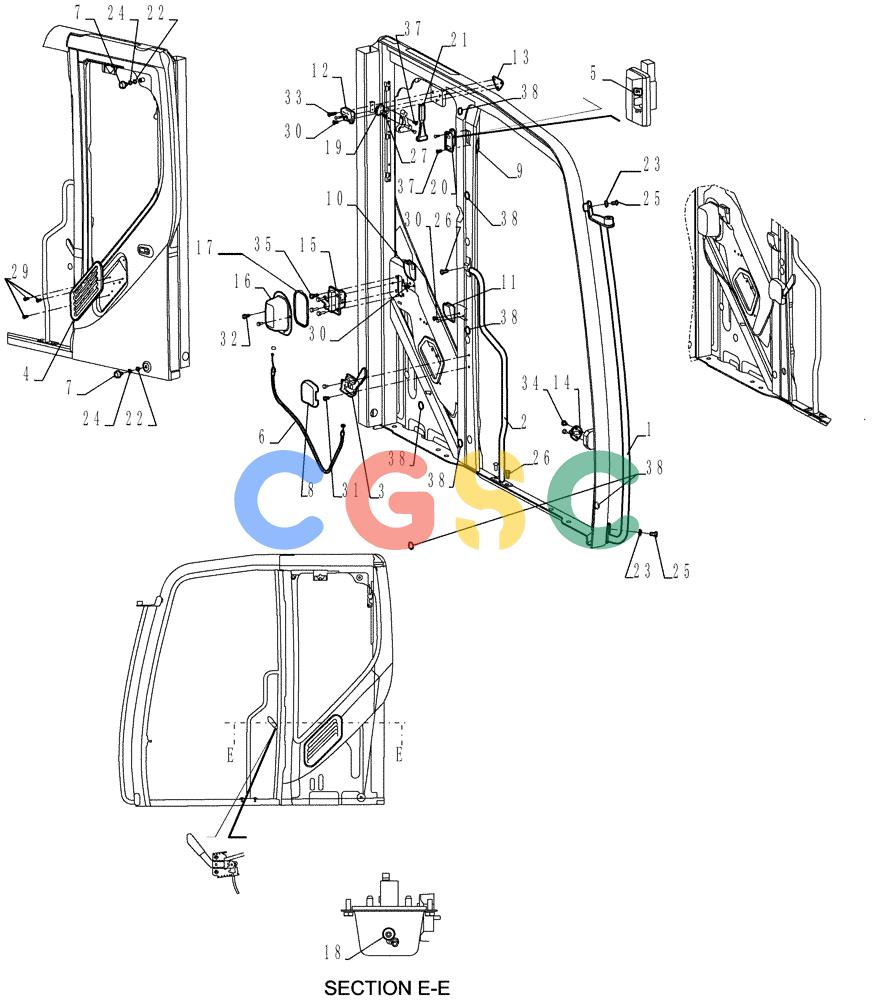

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ02C00031S001 | [1] | HANDLE | KOB |
| 2. | LQ02C00031S002 | [1] | HANDLE | KOB |
| 3. | LQ02C00031S003 | [1] | LEVER | KOB |
| 4. | LQ02C00031S004 | [1] | COVER | KOB Superseded by part number: LQ02C01317F1 |
| 5. | LQ02C00031S005 | [1] | DECAL | KOB |
| 6. | LQ02C00031S006 | [1] | CABLE | KOB |
| 7. | LQ02C00031S007 | [2] | STOP PLUG | KOB |
| 8. | LQ02C00031S008 | [1] | COVER | KOB |
| 9. | LQ02C00031S009 | [1] | TRIM | KOB |
| 10. | LQ02C00031S010 | [1] | HOLDER | KOB |
| 11. | LQ02C00031S011 | [1] | HOLDER | KOB |
| 12. | LQ02C00031S012 | [1] | HOLDER | KOB |
| 13. | LQ02C00031S013 | [1] | PLATE | KOB |
| 14. | LQ02C00031S014 | [1] | STRIKER PLATE | KOB |
| 15. | LQ02C00031S015 | [1] | CATCH | KOB |
| 16. | LQ02C00031S016 | [1] | COVER | KOB |
| 17. | LQ02C00031S017 | [1] | SEAL | KOB |
| 18. | LQ02C00031S018 | [1] | GROMMET | KOB |
| 19. | LQ02C00031S019 | [1] | COAT HOOK | KOB |
| 20. | LQ02C00031S020 | [1] | INTERIOR LIGHT | KOB |
| 21. | LQ02C00031S021 | [1] | HAMMER | KOB |
| 22. | LQ02C00031S022 | [2] | WASHER | KOB |
| 23. | LQ02C00031S023 | [2] | WASHER | KOB |
| 24. | LQ02C00031S024 | [2] | NUT | KOB |
| 25. | LQ02C00031S025 | [2] | BOLT | KOB |
| 26. | LQ02C00031S026 | [3] | BOLT | KOB |
| 27. | LQ02C00031S027 | [2] | SCREW | KOB |
| 29. | LQ02C00031S029 | [3] | BOLT | KOB |
| 30. | LQ02C00031S030 | [5] | SCREW | KOB |
| 31. | LQ02C00031S031 | [2] | BOLT | KOB |
| 32. | LQ02C00031S032 | [2] | BOLT | KOB |
| 33. | LQ02C00031S033 | [2] | SCREW | KOB |
| 34. | LQ02C00031S034 | [2] | SCREW | KOB |
| 35. | LQ02C00031S035 | [4] | BOLT | KOB |
| 37. | LQ02C00031S037 | [4] | SCREW | KOB |
| 38. | LQ02C00031S038 | [10] | COVER | KOB |
