卡特零件查询（735） 237-5513: WARNING GP-BACKUP
广数供应链运营团队, 15 02月, 2025，浏览：
796 次

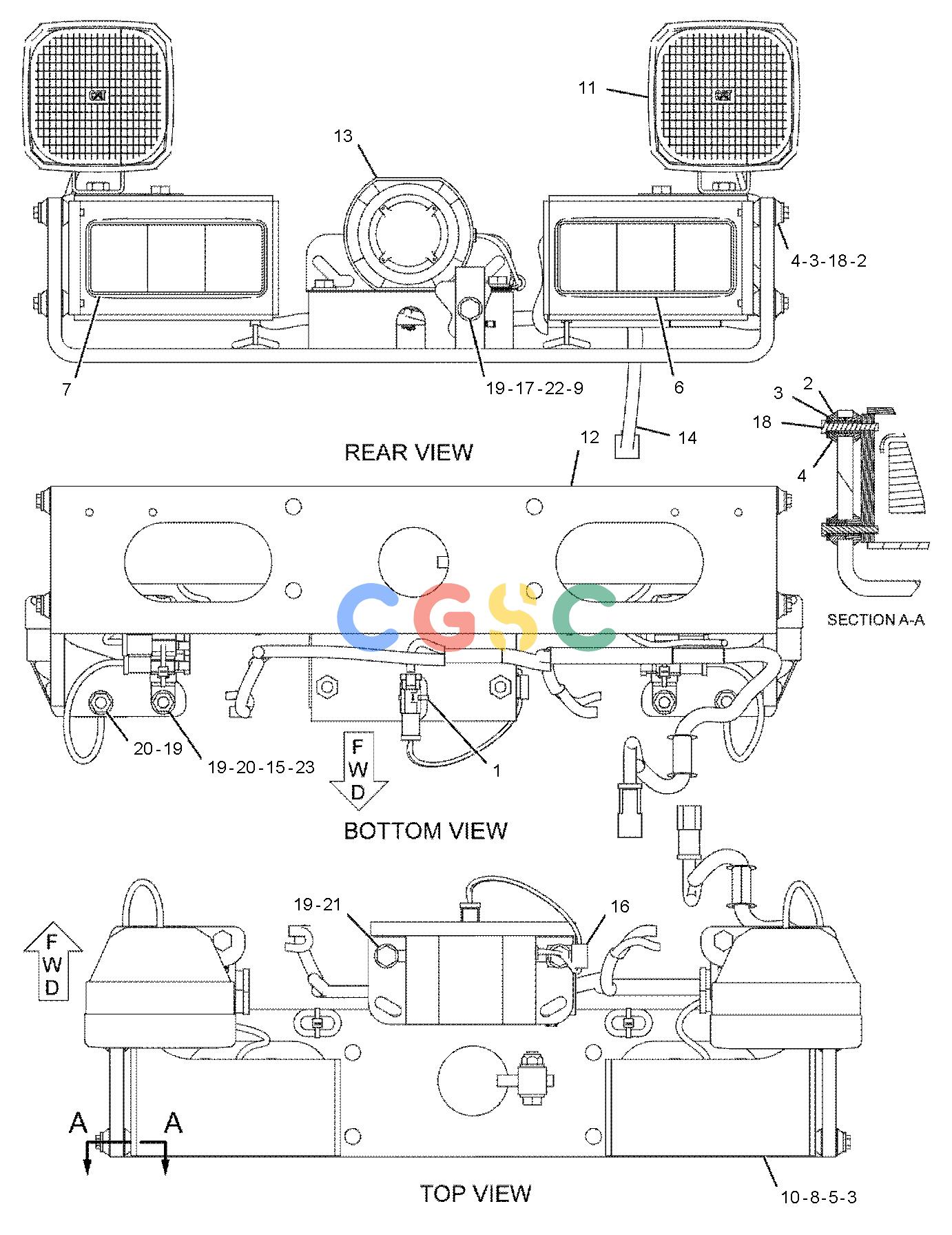

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [5] | STRAP-CABLE | |
| 2. | 8C-5608 | [8] | SPACER(6.5X9.5X25.4-MM THK) | |
| 3. | 8T-2228 | [12] | WASHER-HARD(6.5X17X2-MM THK) | |
| 4. | 9X-9896 | [16] | MOUNT(ISOLATION) | |
| 5. | 124-4111 | [2] | BRACKET | |
| 6. | 149-5534Y | [1] | LAMP GP-SIGNAL(24-VOLT)(STOP, TAIL, TURN, RH) | |
| 7. | 149-5535Y | [1] | LAMP GP-SIGNAL(24-VOLT)(STOP, TAIL, TURN, LH) | |
| 8. | 150-3896 | [4] | STRIP-RUBBER | |
| 9. | 151-7851 | [1] | LATCH | |
| 10. | 154-8482 | [2] | BRACKET AS-LAMP | |
| 11. | 172-9973Y | [2] | LAMP GP-FLOOD(24-VOLT) | |
| 12. | 183-9035 | [1] | PLATE AS-MOUNTING | |
| | 7T-1099 | [3] | LINK | |
| 13. | 213-9100 | [1] | ALARM AS(BACKUP) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(29-CM) | |
| | 5P-5623D | | WIRE-ELECTRICAL(16-GA, BLACK)(0.8-M) | |
| 14. | 239-5042 | [1] | HARNESS AS-REAR LIGHTING | |
| | 155-2270 | [3] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9W-0844 | [14] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 15. | 4P-7581 | [2] | CLIP(LADDER) | |
| 16. | 5P-9085 | [1] | CLIP(LOOP) | |
| 17. | 6V-7744M | [1] | LOCKNUT(M10X1.5-THD) | |
| 18. | 8C-8451M | [8] | BOLT(M6X1X40-MM) | |
| 19. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 21. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 22. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 23. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
