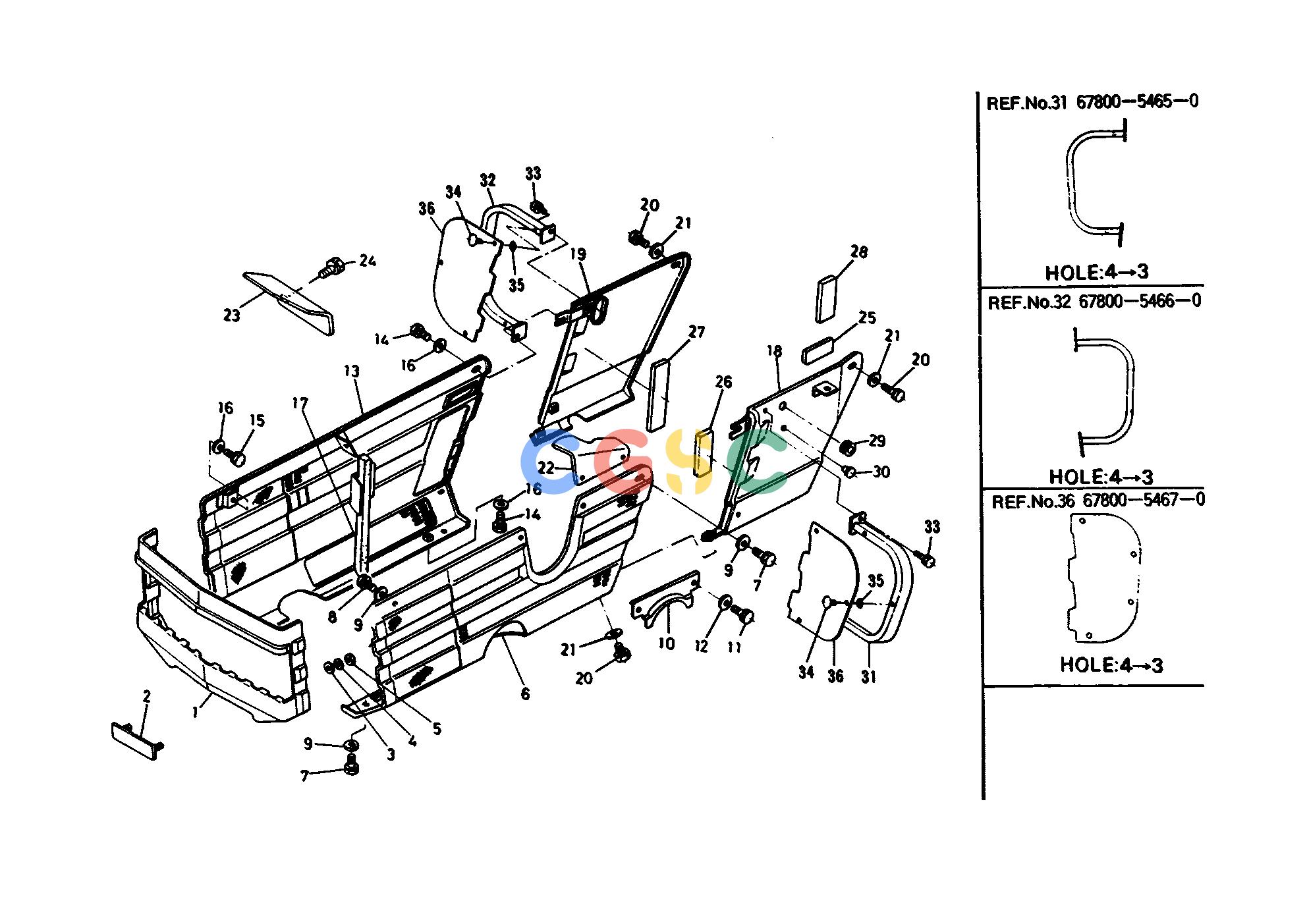

久保田零件查询T07100 SKIRT ## S.No.;>=52927 HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
779 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6740151360
|
[1] |
COVER
|
0.7700(lbs); 0.350
|
| 002. |
6740147230
|
[1] |
NAME PLATE
|
0.0176(lbs); 0.008
|
| 003. |
0401350040
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 004. |
0451250040
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 005. |
0205450040
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 006. |
6630154410
|
[1] |
COVER LH
|
0.0000(lbs); 0.000
|
| 007. |
0112350818
|
[3] |
BOLT
|
0.0264(lbs); 0.012
|
| 008. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 009. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 010. |
6721151450
|
[1] |
COVER
|
0.1870(lbs); 0.085
|
| 010. |
H672051400
|
[1] |
COVER
|
0.1870(lbs); 0.085
|
| 011. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 012. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 013. |
6630154510
|
[1] |
COVER RH
|
0.0000(lbs); 0.000
|
| 014. |
0112350818
|
[3] |
BOLT
|
0.0264(lbs); 0.012
|
| 015. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 016. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 017. |
6751154520
|
[2] |
TAPE
|
0.0088(lbs); 0.004
|
| 018. |
6780054550
|
[1] |
COVER LH
|
0.0000(lbs); 0.000
|
| 018. |
6780054553
|
[1] |
COVER LH
|
0.0000(lbs); 0.000
|
| 018. |
6784054550
|
[1] |
COVER LH
|
0.0000(lbs); 0.000
|
| 019. |
6780054560
|
[1] |
COVER RH
|
0.0000(lbs); 0.000
|
| 019. |
6780054564
|
[1] |
COVER RH
|
0.0000(lbs); 0.000
|
| 020. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 021. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 022. |
6780054930
|
[1] |
PLATE LH
|
0.0000(lbs); 0.000
|
| 023. |
6780054940
|
[1] |
PLATE RH
|
0.0000(lbs); 0.000
|
| 024. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 025. |
3715013920
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 026. |
6780054570
|
[1] |
TAPE 9
|
0.0044(lbs); 0.002
|
| 027. |
6780054580
|
[1] |
TAPE 10
|
0.0022(lbs); 0.001
|
| 028. |
6780054590
|
[1] |
TAPE 11
|
0.0066(lbs); 0.003
|
| 029. |
6751138950
|
[1] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 030. |
3824029570
|
[1] |
PLUG
|
0.0022(lbs); 0.001
|
| 031. |
6780054650
|
[1] |
STAY FOOT COVER LH
|
0.4620(lbs); 0.210
|
| 031. |
6780054652
|
[1] |
STAY FOOT COVER LH
|
0.4840(lbs); 0.220
|
| 032. |
6780054660
|
[1] |
STAY FOOT COVER RH
|
0.3300(lbs); 0.150
|
| 032. |
6780054662
|
[1] |
STAY FOOT COVER RH
|
0.4840(lbs); 0.220
|
| 033. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 034. |
3135129870
|
[6] |
STOPPER
|
0.0022(lbs); 0.001
|
| 035. |
0481100080
|
[6] |
O RING
|
0.0022(lbs); 0.001
|
| 036. |
6780054670
|
[2] |
SHIELD WIND
|
0.1540(lbs); 0.070
|
| 036. |
6780054673
|
[2] |
SHIELD WIND
|
0.1430(lbs); 0.065
|
