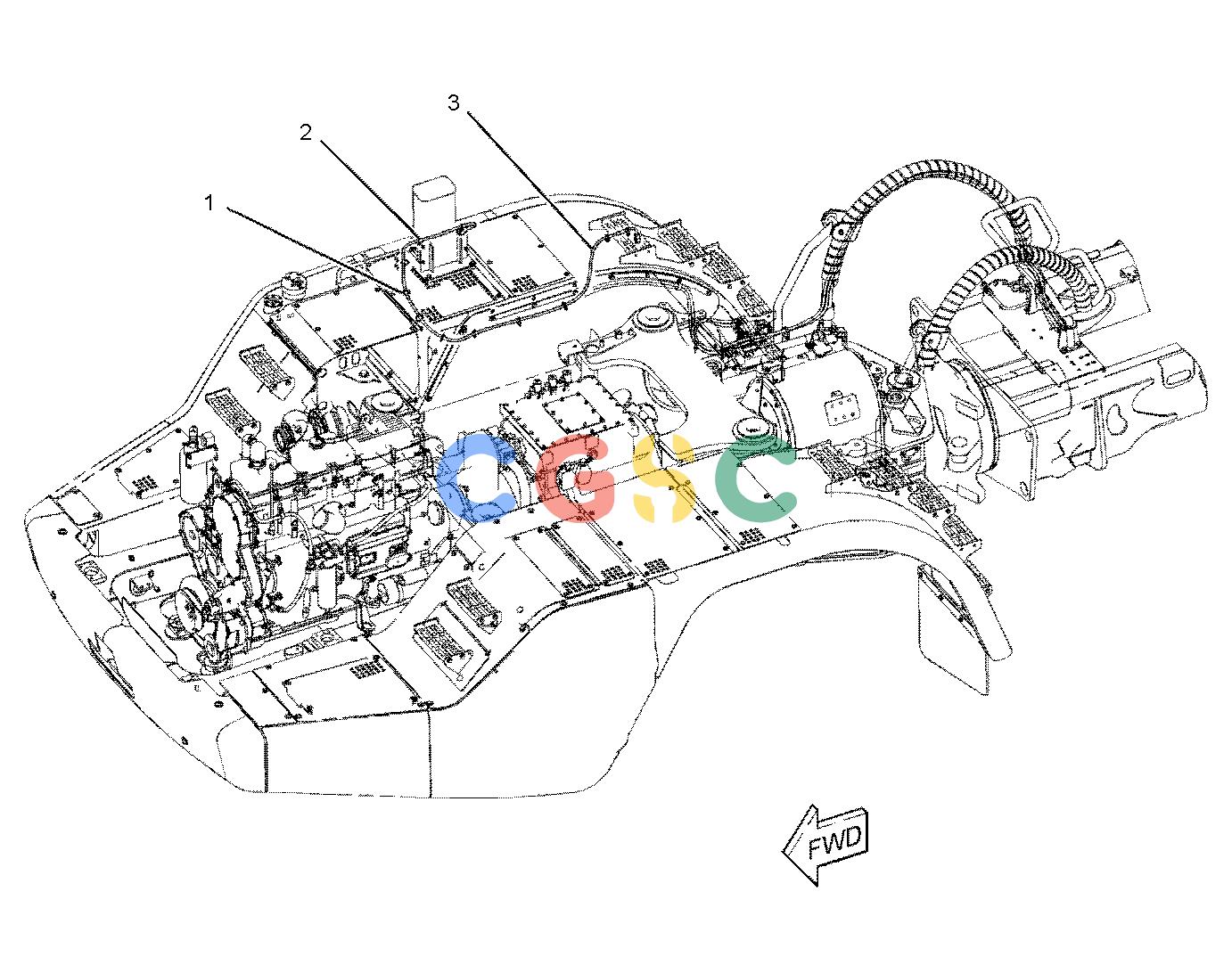

卡特零件查询（735） 194-4025: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
603 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [17] | STRAP-CABLE | |
| 2. | 176-0274 | [1] | HARNESS AS-ENGINE(ELECTRONIC CONTROL) | |
| | 9X-3401 | [12] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| | 3S-2093 | [2] | STRAP-CABLE | |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | | | ( EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 102-8803 | [4] | KIT-RECEPTACLE(3-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 3E-3371 | [4] | WEDGE-RECEPTACLE LOCK(3-PIN) | |
| | 8T-8737 | [44] | PLUG-SEAL | |
| | 114-8843E | | SLEEVE-PLASTIC(260-CM) | |
| | E | | SLEEVE-PLASTIC(15-CM) |
| | 155-2270 | [7] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS & WEDGE) |
| | 126-1774 | [1] | COVER-CONNECTOR | |
| | 160-7690 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| 3. | 0S-0509 | [2] | BOLT(3/8-16X0.75-IN) | |
| 4. | 104-6202 | [2] | CLIP(LADDER) | |
| 5. | 130-5300 | [1] | CLIP | |
| 6. | 4P-7581 | [1] | CLIP(LADDER) | |
| 7. | 4P-8134 | [7] | CLIP(LADDER) | |
| 8. | 5M-2894 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 9. | 5P-8247 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 10. | 6F-7316 | [2] | BOLT(5/8-18X1-IN) | |
| | E | | ORDER BY THE CENTIMETER |
