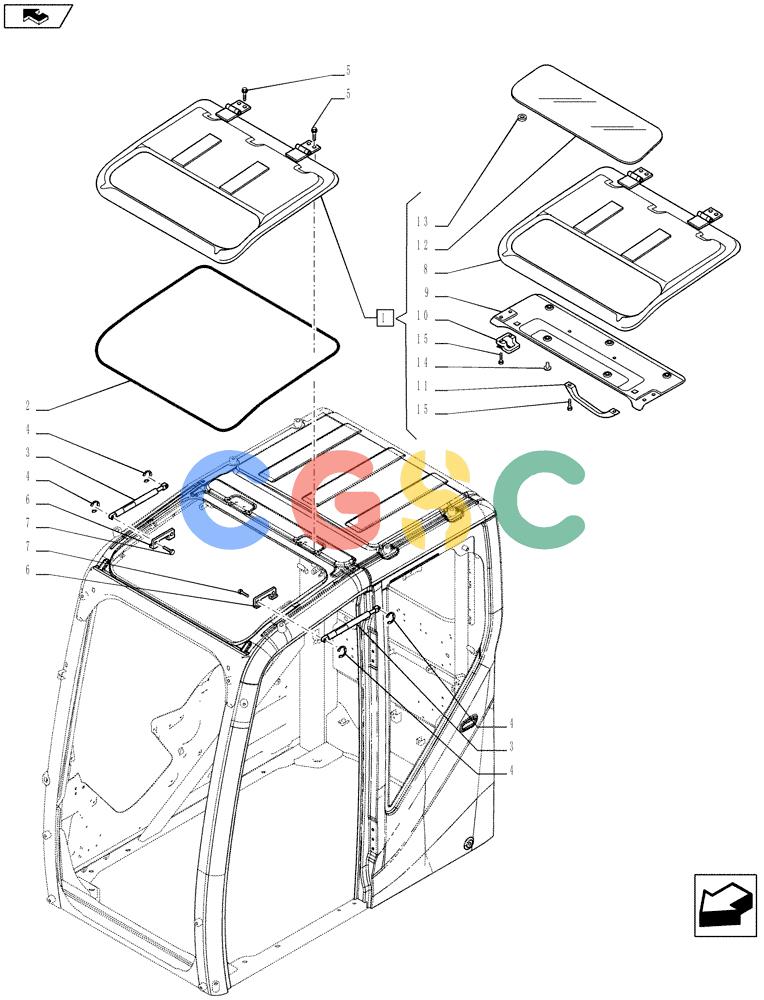

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.150.AB[13]) - CAB, WINDOW, ROOF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ02C01322F1 | [1] | WINDOW | SMAssy, Contains Ref. 8 - 15 |
| 2. | LQ02C01320S002 | [1] | WEATHERSTRIP | SM |
| 3. | LQ02C01320S003 | [2] | SPRING | SM |
| 4. | LQ02C01320S004 | [4] | RING | SM |
| 5. | LQ02C01304S005 | [4] | BOLT | KOB Superseded by part number: ZM22C08016 |
| 6. | LQ02C01320S006 | [2] | BRACKET | SM |
| 7. | LQ02C01320S007 | [4] | SCREW | SM |
| 8. | LQ02C01322S001 | [1] | Incl. in Ref. 1 | |
| 9. | LQ02C01322S002 | [1] | Incl. in Ref. 1 | |
| 10. | LQ02C01322S003 | [2] | Incl. in Ref. 1 | |
| 11. | LQ02C01322S004 | [1] | Incl. in Ref. 1 | |
| 12. | LQ02C01322S005 | [1] | GLASS | KOBIncl. in Ref. 1 |
| 13. | LQ02C01301S010 | [4] | SPACER | SMIncl. in Ref. 1 |
| 14. | LQ02C00032S014 | [5] | CLIP | KOBIncl. in Ref. 1 |
| 15. | LQ02C01320S007 | [6] | SCREW | SMIncl. in Ref. 1 |
