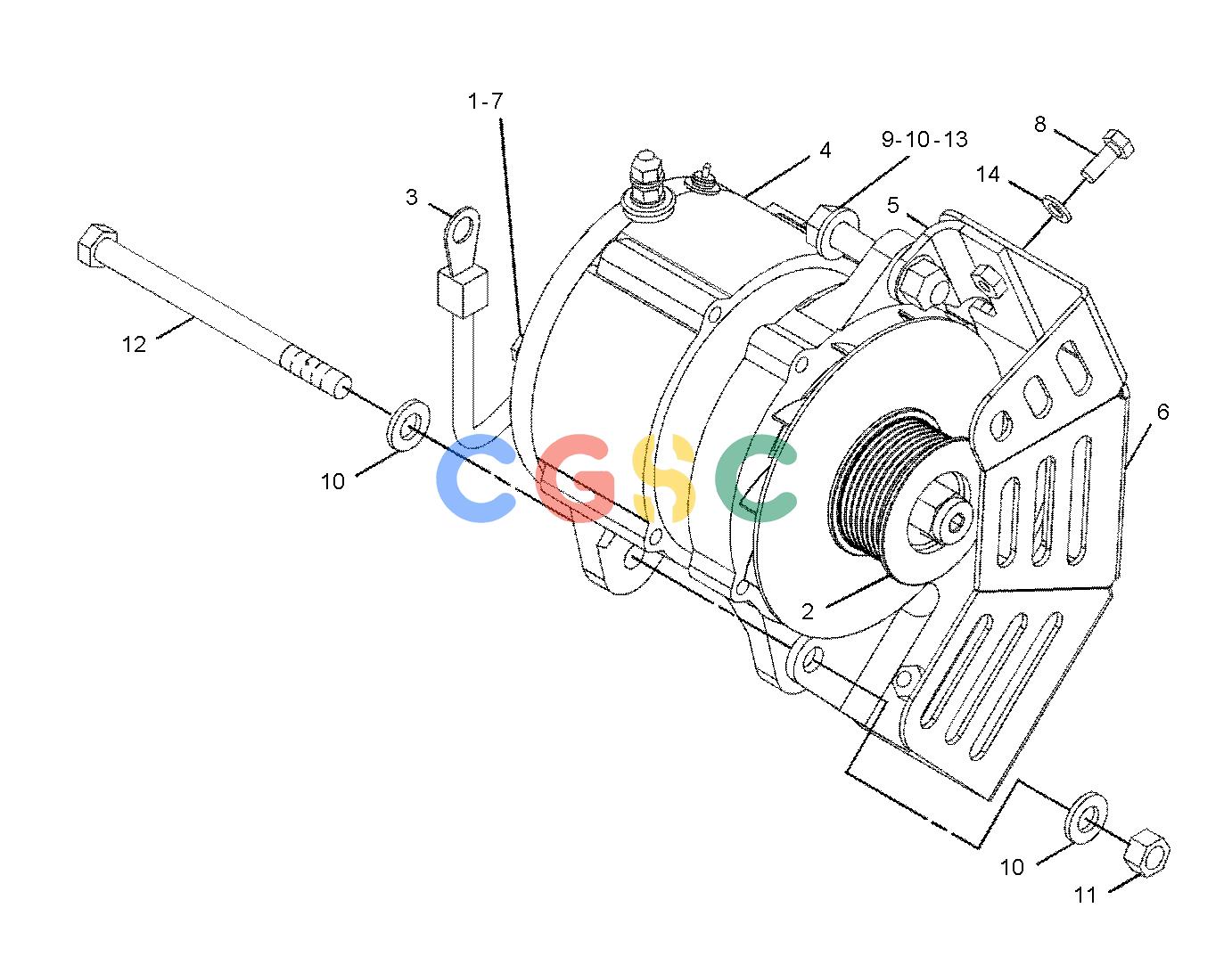

卡特零件查询（735） 187-9076: ALTERNATOR GP-CHARGING
广数供应链运营团队, 15 02月, 2025，浏览：
689 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5G-2308 | [1] | SPACER(7.50X12.7X10-MM THK) | |
| 2. | 123-0791 | [1] | PULLEY(8-GROOVE) | |
| 3. | 179-8318 | [1] | WIRE AS | |
| 4. | 114-2401Y | [1] | ALTERNATOR GP-CHARGING(75-AMPERE) | |
| 5. | 234-3412 | [1] | BRACKET AS | |
| | 159-9540M | [2] | NUT-WELD(M8X1.25-THD) | |
| 6. | 234-4772 | [1] | PLATE | |
| 7. | 4M-5281 | [1] | BOLT(1/4-20X0.75-IN) | |
| 8. | 6V-5217M | [2] | BOLT(M8X1.25X20-MM) | |
| 9. | 6V-8188 | [1] | NUT(1/2-13-THD) | |
| 10. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 12. | 8T-7930M | [1] | BOLT(M12X1.75X160-MM) | |
| 13. | 8T-9389 | [1] | BOLT(1/2-13X2.75-IN) | |
| 14. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
