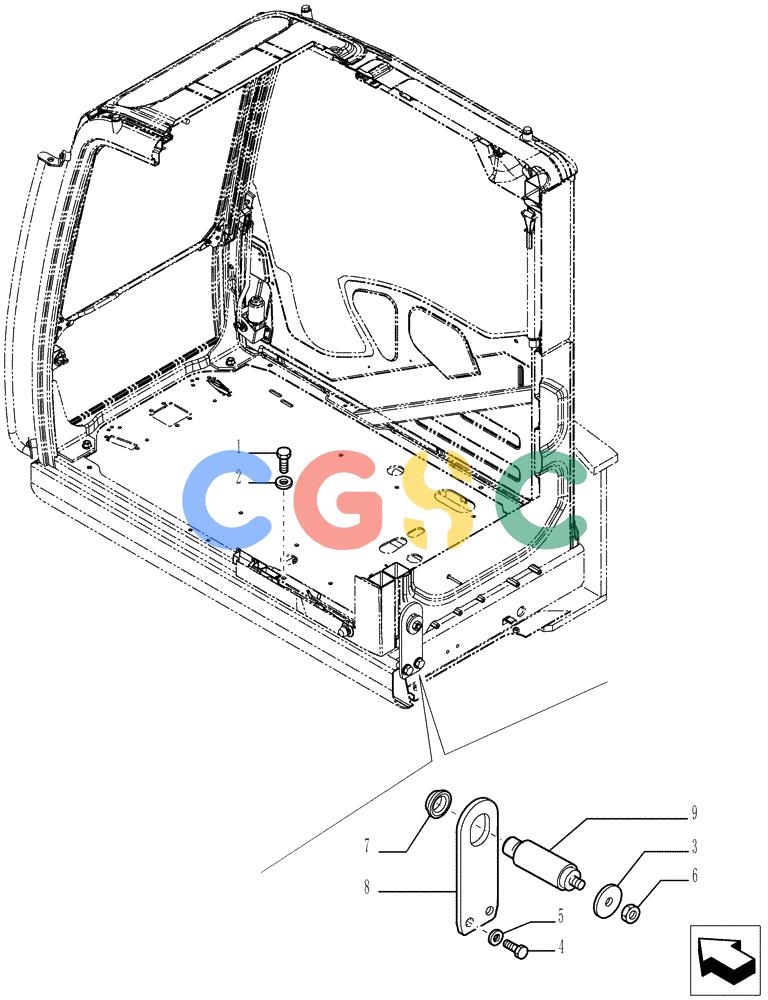

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.150.BB) - CAB SUPPORT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 2. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 3. | LQ02C01276P1 | [1] | WASHER | SM |
| 4. | ZS18C20045 | [2] | SCREW,Hex, M20 x 45mm | KOBM20x2.50x45mm |
| 5. | ZW16H20000 | [2] | WASHER | KOBID 21 x OD 40 x Th 4.5mm |
| 6. | ZN17C20012 | [1] | NUT | KOBM20 Superseded by part number: ZN18C20012 |
| 7. | LQ02C01193P1 | [1] | INSULATOR | SM |
| 8. | LQ02C01325P1 | [1] | PLATE | SM |
| 9. | LQ02C01324P1 | [1] | PIN | KOB |
