卡特零件查询（735） 238-8543: BATTERY & WIRING GP
广数供应链运营团队, 15 02月, 2025，浏览：
352 次

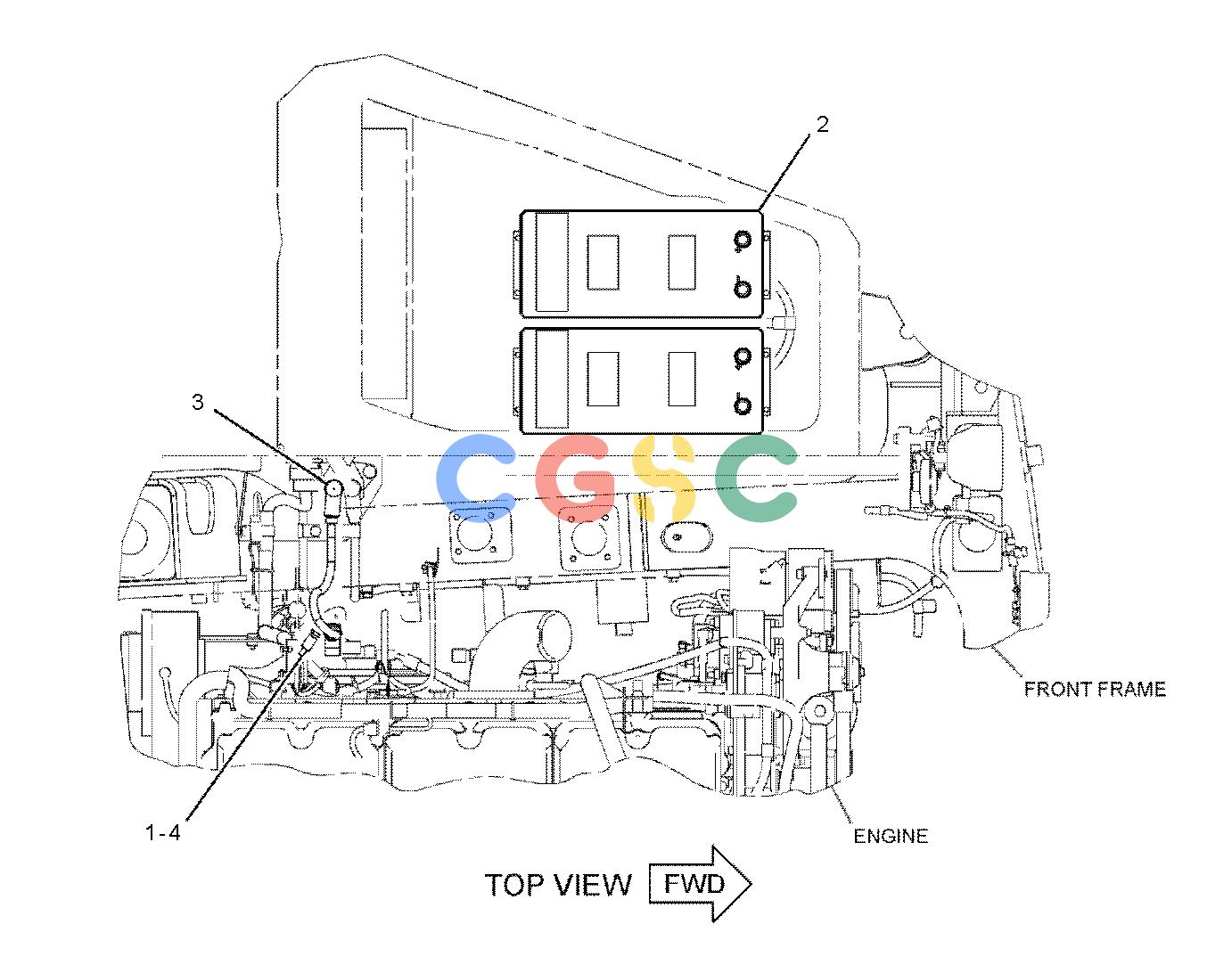

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2G-8767 | [5] | WASHER(10.5X60X3-MM THK) | |
| 2. | 179-0006Y | [1] | SWITCH GP-MAGNETIC(24-VOLT TO 32-VOLT)(SECONDARY STEERING RELAY) | |
| 3. | 6G-2256 | [5] | CLAMP | |
| 4. | 7U-9542 | [1] | PLATE-CLAMPING | |
| 5. | 9X-9720B | [2] | BATTERY(12-VOLT)(DRY) | |
| | | | (EACH INCLUDES) |
| | 7N-0060 | [6] | VENT AS | |
| | | | -OR- |
| | 153-5700B | [2] | BATTERY AS(12-VOLT, 1125-CCA)(WET) | |
| | | | (EACH INCLUDES) |
| | 123-1373 | [6] | CAP AS-FILLER(7/8-9-THD) | |
| 6. | 124-5814Y | [1] | BLOCK GP-JUNCTION(BATTERY) | |
| 7. | 176-3393 | [2] | STUD | |
| 8. | 188-6087 | [1] | PLATE AS | |
| 9. | 190-6300 | [1] | CABLE AS(NEGATIVE) | |
| | 3S-6050 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 037-5197 | [1] | BOOT | |
| | 235-2678 | [1] | TERMINAL-RING | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(128-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| 10. | 190-7429 | [1] | CABLE AS(STARTER, GROUND) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(54-CM) | |
| | 235-2677 | [1] | TERMINAL-RING | |
| | 235-2678 | [1] | TERMINAL-RING | |
| 11. | 192-5877 | [1] | CABLE AS(POSITIVE) | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 5P-0761E | | CABLE(00-GA, RED)(128-CM) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 235-2677 | [1] | TERMINAL-RING | |
| 12. | 193-7316 | [1] | CABLE AS(DISCONNECT TO GROUND) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(128-CM) | |
| | 235-2678 | [2] | TERMINAL-RING | |
| 13. | 193-7892 | [1] | CABLE AS(STEERING SUPPLY) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(108-CM) | |
| | 037-5197 | [2] | BOOT | |
| | 235-2678 | [2] | TERMINAL-RING | |
| 14. | 193-7894 | [1] | CABLE AS(STEERING, GROUND) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(47-CM) | |
| | 235-2678 | [2] | TERMINAL-RING | |
| 15. | 193-7895 | [1] | CABLE AS(STARTER, POSITIVE) | |
| | 5P-0761E | | CABLE(00-GA, RED)(60-CM) | |
| | 8N-0869 | [2] | COVER-TERMINAL(RED) | |
| | 235-2677 | [2] | TERMINAL-RING | |
| 16. | 193-7896 | [1] | CABLE AS(STEERING RELAY) | |
| | 5P-0761E | | CABLE(00-GA, RED)(300-CM) | |
| | 8N-0869 | [2] | COVER-TERMINAL(RED) | |
| | 235-2677 | [1] | TERMINAL-RING | |
| | 235-2678 | [1] | TERMINAL-RING | |
| 17. | 194-3173 | [1] | PLATE AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 18. | 200-0933 | [1] | PLATE | |
| 19. | 277-9912 | [1] | BRACKET AS-STEERING | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 20. | 206-0154 | [1] | CABLE AS(LINK) | |
| | 3S-6050 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 5P-0761E | | CABLE(00-GA, RED)(43-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | | | (EACH COVER AS. INCLUDES) |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| 21. | 238-3240Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 22. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 23. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 24. | 263-6342 | [28] | CLIP | |
| 25. | 8T-4121 | [36] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 27. | 8T-4136M | [31] | BOLT(M10X1.5X25-MM) | |
| 28. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 29. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 30. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 31. | 8T-4171M | [3] | BOLT(M6X1X12-MM) | |
| 32. | 8T-4185M | [1] | BOLT(M10X1.5X50-MM) | |
| 33. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 34. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 35. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 36. | 9X-8256 | [7] | WASHER(6.6X12X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
