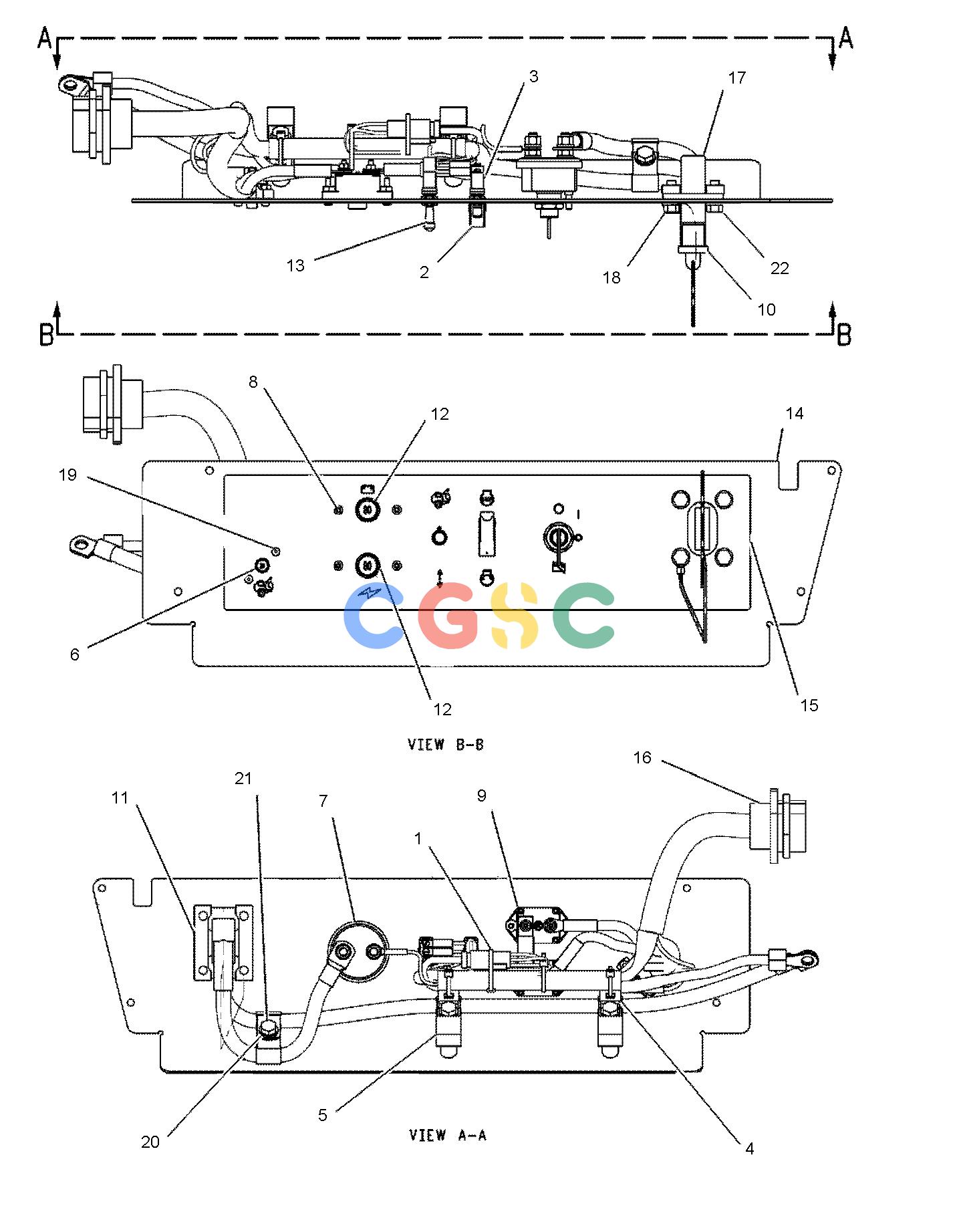

卡特零件查询（735） 186-5855: PANEL GP-CIRCUIT BREAKER
广数供应链运营团队, 15 02月, 2025，浏览：
252 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6L-7008 | [4] | STRAP-CABLE | |
| 2. | 3E-5169 | [1] | GUARD-SWITCH | |
| 3. | 4D-1836 | [1] | SWITCH-TOGGLE(ENGINE SHUTDOWN) | |
| 4. | 4P-8134 | [2] | CLIP(LADDER) | |
| 5. | 6D-3479 | [8] | CLIP(LOOP) | |
| 6. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(HOOD) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 7. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 8. | 7U-4891 | [4] | SCREW(10-32X1-IN) | |
| 9. | 7V-9275 | [1] | STRAP | |
| 10. | 8S-2634 | [1] | COVER AS | |
| | 2P-2975 | [2] | SEAL-O-RING | |
| 11. | 8S-4211 | [2] | PLATE | |
| 12. | 9S-4693 | [2] | CIRCUIT BREAKER AS(80-AMPERE)(MAIN/ALT) | |
| | | | (EACH INCLUDES) |
| | 1H-3244 | [2] | LOCKWASHER | |
| | 7X-3182 | [2] | BOLT(1/4-28X0.5-IN) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 13. | 146-0240 | [1] | SWITCH GP-TOGGLE(LOCKING)(HOOD LOCKING) | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 14. | 186-5857 | [1] | PLATE AS-DISC | |
| 15. | 186-5858 | [1] | PLATE(CONTROL) | |
| 16. | 190-6302 | [1] | HARNESS AS-FRONT CHASSIS | |
| | 128-4190 | [1] | TERMINAL AS | |
| | 6H-3586 | [1] | TERMINAL-RING(6-GA TO 8-GA, 1/4-IN SCREW) | |
| | 6V-9023E | | TUBE-HEAT SHRINK(12.7-MM DIA)(4-CM) | |
| | 2L-8074 | [3] | TERMINAL-RING(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 9G-4344 | [1] | TERMINAL-RING(4-GA, 1/2-IN SCREW) | |
| | 9G-4343 | [3] | TERMINAL-RING(4-GA, 1/4-IN SCREW) | |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [1] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 6L-7008 | [1] | STRAP-CABLE | |
| | 2L-8079 | [1] | TERMINAL-RING(14-GA TO 16-GA, 3/8-IN SCREW) | |
| | 2L-8075 | [2] | TERMINAL-RING(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 8N-1521 | [1] | BELL AS-END | |
| | 8N-1540 | [2] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1542 | [1] | PIN-CONNECTOR(10-GA) | |
| | 8N-1548 | [2] | PIN-CONNECTOR(4-GA) | |
| | 9X-6856 | [7] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 7G-7917 | [9] | PLUG-SEAL | |
| | 7G-7918 | [2] | PLUG-SEAL | |
| | 7G-7919 | [2] | PLUG-SEAL | |
| | 8N-1517 | [1] | RECEPTACLE AS-CONNECTOR(25-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS , WEDGE & INTERFACE SEAL) |
| 17. | 193-7317 | [1] | RECEPTACLE AS-AUXILIARY START | |
| | 4N-6579 | [1] | RECEPTACLE AS | |
| | 235-2677 | [1] | TERMINAL-RING | |
| | 235-2678 | [1] | TERMINAL-RING | |
| 18. | 4L-6454 | [4] | BOLT(3/8-16X1-IN) | |
| 19. | 7U-4892 | [2] | SCREW(8-32X0.75-IN) | |
| 20. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 22. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
