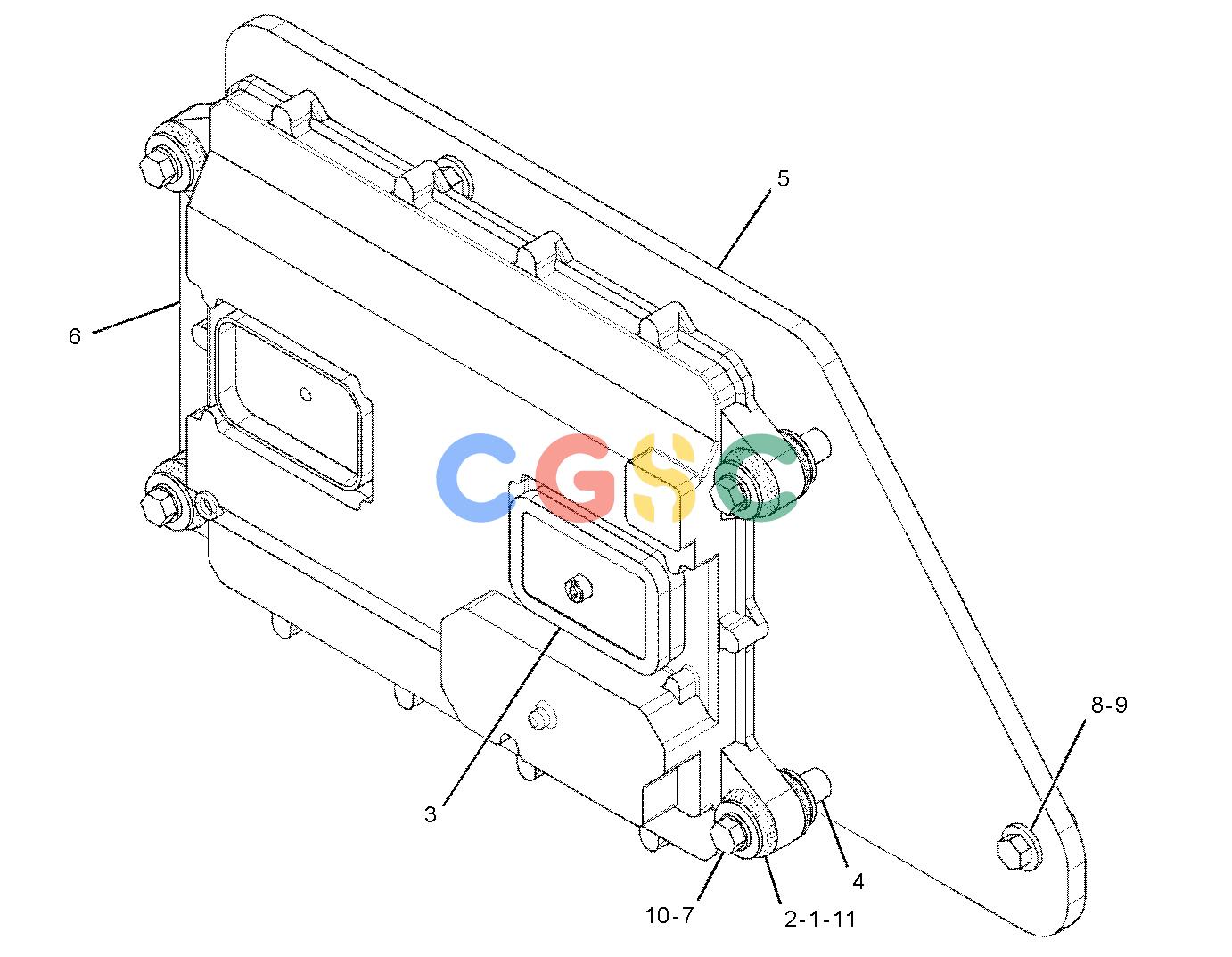

卡特零件查询（735） 240-8855: CONTROL & MTG GP-ENGINE ELEK
广数供应链运营团队, 15 02月, 2025，浏览：
716 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 2. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 3. | 257-4907 | [1] | COVER AS-ACCESS | |
| 4. | 127-1991 | [4] | SPACER(8.2X13X15-MM THK) | |
| 5. | 172-0234 | [1] | PLATE AS | |
| 6. | 209-9588Y | [1] | CONTROL GP-ENGINE ELECTRONIC | |
| 7. | 1D-4539 | [4] | BOLT(5/16-18X2.5-IN) | |
| 8. | 3E-4352 | [3] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 9. | 4B-3388 | [3] | BOLT(5/16-18X1.125-IN) | |
| 10. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 9N-0869 | [8] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
