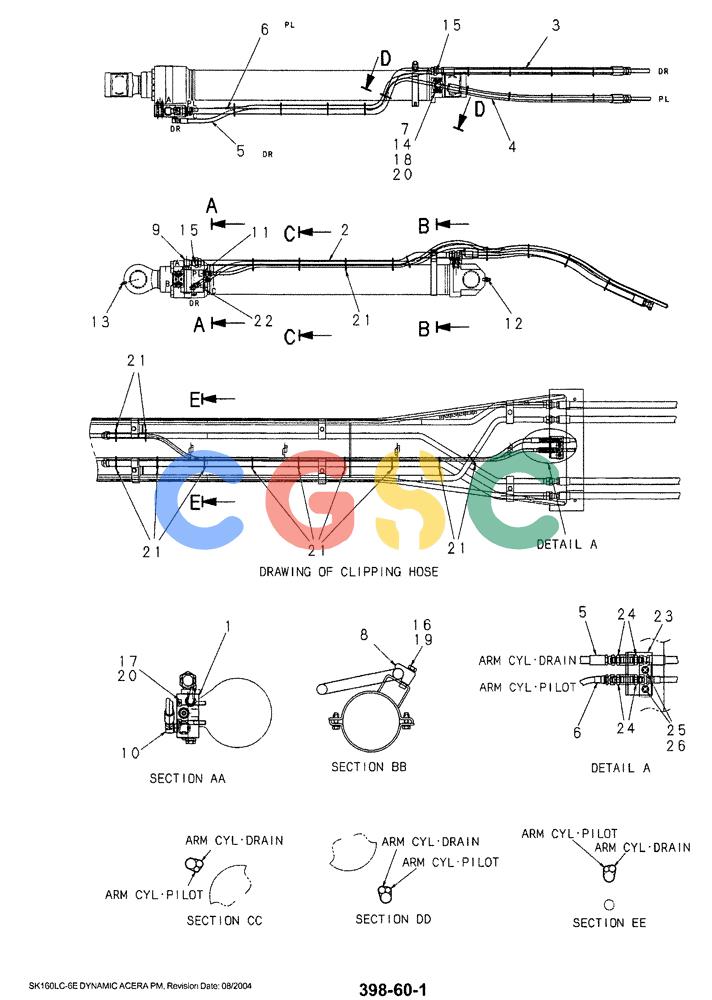

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (04-13[00]) - BOOM HYDRAULIC LINES 5.2M (17ft 1IN) ARM CYL.HYDRAULIC LINES (BOOM & ARM SAFETY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
661 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM42H00047F1 | [1] | LINE | KOBHYDLINES, ARM CYL (BOOM & ARM SAFETY) |
| 1. | YB28V00003F2 | [1] | HYDRAULIC VALVE | KOBVALVE ASSY, HOLDING - See Fig. 04-14[00] |
| 2. | YM42H01036P1 | [1] | HYD TUBE,1386, 207 mm L | KOB |
| 3. | YN42H01934D3 | [1] | HOSE | KOB1100mm Long (43-19/64 in) |
| 4. | ZX30U12110 | [1] | HOSE | KOB |
| 5. | ZX22M06500 | [1] | HOSE | KOB |
| 6. | 2420R537D490 | [1] | HOSE,9.6mm ID x 4900mm L | KOB |
| 7. | ZE13X12000 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 8. | YN43H01097P1 | [1] | CLAMP | KOBSingle -- 58x30x38mm (Ø28mm) |
| 9. | HG33H12012G1 | [1] | HYD CONNECTOR | KOB |
| 10. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 11. | HH25X06006GA | [1] | HYD CONNECTOR | KOB3/8"PFx3/8"PFx37.5mm Long (Incls. O-Ring ZD12P01400) |
| 12. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 13. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 14. | ZD12P02600 | [1] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 15. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 16. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 17. | ZS28C10065 | [4] | SCREW,Hex Socket Head, M10 x 65mm | KOBM10x1.50x65mm |
| 18. | ZS28C10035 | [4] | SCREW,Hex Socket Head, M10 x 35mm | KOBScrew -- M10x1.50x35mm |
| 19. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 20. | ZW26K10000 | [8] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| 21. | PY01P01043D3 | [24] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
