神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-07[00]) - VALVE ASSY, OVERLOAD (YN22V00029F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
580 次

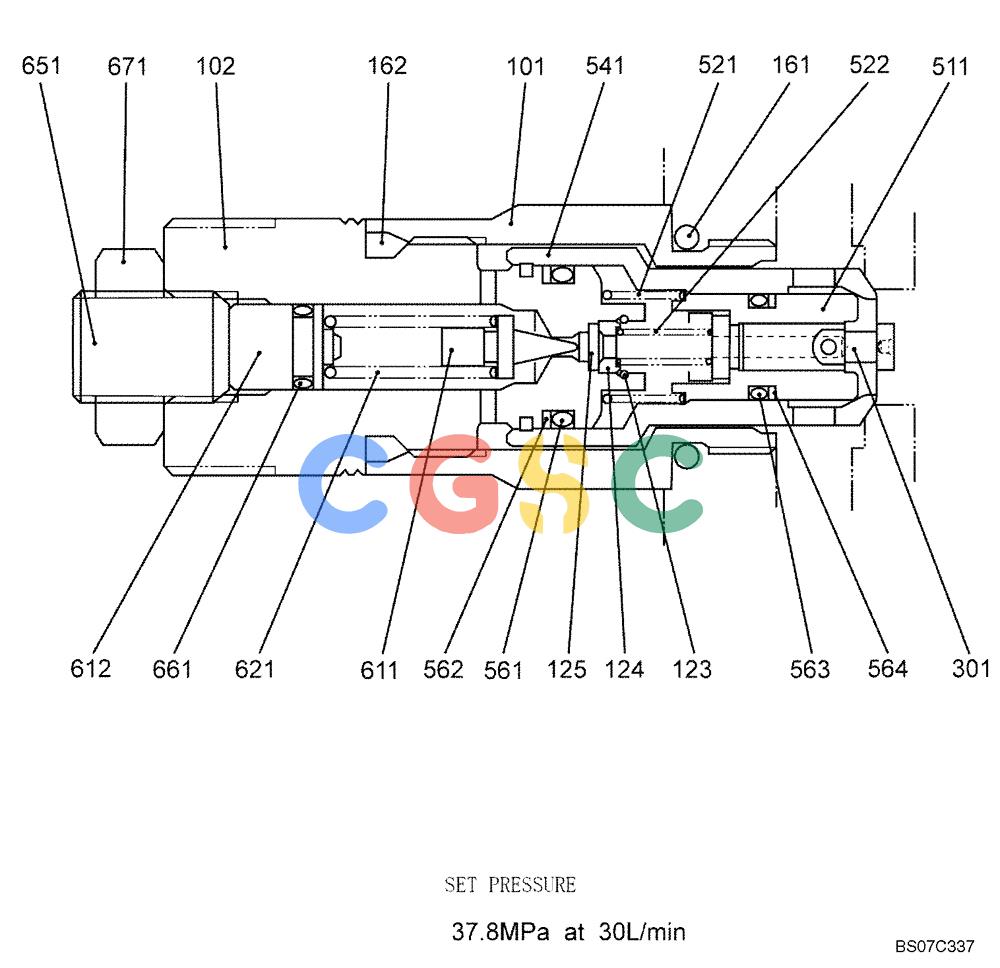

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00029F2 | [1] | HYDRAULIC VALVE | SMAssembly, Overload, Start Serial: 2 |
| 101. | NA | [1] | NOT SERVICED | FORBody |
| 102. | NA | [1] | NOT SERVICED | FORPlug |
| 123. | NA | [1] | NOT SERVICED | FORRing |
| 124. | NA | [1] | NOT SERVICED | FORStop |
| 125. | NA | [1] | NOT SERVICED | FORFilter |
| 161. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 162. | NA | [1] | NOT SERVICED | FORO-Ring |
| 301. | NA | [1] | NOT SERVICED | FORPiston |
| 511. | NA | [1] | NOT SERVICED | FORPlunger |
| 521. | NA | [1] | NOT SERVICED | FORSpring |
| 522. | NA | [1] | NOT SERVICED | FORSpring |
| 541. | NA | [1] | NOT SERVICED | FORSeat |
| 561. | NA | [1] | NOT SERVICED | FORO-Ring |
| 562. | NA | [1] | NOT SERVICED | FORRing, Back-Up |
| 563. | NA | [1] | NOT SERVICED | FORO-Ring |
| 564. | NA | [1] | NOT SERVICED | FORRing, Back-Up |
| 611. | NA | [1] | NOT SERVICED | FORPoppet |
| 612. | NA | [1] | NOT SERVICED | FORSeat, Spring |
| 621. | NA | [1] | NOT SERVICED | FORSpring |
| 651. | NA | [1] | NOT SERVICED | FORScrew, Adjuster |
| 661. | NA | [1] | NOT SERVICED | FORO-Ring |
| 671. | NA | [1] | NOT SERVICED | FORNut |
