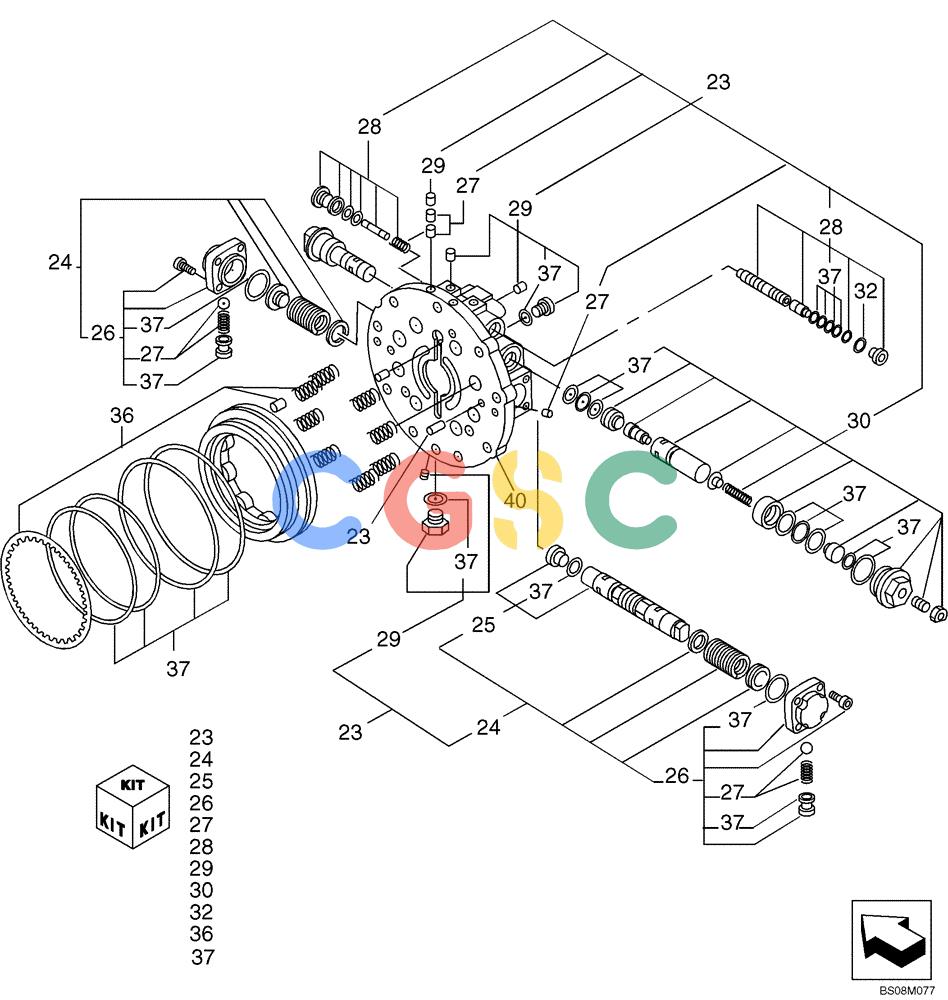

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-11[03]) - MOTOR ASSEMBLY (PROPEL) (YM15V00007F1), PAGE 3 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
203 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM15V00007F1 | [1] | HYDRAULIC MOTOR | KOBAssembly, Propel, Page 3 of 3 |
| . . | 87357868 | [1] | HYDRAULIC MOTOR,87.3CC | SM |
| 23. | 72211195 | [1] | KIT | SMKit |
| 24. | 71471062 | [1] | KIT | SMKit |
| 25. | 71471063 | [1] | KIT | SMKit |
| 26. | 71471064 | [1] | KIT | SMKit |
| 27. | 72211196 | [1] | KIT | SMKit |
| 28. | 72211197 | [1] | KIT | SMKit |
| 29. | 72211198 | [1] | KIT | SMKit |
| 30. | 72211199 | [1] | KIT | SMKit |
| 32. | 72211200 | [1] | KIT | SMKit |
| 36. | 71470984 | [1] | KIT | SMKit |
| 37. | 72216462 | [1] | GASKET KIT | SMKit, Seal |
| 40. | NSS | [1] | NOT SOLD SEPARAT | CONPlate |
