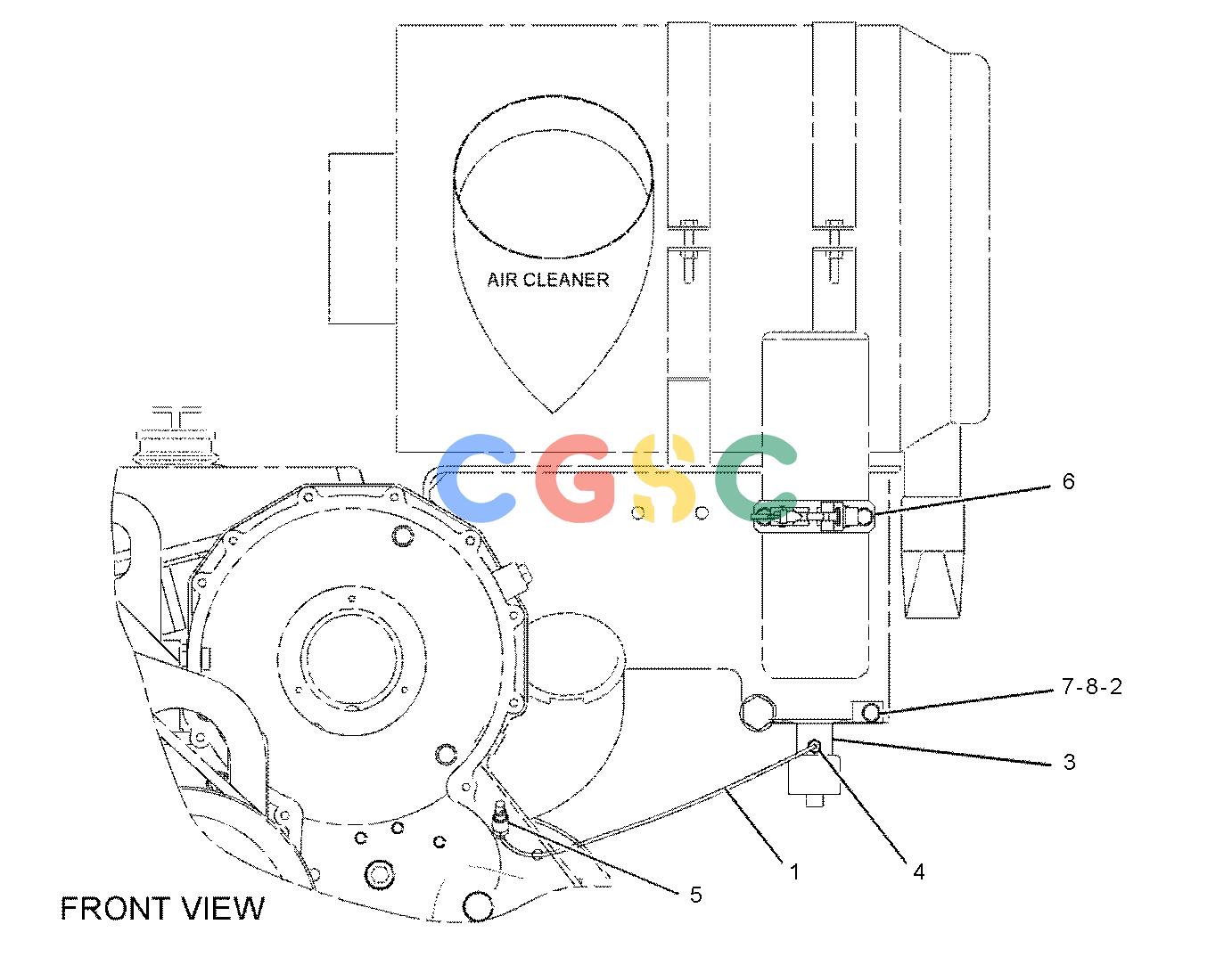

卡特零件查询（735） 152-6957: STARTING AID GP-ETHER
广数供应链运营团队, 15 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-4223 | [1] | TUBE | |
| 2. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 3. | 3E-6333 | [1] | VALVE AS-SOLENOID(24-VOLT)(STARTING AID) | |
| | 7N-9801 | [1] | GASKET | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 4. | 5P-2948 | [1] | FITTING AS | |
| | 4K-9821 | [1] | SLEEVE | |
| | 4K-9822 | [1] | NUT(5/16-24-THD) | |
| 5. | 6N-7672 | [1] | ATOMIZER-ETHER | |
| 6. | 7N-2059 | [1] | CLAMP AS(CYLINDER) | |
| 7. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 8. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| | | | |
| | 7N-0296AF | [1] | CYLINDER AS-ETHER | |
| | | | (MUST BE PROCURED LOCALLY FROM YOUR CATERPILLAR DEALER) |
| | A | | NOT PART OF THIS GROUP |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
