神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-17[00]) - VALVE ASSY, SOLENOID (YN35V00049F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
175 次

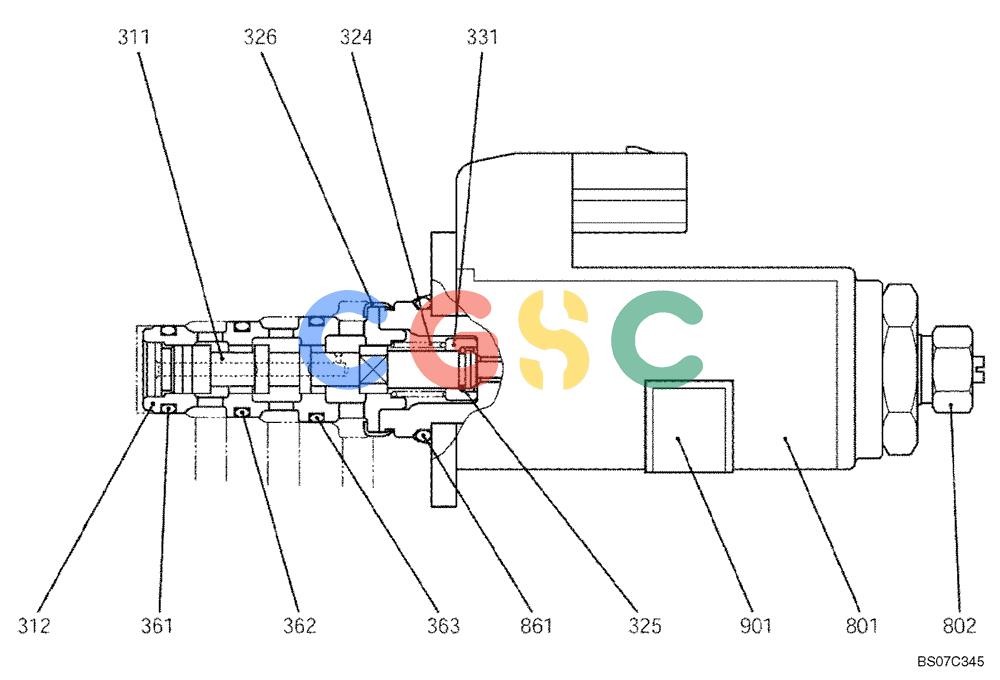

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00049F1 | [1] | SOLENOID VALVE | KOBSolenoid |
| 311. | NA | [1] | NOT SERVICED | FORSpool |
| 312. | NA | [1] | NOT SERVICED | FORSleeve |
| 324. | NA | [1] | NOT SERVICED | FORSpring |
| 325. | NA | [1] | NOT SERVICED | FORRing |
| 326. | NA | [1] | NOT SERVICED | FORRing, Retaining |
| 331. | NA | [1] | NOT SERVICED | FORSeat, Spring |
| 361. | YN35V00004S361 | [1] | O-RING | KOB |
| 362. | YN35V00004S362 | [1] | O-RING | KOB |
| 363. | YN35V00004S363 | [1] | O-RING | KOB |
| 801. | NA | [1] | NOT SERVICED | FORSolenoid |
| 802. | YN35V00018S802 | [1] | NUT | KOB |
| 861. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 901. | NA | [1] | NOT SERVICED | FORName Plate |
