神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-40[00]) - LAMP MOUNTING - BOOM (YN80E00026F1 & YM15E00004F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
599 次

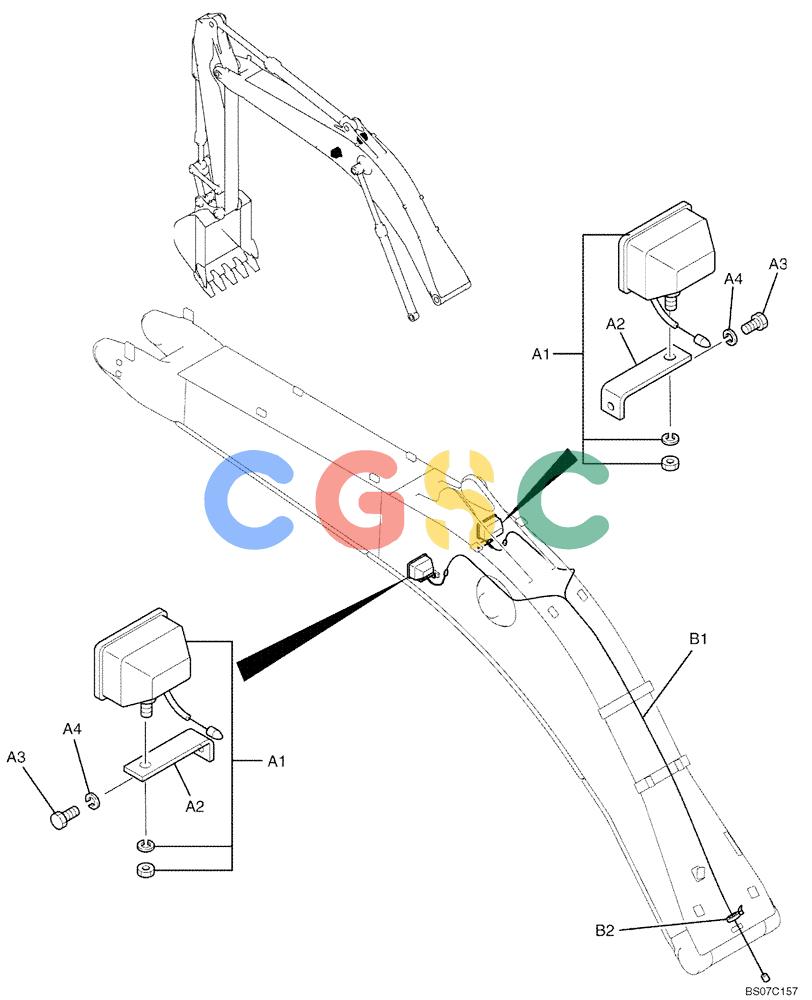

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | 2456R442F1 | [2] | LIGHT | KOBWork Light Assembly |
| . . | 78856 | [1] | BULB | HITSealed Beam, (Part of 2456R442F1), Not Shown |
| A2. | 2416T13056 | [2] | BRACKET | KOB |
| A3. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| A4. | 2418R323D11 | [2] | WASHER | KOBStar -- ID 10 x OD 18 x Th 0.9mm |
| B1. | YM15E01005P1 | [1] | HARNESS | KOB |
| B2. | PY01P01043D7 | [1] | CABLE TIE,4.80mm W x 445mm L | KOBWire Ties -- 445mm Long |
