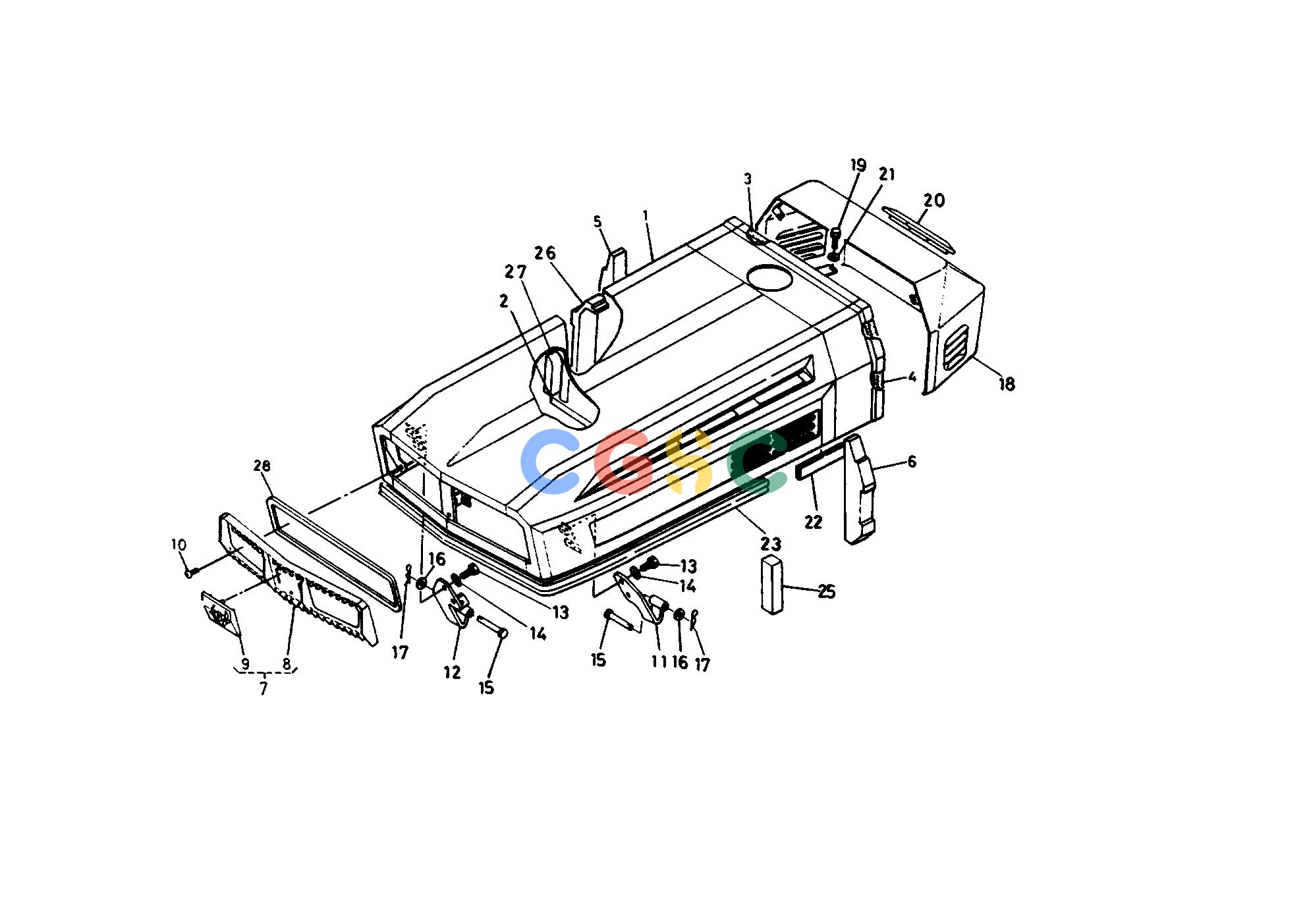

久保田零件查询T06900 HOOD AND PANEL ## S.No.;>=11643 HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
891 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780054106
|
[1] |
COMP HOOD
|
14.9600(lbs); 6.800
|
| 002. |
6711154120
|
[1] |
TAPE
|
0.0220(lbs); 0.010
|
| 003. |
6780054840
|
[1] |
TAPE
|
0.0176(lbs); 0.008
|
| 004. |
6721155520
|
[2] |
TAPE 1
|
0.0220(lbs); 0.010
|
| 004. |
H672055520
|
[2] |
TAPE 1
|
0.0220(lbs); 0.010
|
| 005. |
6780054130
|
[1] |
BLOCK 1
|
0.0264(lbs); 0.012
|
| 006. |
6780054140
|
[2] |
BLOCK 2
|
0.0110(lbs); 0.005
|
| 007. |
6740154200
|
[1] |
ASSY GRILLE LIGHT
|
0.5720(lbs); 0.260
|
| 008. |
6740154210
|
[1] |
GRILLE LIGHT
|
0.5500(lbs); 0.250
|
| 009. |
6711154240
|
[1] |
MASCOT
|
0.0440(lbs); 0.020
|
| 010. |
0371450614
|
[6] |
SCREW
|
0.0044(lbs); 0.002
|
| 011. |
6751154260
|
[1] |
HOOK LH
|
0.0000(lbs); 0.000
|
| 012. |
6780054270
|
[1] |
HOOK RH
|
0.0000(lbs); 0.000
|
| 013. |
0112051020
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 014. |
0401350100
|
[4] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 015. |
0512250855
|
[2] |
PIN JOINT
|
0.0484(lbs); 0.022
|
| 016. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 017. |
0551550800
|
[2] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 018. |
6780054962
|
[1] |
PANEL
|
4.1800(lbs); 1.900
|
| 019. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 020. |
6780054950
|
[1] |
COVER
|
0.1210(lbs); 0.055
|
| 021. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 022. |
6780054250
|
[1] |
COVER
|
0.0154(lbs); 0.007
|
| 023. |
6630154290
|
[1] |
TRIM
|
0.2860(lbs); 0.130
|
| 024. |
6740154220
|
[1] |
GASKET
|
0.0594(lbs); 0.027
|
| 025. |
6780054110
|
[1] |
BLOCK
|
0.0110(lbs); 0.005
|
| 026. |
6780054180
|
[1] |
BLOCK 6
|
0.0220(lbs); 0.010
|
| 027. |
6780054190
|
[1] |
BLOCK 7
|
0.0044(lbs); 0.002
|
