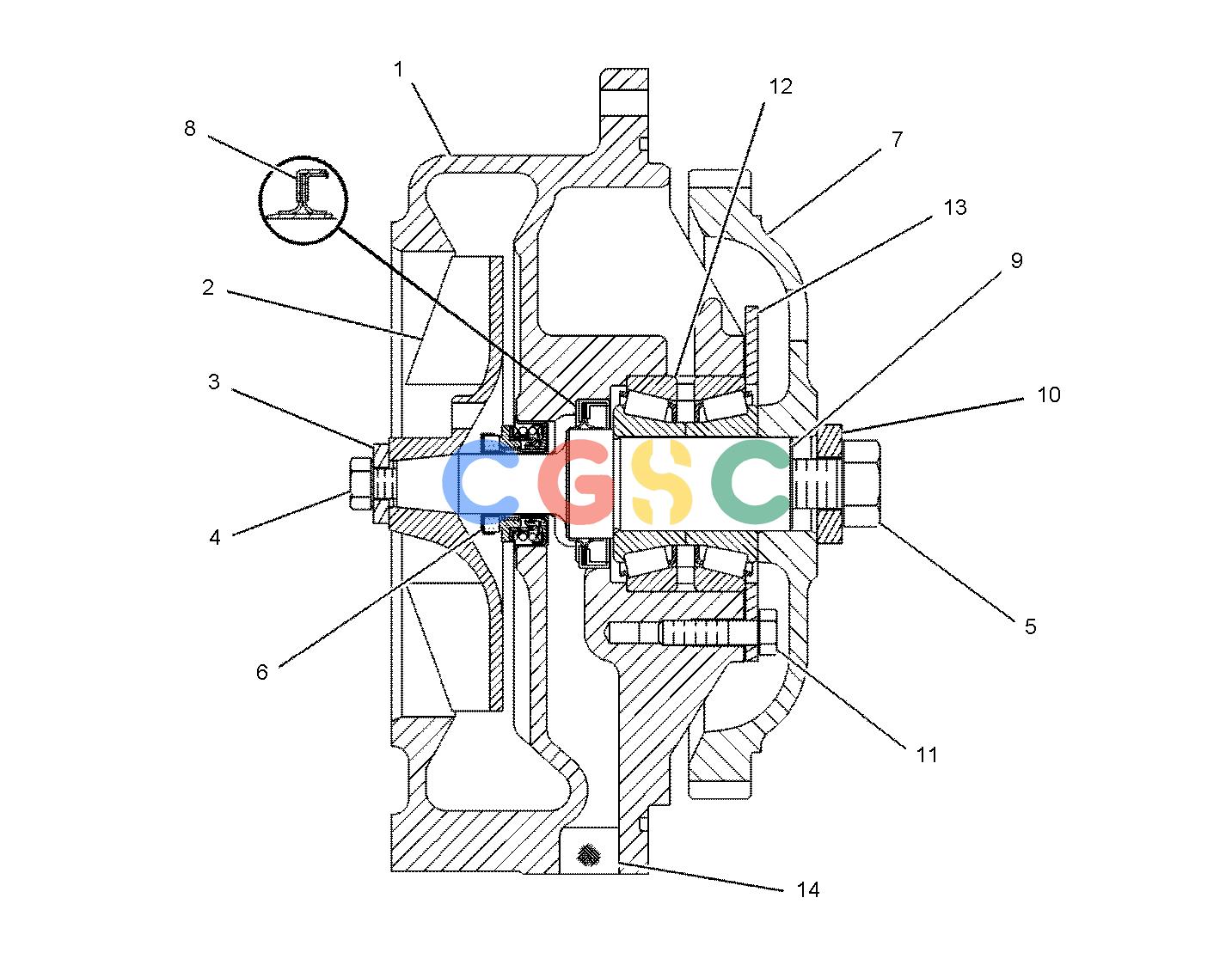

卡特零件查询（735） 135-4925: PUMP GP-WATER
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 135-4918 | [1] | HOUSING-WATER PUMP | |
| 2. | 129-9907 | [1] | IMPELLER-PUMP | |
| 3. | 9M-6527W | [1] | WASHER-HARD(10.2X25.5X5-MM THK) | |
| 4. | 0S-1591 | [1] | BOLT(3/8-16X1.5-IN) | |
| 5. | 1A-1135 | [1] | BOLT(5/8-11X2-IN) | |
| 6. | 128-0317W | [1] | SEAL GP(WATER) | |
| 7. | 6I-3643 | [1] | GEAR(74-TEETH) | |
| 8. | 153-1256W | [1] | SEAL-LIP TYPE | |
| 9. | 135-4928W | [1] | SHAFT-WATER PUMP | |
| 10. | 5S-0581W | [1] | WASHER-HARD(17X38X8-MM THK) | |
| 11. | 1B-7182 | [4] | BOLT(5/16-18X1.25-IN) | |
| 12. | 108-7930W | [1] | BEARING AS-ROLLER | |
| 13. | 136-1107W | [1] | RETAINER | |
| 14. | 136-3742W | [1] | FILTER | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 128-2922 | [1] | KIT-GASKET(WATER PUMP) | |
| | | | (INCLUDES GASKETS & SEAL-O-RINGS) |
| | 377-7037W | [1] | KIT-WATER PUMP | |
| | W | | KIT(S) MARKED W INCLUDES PART(S) MARKED W |
