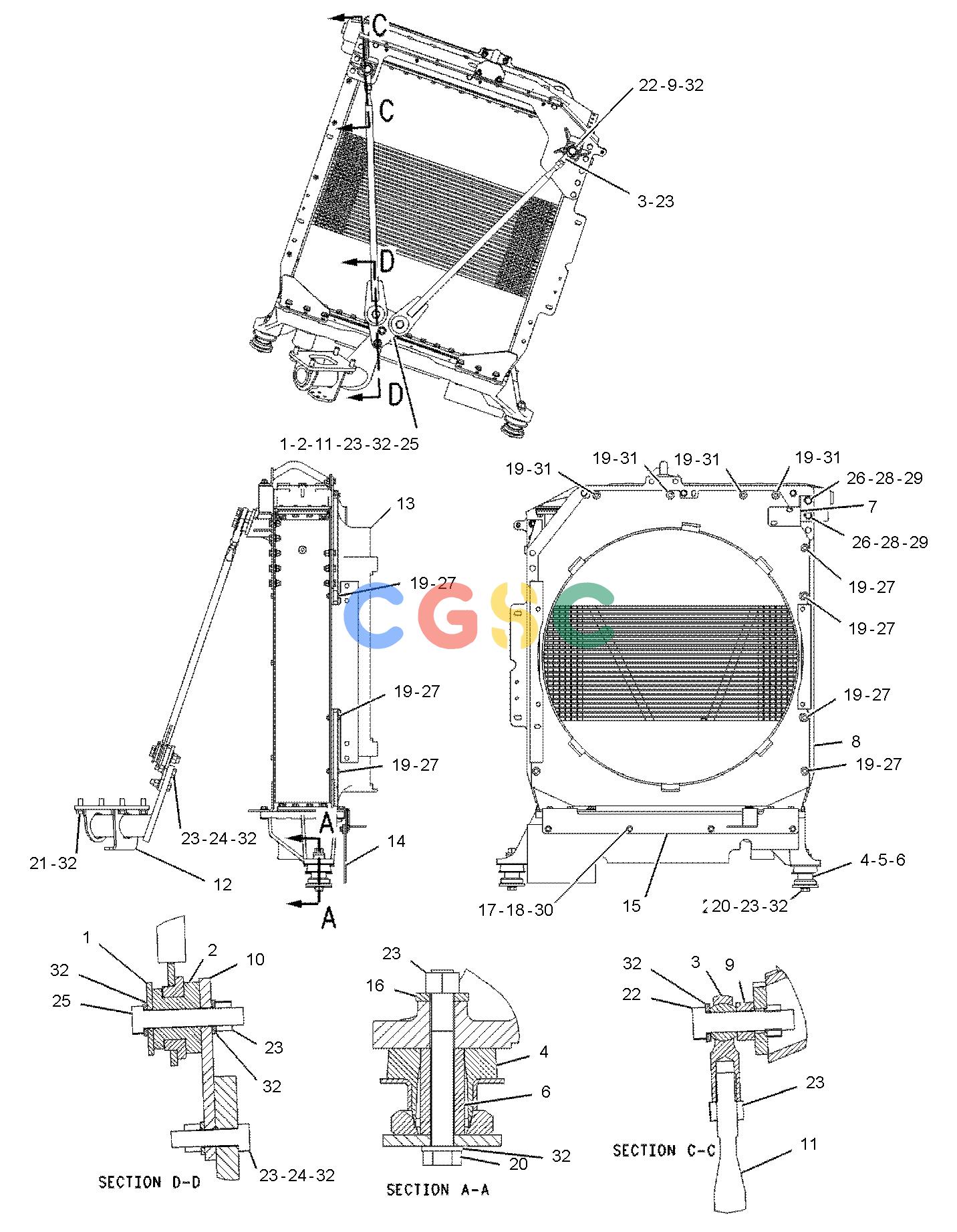

卡特零件查询（735） 185-1350: RADIATOR GP
广数供应链运营团队, 15 02月, 2025，浏览：
982 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7U-8704 | [2] | WASHER(17X65X5-MM THK) | |
| 2. | 8G-0841 | [2] | MOUNT AS | |
| 3. | 9R-4760 | [2] | ROD END | |
| 4. | 9W-9915 | [2] | MOUNT AS | |
| 5. | 9W-9952 | [2] | WASHER(16.75X86X8-MM THK) | |
| 6. | 9W-9953 | [2] | SLEEVE | |
| 7. | 174-6793 | [1] | BRACKET | |
| 8. | 185-1351Y | [1] | RADIATOR GP | |
| 9. | 188-6084 | [2] | SPACER(16.5X30X3.2-MM THK) | |
| 10. | 188-6399 | [1] | PLATE | |
| 11. | 189-3545 | [2] | BAR AS | |
| | | | (EACH INCLUDES) |
| | 6U-2097 | [1] | BUSHING | |
| 12. | 192-3640 | [1] | BRACKET AS-MOUNTING | |
| 13. | 193-3794 | [1] | SHROUD-FAN | |
| 14. | 209-9104 | [1] | STRIP-RUBBER | |
| 15. | 209-9105 | [1] | PLATE-MOUNTING | |
| 16. | 3E-9411 | [2] | WASHER-HARD(17.5X38X6-MM THK) | |
| 17. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 18. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 19. | 7X-0579 | [11] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 20. | 7X-2475M | [2] | BOLT(M16X2X130-MM) | |
| 21. | 7X-2553M | [4] | BOLT(M16X2X40-MM) | |
| 22. | 7X-2554M | [2] | BOLT(M16X2X70-MM) | |
| 23. | 8T-4132M | [8] | NUT(M16X2-THD) | |
| 24. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 25. | 8T-4175M | [2] | BOLT(M16X2X90-MM) | |
| 26. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 27. | 8T-4197M | [7] | BOLT(M8X1.25X40-MM) | |
| 28. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 29. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 30. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 31. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 32. | 9X-8257 | [14] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
