神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-03[00]) - ENGINE OIL SUMP (101230830002) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
966 次

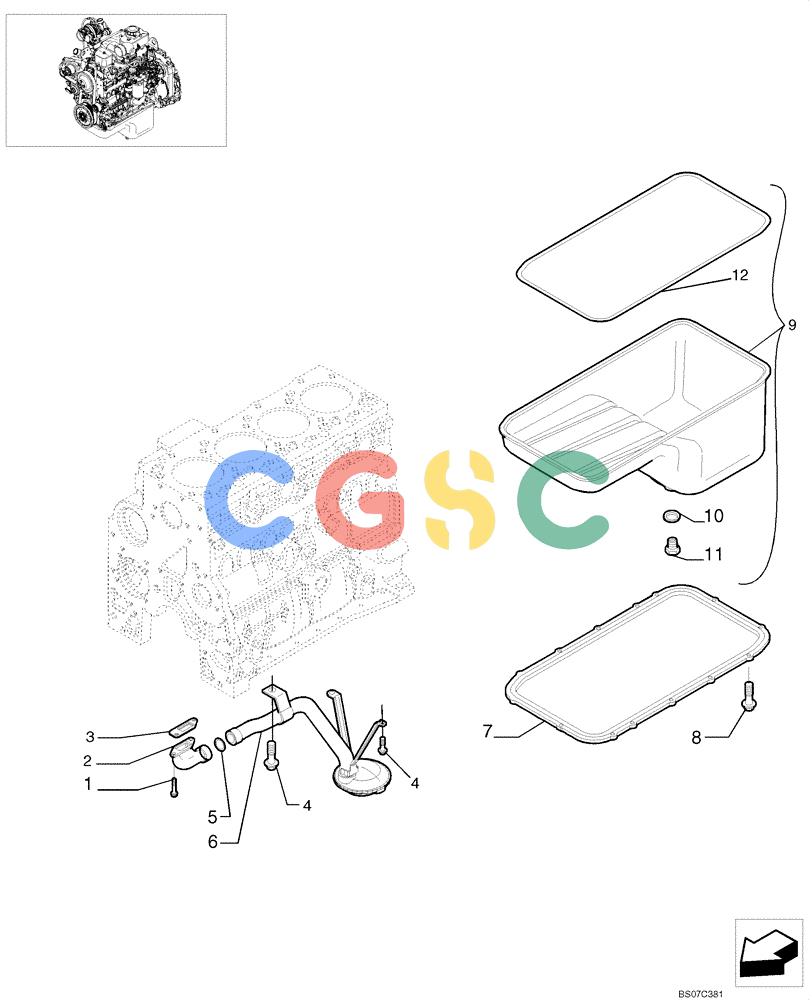

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852234 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 2. | 2852238 | [1] | ELBOW | TOR Superseded by part number: 504064052 |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOR |
| 4. | 4895291 | [3] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 5. | 2852237 | [1] | SEALING RING | TOR Superseded by part number: 14457981 |
| 6. | 2853397 | [1] | SUCTION PIPE | TOR Superseded by part number: |
| 7. | 4897876 | [1] | SPACER | TOR |
| 8. | 4899091 | [14] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 9. | 2852205 | [1] | ENGINE OIL PAN | TORIncls. Refs. 10 - 12 Superseded by part number: 500388253 |
| 10. | 2853728 | [1] | O-RING,M23.47 ID x 2.62 Thk | TOROD 28.71 Superseded by part number: 14457780 |
| 11. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 11. | 2853894 | [1] | DRAIN PLUG | TORQuick Drain Superseded by part number: 504068028 |
| 12. | 4897877 | [1] | OIL PAN GASKET SET | TOR |
| . . | 2853363 | [1] | DRAIN | TORQuick Drain Kit (Incl 2852666 & 2853364) Superseded by part number: 504040826 |
| . . | 2853364 | [1] | TUBE | SMQuick Drain Tube with Fitting |
