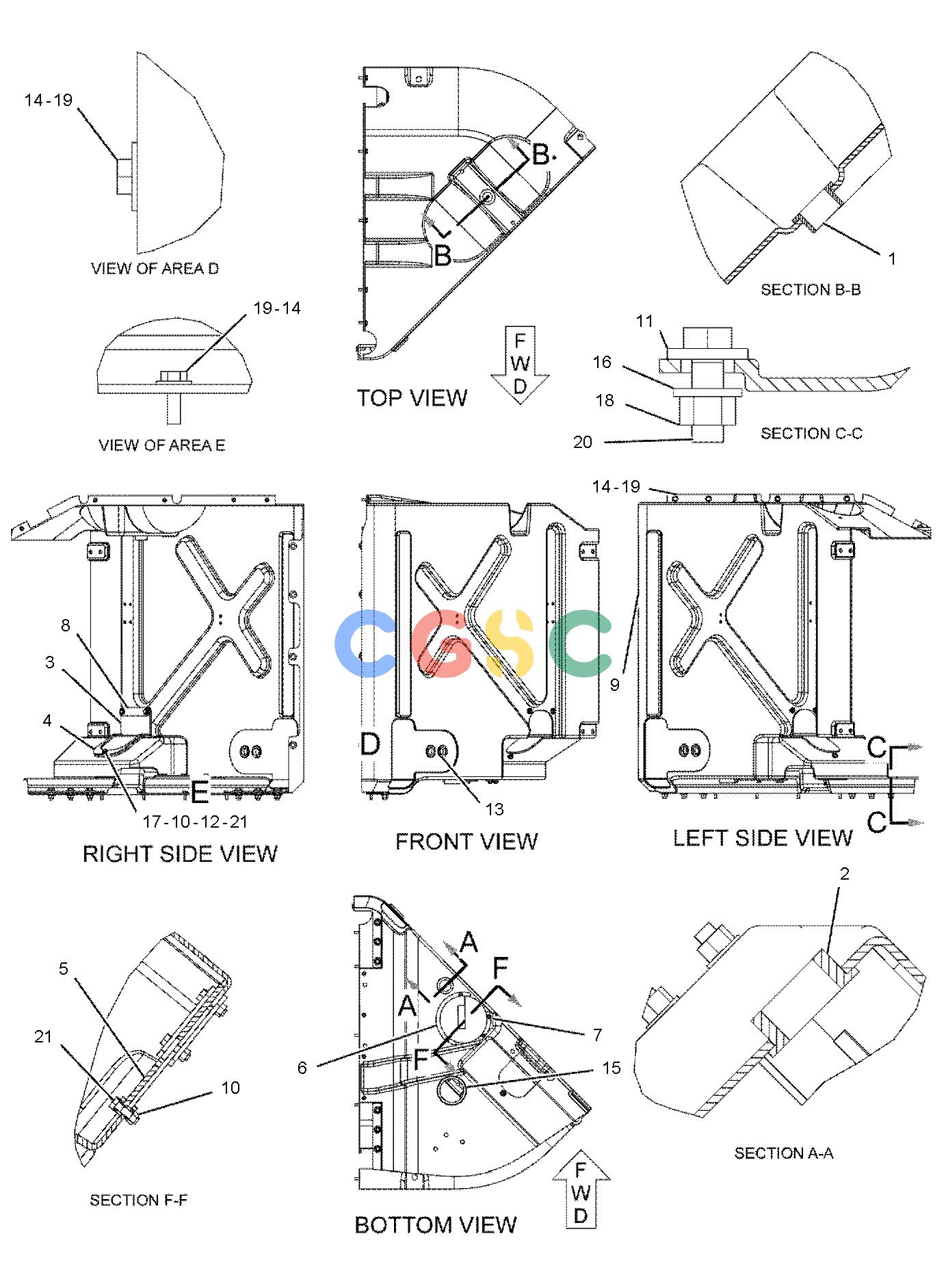

卡特零件查询（735） 185-3941: SHROUD GP-RADIATOR
广数供应链运营团队, 15 02月, 2025，浏览：
639 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 176-6279 | [1] | BUSHING-RUBBER | |
| 2. | 176-6404 | [1] | BUSHING-RUBBER | |
| 3. | 209-6148 | [1] | COVER | |
| 4. | 209-6149 | [1] | PLATE | |
| 5. | 209-7533 | [1] | COVER | |
| 6. | 209-7534 | [2] | PLATE | |
| 7. | 209-7535 | [2] | PLATE | |
| 8. | 212-7961 | [1] | PLATE | |
| 9. | 185-5673 | [1] | DUCT | |
| 10. | 5C-7261M | [7] | NUT(M8X1.25-THD) | |
| 11. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 12. | 5P-4116 | [3] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 13. | 6P-6641 | [2] | GROMMET | |
| 14. | 7X-0579 | [13] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 15. | 7Y-3196 | [1] | GROMMET | |
| 16. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 19. | 8T-4908M | [13] | BOLT(M8X1.25X25-MM) | |
| 20. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| 21. | 8T-7547M | [7] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
